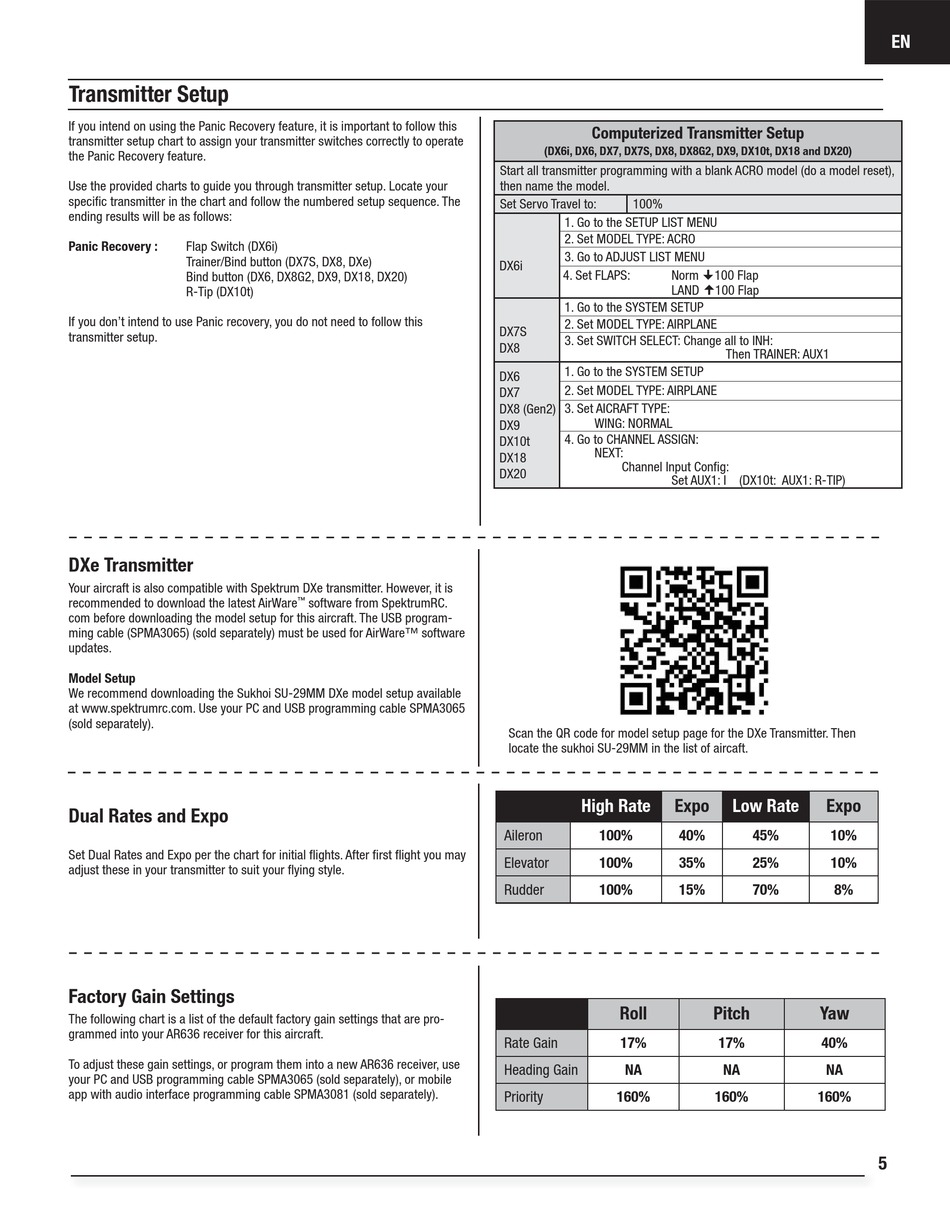

Transmitter Setup

If you intend on using the Panic Recovery feature, it is important to follow this
transmitter setup chart to assign your transmitter switches correctly to operate
the Panic Recovery feature.
Use the provided charts to guide you through transmitter setup. Locate your
specifi c transmitter in the chart and follow the numbered setup sequence. The
ending results will be as follows:
Panic Recovery : Flap Switch (DX6i)
Trainer/Bind button (DX7S, DX8, DXe)
Bind button (DX6, DX8G2, DX9, DX18, DX20)
R-Tip (DX10t)
If you don't intend to use Panic recovery, you do not need to follow this
transmitter setup.
DXe Transmitter
Your aircraft is also compatible with Spektrum DXe transmitter. However, it is
recommended to download the latest AirWare
com before downloading the model setup for this aircraft. The USB program-
ming cable (SPMA3065) (sold separately) must be used for AirWare™ software
updates.
Model Setup
We recommend downloading the Sukhoi SU-29MM DXe model setup available
at www.spektrumrc.com. Use your PC and USB programming cable SPMA3065
(sold separately).
Dual Rates and Expo
Set Dual Rates and Expo per the chart for initial fl ights. After fi rst fl ight you may
adjust these in your transmitter to suit your fl ying style.
Factory Gain Settings
The following chart is a list of the default factory gain settings that are pro-
grammed into your AR636 receiver for this aircraft.
To adjust these gain settings, or program them into a new AR636 receiver, use
your PC and USB programming cable SPMA3065 (sold separately), or mobile
app with audio interface programming cable SPMA3081 (sold separately).
™
software from SpektrumRC.
Computerized Transmitter Setup
(DX6i, DX6, DX7, DX7S, DX8, DX8G2, DX9, DX10t, DX18 and DX20)
Start all transmitter programming with a blank ACRO model (do a model reset),
then name the model.
Set Servo Travel to: 100%
1. Go to the SETUP LIST MENU
2. Set MODEL TYPE: ACRO
3. Go to ADJUST LIST MENU
DX6i
Norm 100 Flap
4. Set FLAPS:
LAND 100 Flap
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
DX7S
3. Set SWITCH SELECT: Change all to INH:
DX8
1. Go to the SYSTEM SETUP
DX6
2. Set MODEL TYPE: AIRPLANE
DX7
3. Set AICRAFT TYPE:
DX8 (Gen2)
WING: NORMAL
DX9
4. Go to CHANNEL ASSIGN:
DX10t
NEXT:
DX18
Channel Input Confi g:
DX20
Set AUX1: I (DX10t: AUX1: R-TIP)
Scan the QR code for model setup page for the DXe Transmitter. Then
locate the sukhoi SU-29MM in the list of aircaft.
High Rate Expo
Aileron 100% 40%
Elevator 100% 35%
Rudder 100% 15%
Roll
Rate Gain 17%
Heading Gain NA
Priority 160%
EN
Then TRAINER: AUX1
Low Rate Expo
45% 10%
25% 10%
70% 8%
Pitch Yaw
17% 40%
NA NA
160% 160%
