4-Port USB2.0 Metal Hub with Screw Lock
1. Introduction
Thank you for purchasing this high-speed 4-port USB2.0 hub. It provides
an ideal solution to expand 4 USB2.0 ports from one single USB2.0 host
port. It provides metal case with Screw Lock feature for upstream and
downstream
performance for most of the applications.
Features:
Compliant with USB Specification Revision 2.0
Rigid and Wall-mountable Metal Case
Supports Screw Lock Mechanism for Upstream and Downstream
Connectors to Enhance Reliability
Supports High-speed and or Full-speed Packet
Protocol Sequencer for Endpoint 0/1
Provides 7 Downstream Facing Ports
Supports 480Mbps, 12Mbps and 1.5Mbps Speed
Supports Self-powered and Bus-powered Mode

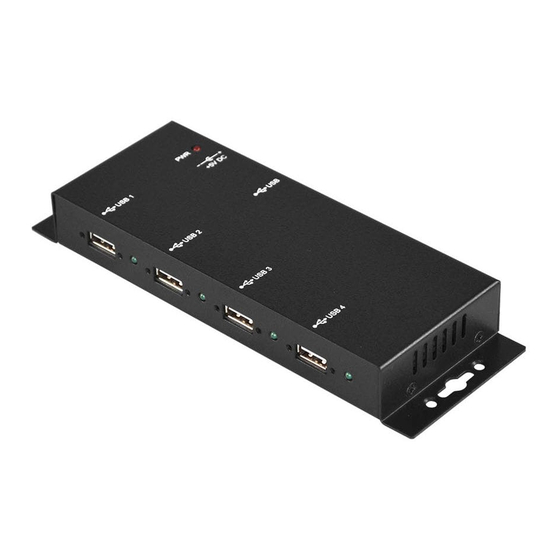

2. Connector Layout
Power LED
Port #1
Downstream USB2.0 Ports
Mechanism
Installation Guide
USB
ports.
It
+5V DC Jack, w/ Screw Lock
provides
excellent
USB2.0 Connector (upstream
port, w/ Screw Lock)
Port#4
1
reliability
and
Advertisement
Table of Contents
Related Manuals for ANTAIRA USB-HUB4K
Summary of Contents for ANTAIRA USB-HUB4K
-
Page 1: Installation Guide

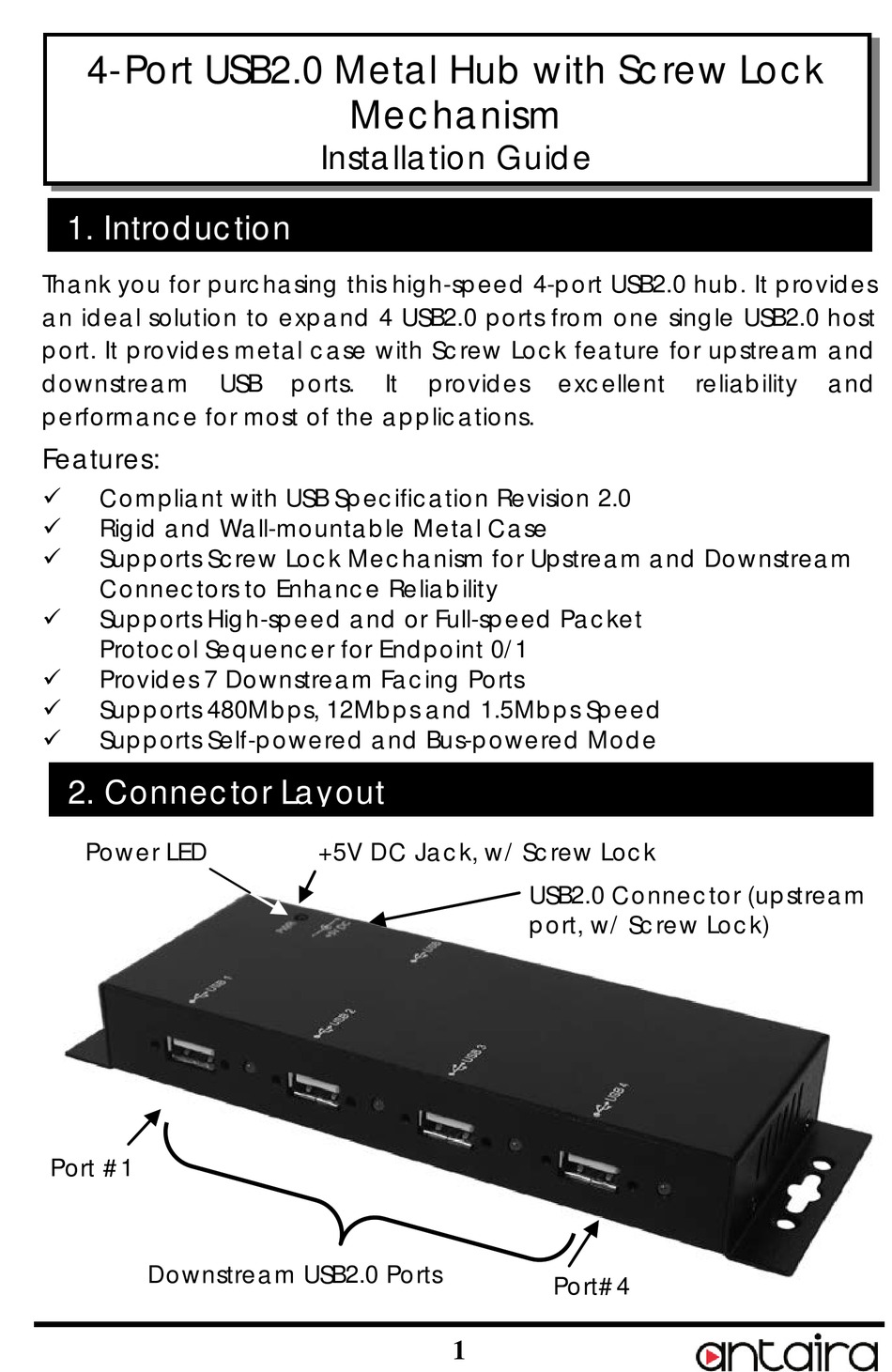

4-Port USB2.0 Metal Hub with Screw Lock Mechanism Installation Guide 1. Introduction Thank you for purchasing this high-speed 4-port USB2.0 hub. It provides an ideal solution to expand 4 USB2.0 ports from one single USB2.0 host port. It provides metal case with Screw Lock feature for upstream and downstream ports. - Page 2 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case Back side Connection: Type-B USB2.0 +5V DC Jack Upstream Cable (AC Adapter w/ Screw Lock) (w/ Screw Lock) Front Side Connection: Downstream USB2.0 Port w/ Screw Lock Cable +5V DC Jack Power Connector (w/ Screw Lock): A DC5V AC ...
- Page 3 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case USB2.0 Upstream Connector (w/ Screw Lock): Type-B connector from upstream USB2.0 port. It is connected from host or another USB2.0 hub. The connector is compatible with either non-Screw-Lock or Screw-Lock type cables. USB2.0 Downstream Connectors (w/ Screw Lock): There are ...
-
Page 4: Operating Humidity
4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case 4. Checking the Hub Installation To check the USB hub installation in Windows device manager, please follow the following steps: Click Start Click Control Panel Click System Click Device Manager button Double click Universal Serial Bus Controller Double click Generic USB Hub, the message will show that this device is working properly.
