- Page 1 Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 LNP-1002G-SFP-24 Series 10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switches 8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot; 12~36VDC User Manual Version 1.0...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit Unmanaged Ethernet Switches User Manual Version 1.0 (August 2014) This manual supports the following models: LNP-1002G-SFP-24 LNP-1002G-SFP-24-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 Table of Contents 1. Overview ..............1 1.1 Key Features ............ 1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions ........3 2.2 Front Panel ............ -
Page 5: Overview
In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-1002G-SFP-24 series meets IEEE 802.3at (30 Watts per port @ 53VDC), supports 12V ~ 36VDC power inputs and includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. -
Page 6: Package Contents
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 1.2 Package Contents 1 - LNP-1002G-SFP-24 (T): 10-port industrial PoE+ gigabit unmanaged Ethernet switch, with 8*10/100/1000Tx (30W/Port), and 2*100/1000 SFP slots; 12~36VDC 1 - User manual 1 - Product CD ... -
Page 7: Hardware Description
LNP-1002G-SFP-24 Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LNP-1002G-SFP-24 series: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (30W/Port), and 2*100/1000SFP slots; 12~36VDC. (W x D x H) is 46mm x 99mm x 142mm Figure 2.1... -
Page 8: Front Panel

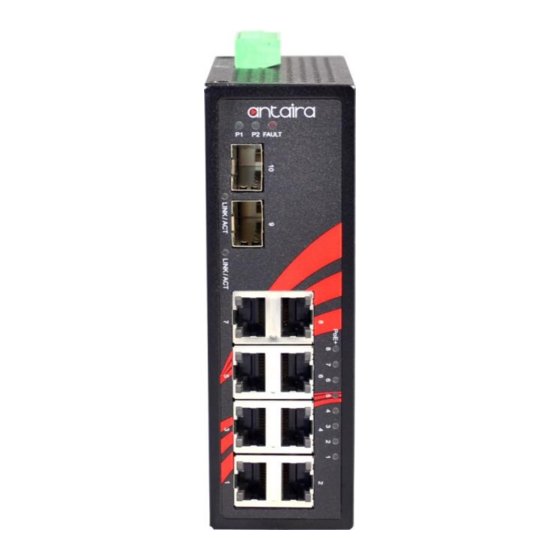

Figure 2.2 The Front Panel of LNP-1002G-SFP-24 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-1002G-SFP-24 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~36VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. - Page 10 Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 RJ-45 Pin Assignments (Table 2.2) Pin Number Assignment Table 2.2 RJ45 Pin Assignments “+” and “-” signs represent the polarity of the wires that make up each wire pair. Note All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation.
- Page 11 Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs. Figure 2.6 RJ45 Ethernet Port Pin Outs Figure 2.7 Figure 2.8 Straight-Through Cable Schematic Crossover Cable Schematic...
-
Page 12: Cabling
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. - Page 13 Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.11. Figure 2.11 LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: 1.
-
Page 14: Wiring The Power Inputs
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 2.7 Wiring the Power Inputs Please follow below steps to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.14. -
Page 15: Wiring The Fault Alarm Contact
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. -
Page 16: Mounting Installation
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. - Page 17 Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
-
Page 18: Wall Mounting
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 19: Hardware Installation
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LNP-1002G-SFP-24 series: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (30W/Port), and 2*100/1000 SFP slots; 12~36VDC. Installation Steps 1. -
Page 20: Network Application
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Industrial PoE Ethernet Switch Application Reference... -
Page 21: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 22: Technical Specification
Antaira Industrial Ethernet Switches LNP-1002G-SFP-24 Series User Manual V1.0 7. Technical Specification Table 7.1 has the technical specifications for Antaira’s LNP-1002G-SFP-24 series: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (30W/Port), and 2*100/1000 SFP slots; 12~36VDC. IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet... - Page 23 Antaira Customer Service and Support (Antaira US Headquarters) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
