with Screw Lock Mechanism

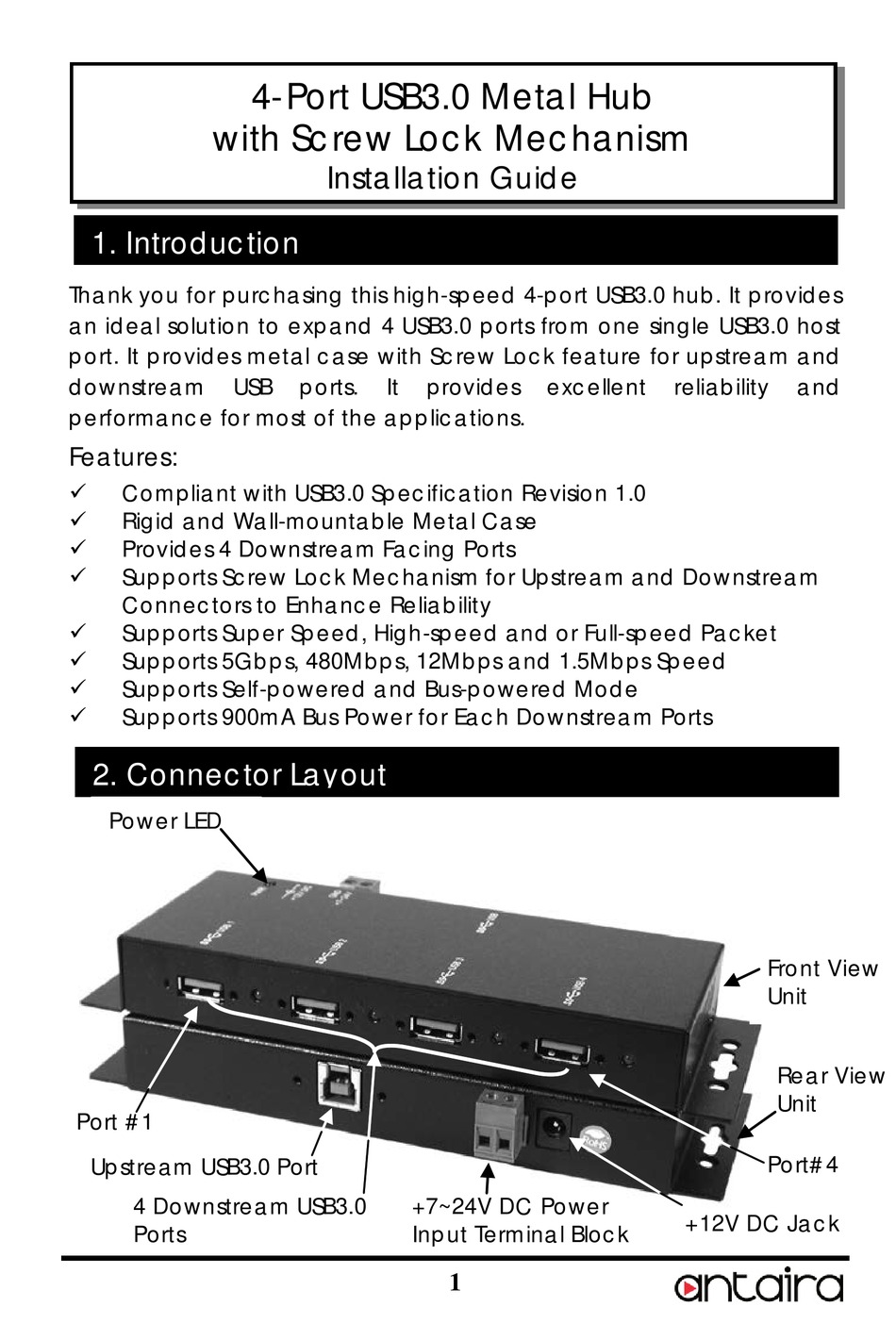

1. Introduction
Thank you for purchasing this high-speed 4-port USB3.0 hub. It provides
an ideal solution to expand 4 USB3.0 ports from one single USB3.0 host
port. It provides metal case with Screw Lock feature for upstream and
downstream
USB
performance for most of the applications.
Features:
Compliant with USB3.0 Specification Revision 1.0
Rigid and Wall-mountable Metal Case
Provides 4 Downstream Facing Ports
Supports Screw Lock Mechanism for Upstream and Downstream
Connectors to Enhance Reliability
Supports Super Speed, High-speed and or Full-speed Packet
Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
Supports Self-powered and Bus-powered Mode
Supports 900mA Bus Power for Each Downstream Ports
2. Connector Layout
Power LED
Port #1
Upstream USB3.0 Port
4 Downstream USB3.0
Ports
4-Port USB3.0 Metal Hub
Installation Guide
ports.
It
+7~24V DC Power
Input Terminal Block
provides
excellent
1
reliability
and
Front View
Unit
Rear View
Unit
Port#4
+12V DC Jack
Advertisement
Table of Contents
Related Manuals for ANTAIRA USB-HUB4K3
Summary of Contents for ANTAIRA USB-HUB4K3
-
Page 1: Installation Guide
4-Port USB3.0 Metal Hub with Screw Lock Mechanism Installation Guide 1. Introduction Thank you for purchasing this high-speed 4-port USB3.0 hub. It provides an ideal solution to expand 4 USB3.0 ports from one single USB3.0 host port. It provides metal case with Screw Lock feature for upstream and downstream ports. - Page 2 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case Front Side Connection w/ Screw Lock USB Cable: Downstream USB3.0 Port w/ Screw Lock Cable +12V DC Jack Power Connector: A DC12V AC adapter is supplied with this product. The AC adapter’s output has to be connected to here.
- Page 3 4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case Attaching the AC power adapter. Connecting USB Host cable: The host cable is a standard A-to-B USB3.0 cable (or an optional Screw-Lock type cable). Please connect the type-A end connector of the cable to your upstream USB port, then connect the type-B end connector to this hub.
-
Page 4: Operating Humidity
4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case Here is your USB3.0 Hub 5. Environmental Specifications Operating temp.: ° °F 0 to 55 C (32 to 131 Operating humidity: 5 to 95% RH Dimensions (LxWxH): 7.03”(L)x2.43”(W)x0.92”(H) (17.85 x 6.16 x 2.34 cm)
