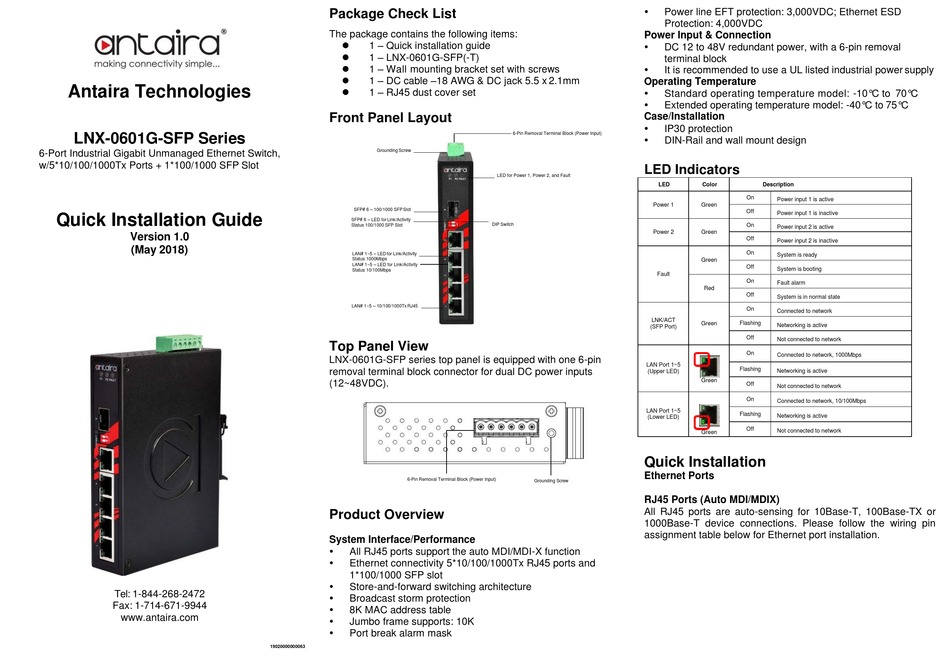

ANTAIRA LNX-0601G-SFP Series Quick Installation Manual

Antaira Technologies

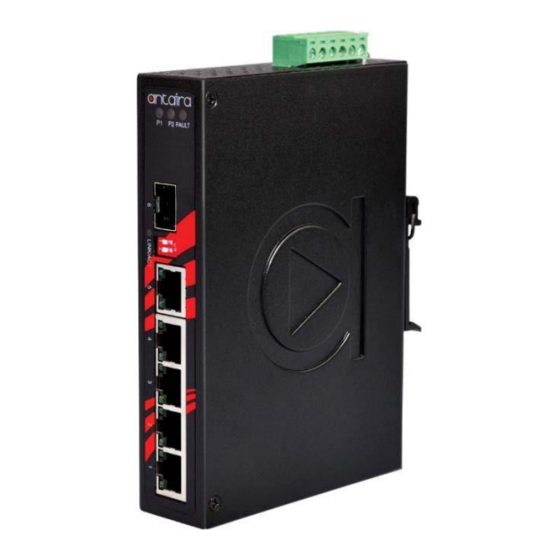

LNX-0601G-SFP Series
6-Port Industrial Gigabit Unmanaged Ethernet Switch,
w/5*10/100/1000Tx Ports + 1*100/1000 SFP Slot
Quick Installation Guide
Version 1.0
(May 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNX-0601G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
Front Panel Layout
Grounding Screw
SFP# 6 – 100/1000 SFP Slot
SFP# 6 – LED for Link/Activity
Status 100/1000 SFP Slot
LAN# 1~5 – LED for Link/Activity
Status 1000Mbps
LAN# 1~5 – LED for Link/Activity
Status 10/100Mbps
LAN# 1~5 – 10/100/1000Tx RJ45
Top Panel View
LNX-0601G-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 5*10/100/1000Tx RJ45 ports and
1*100/1000 SFP slot

Store-and-forward switching architecture

Broadcast storm protection

8K MAC address table

Jumbo frame supports: 10K

Port break alarm mask
19020000000063

Power line EFT protection: 3,000VDC; Ethernet ESD
Protection: 4,000VDC
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection
6-Pin Removal Terminal Block (Power Input)

DIN-Rail and wall mount design
LED Indicators
LED for Power 1, Power 2, and Fault
LED
Power 1
DIP Switch
Power 2
Fault
LNK/ACT
(SFP Port)
LAN Port 1~5
(Upper LED)
LAN Port 1~5
(Lower LED)
Quick Installation
Ethernet Ports
Grounding Screw
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
System is ready
Green
Off
System is booting
On
Fault alarm
Red
Off
System is in normal state
On
Connected to network
Green Flashing
Networking is active
Off
Not connected to network
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
Green
