ANTAIRA LNX-602N User Manual

6-port industrial managed ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product User Manual
and enterprise branch and head offices LNX-602N-SS30-T
www.enochsystems.com
1-877-722-1116
sales@enochsystems.com
Copyright © 2013 Enoch Systems, LLC, Enoch Systems and the Enoch Systems logo are trademarks or registered trademarks of Enoch Systems, LLC and/or its affiliates in the U.S. and other countries.
Third-party trademarks mentioned are the property of their respective owners. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LNX-602N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANTAIRA LNX-602N

Summary of Contents for ANTAIRA LNX-602N

  • Page 1 Product User Manual and enterprise branch and head offices LNX-602N-SS30-T www.enochsystems.com 1-877-722-1116 sales@enochsystems.com Copyright © 2013 Enoch Systems, LLC, Enoch Systems and the Enoch Systems logo are trademarks or registered trademarks of Enoch Systems, LLC and/or its affiliates in the U.S. and other countries.
  • Page 2 6-port Industrial Managed Ethernet Switch User’s Manual Version 1.2...

  • Page 3: Table Of Contents

    Table of Content Getting to Know Your Switch ................ 3 About the LNX-602N Managed Industrial Switch ............. 3 Software Features ....................3 Hardware Features ....................3 Hardware Installation ..................4 Installing Switch on DIN-Rail ..................4 2.1.1 Mount LNX-602N Series on DIN-Rail ..............4 Wall Mounting Installation ..................
  • Page 4 VLAN ........................29 5.1.6.1 VLAN Configuration – Port Based ............. 29 5.1.7 Warning ......................29 5.1.7.1 Fault Alarm ....................30 5.1.8 Front Panel ......................34 5.1.9 Save Configuration .................... 34 5.1.10 LLDP ......................35 Technical Specifications ................36 Antaira Technologies, LLC...

  • Page 5: Getting To Know Your Switch

    Know Your Switch About the LNX-602N Managed Industrial Switch The LNX-602N switch is a cost-effective and powerful industrial switch with many features. These switches can work under wide temperature and dusty environment and humid condition. The LNX-602N switch can be managed by Web.

  • Page 6: Hardware Installation

    Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail: 2.1.1 Mount LNX-602N Series on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail.

  • Page 7: Wall Mounting Installation

    The following steps show how to mount the switch on the wall: 2.2.1 Mount LNX-602N Series on wall Step 1: Remove DIN-Rail kit. Step 2: Use 6 screws that can be found in the package to combine the wall mount panel.
  • Page 8 LNX-602N User’s Manual The screws specification shows in the following two pictures. In order to prevent switches from any damage, the screws should not be larger than the size that is used in switch. Pozidrive Step 3: Mount the combined switch on the wall.

  • Page 9: Hardware Overview

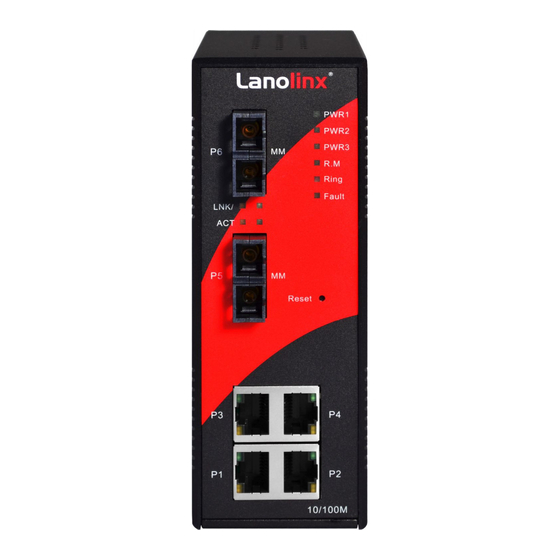

    LNX-602N User’s Manual ardware Overview Front Panel The following table describes the labels that stick on the LNX-602N. Port Description 10/100Base-T(X) RJ-45 fast Ethernet ports support 10/100 RJ-45 fast auto-negotiation. Ethernet ports Default Setting : Speed: auto Duplex: auto Flow control : disable...
  • Page 10 LNX-602N User’s Manual LNX-602N Series 1. LED for PWR1. When the PWR1 links, the green led will be light on. 2. LED for PWR2. When the PWR2 links, the green led will be light on. 3. LED for PWR3. When the PWR3 links, the green led will be light on.

  • Page 11: Front Panel Leds

    Data transmitted. Amber Port link up. Bottom Panel The bottom panel components of LNX-602N are showed as below: 1. Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC). 2. Power jack for PWR3 (12-45VDC). LNX-602N power connection Antaira Technologies, LLC...

  • Page 12: Rear Panel

    LNX-602N User’s Manual Rear Panel The rear panel components of LNX-602N are showed as below: 1. Screw holes for wall mount kit. 2. Din-Rail kit Antaira Technologies, LLC...

  • Page 13: Cables

    Ethernet Cables The LNX-602N switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.

  • Page 14: Fibers

    Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Fibers The following two models, LNX-602N-MM, LNX-602N-SS30, have fiber optical ports. The fiber optical ports are in multi-mode (0 to 2 km, 1310 nm in 50/125 µm, 62.5/125 µm) and single-mode (9/125 µm) with SC connector.

  • Page 15: Web Management

    LNX-602N User’s Manual EB Management Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management An embedded HTML web site resides in flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.

  • Page 16: Basic Setting

    LNX-602N User’s Manual Login screen Main Interface Main interface 5.1.2 Basic Setting 5.1.2.1 Switch setting Switch setting interface The following table describes the labels in this screen. Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Description Display the description of switch.

  • Page 17: Admin Password

    LNX-602N User’s Manual Assign the switch physical location. The maximum length is 64 System Location bytes System Contact Enter the name of contact person or organization Firmware Version Display the switch’s firmware version Kernel Version Display the kernel software version...

  • Page 18: Sntp Configuration

    LNX-602N User’s Manual IP Configuration interface The following table describes the labels in this screen. Label Description DHCP Client To enable or disable the DHCP client function. When DHCP client function is enabling, the switch will assign the IP address from the network DHCP server.
  • Page 19 LNX-602N User’s Manual clocks in the Internet. SNTP Configuration interface The following table describes the labels in this screen. Label Description Enable or disable SNTP function to get the time from the SNTP SNTP Client server. Daylight Saving Time Enable or disable daylight saving time function. When daylight saving time is enabling, you need to configure the daylight saving time period.
  • Page 20 LNX-602N User’s Manual EDT - Eastern Daylight EST - Eastern Standard -5 hours 7 am CDT - Central Daylight CST - Central Standard -6 hours 6 am MDT - Mountain Daylight MST - Mountain Standard -7 hours 5 am PDT - Pacific Daylight...

  • Page 21: Backup & Restore

    LNX-602N User’s Manual IDLE - International Date Line NZST - New Zealand Standard +12 hours Midnight NZT - New Zealand The following table describes the labels in this screen. Label Description SNTP Sever IP Set the SNTP server IP address.

  • Page 22: Upgrade Firmware

    LNX-602N User’s Manual Fill in the TFTP server IP TFTP Server IP Address Restore File Name Fill the file name. Restore Click “restore” to restore the configurations. Restore File Name Fill the file name. Restore Click “restore” to restore the configurations.

  • Page 23: Port Configuration

    LNX-602N User’s Manual System Reboot interface 5.1.3 Port Configuration 5.1.3.1 Port Control By this function, you can set the state, speed/duplex, flow control, and security of the port. Port Control interface The following table describes the labels in this screen.

  • Page 24: Redundancy

    The Fast Recovery Mode can be set to connect multiple ports to one or more switches. The LNX-602N with its fast recovery mode will provide redundant links. Fast Recovery mode supports 4 priorities, only the first priority will be the act port, the other ports configured with other priority will be the backup ports.

  • Page 25: Redundant Ring

    LNX-602N User’s Manual Activate the fast recovery mode. Active port Port can be configured as 5 priorities. Only the port with highest priority will be the active port. 1st Priority is the highest. Apply Click “Apply” to activate the configurations.

  • Page 26: Rstp

    LNX-602N User’s Manual Mark to enable Ring. Redundant Ring Ring Master There should be one and only one Ring Master in a ring. However if there are two or more switches which set Ring Master to enable, the switch with the lowest MAC address will be the actual Ring Master and others will be Backup Masters.
  • Page 27 LNX-602N User’s Manual RSTP Setting interface The following table describes the labels in this screen. Label Description RSTP mode You must enable or disable RSTP function before configuring the related parameters. Priority (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root.
  • Page 28 LNX-602N User’s Manual Rapid Spanning-Tree Protocol learning and listening states to the Time (4-30) forwarding state. Enter a value between 4 through 30. Path Cost The cost of the path to the other bridge from this transmitting (1-200000000) bridge at the specified port. Enter a number 1 through 200000000.

  • Page 29: Snmp Configuration

    LNX-602N User’s Manual RSTP Information interface 5.1.5 SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 30: Snmp -Trap Setting

    LNX-602N User’s Manual The following table describes the labels in this screen. Label Description SNMP – Agent SNMP Community should be set for SNMP. Four sets of Setting "Community String/Privilege" are supported. Each Community String is maximum 32 characters. Keep empty to remove this Community string.

  • Page 31: Vlan

    LNX-602N User’s Manual 5.1.6 VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.

  • Page 32: Fault Alarm

    LNX-602N User’s Manual 5.1.7.1 Fault Alarm When any selected fault event is happened, the Fault LED in switch panel will light up and the electric relay will signal at the same time. Fault alarm interface System Warning – SYSLOG Setting The SYSLOG is a protocol to transmit event notification messages across networks.
  • Page 33 LNX-602N User’s Manual Address Apply Click “Apply” to activate the configurations. Help Show help file. System Event LOG If system log client is enabled, the system event logs will show in this table. System event log interface The following table describes the labels in this screen.
  • Page 34 LNX-602N User’s Manual System Warning – SMTP Setting interface The following table describes the labels in this screen. Label Description E-mail Alarm Enable/Disable transmission system warning events by e-mail. The SMTP server IP address Sender E-mail Address Mail Subject The Subject of the mail ...
  • Page 35 LNX-602N User’s Manual System Warning – Event Selection interface The following table describes the labels in this screen. Label Description System Event System Cold Start Alert when system restart Alert when Redundant Ring topology change Redundant Ring Topology Change ...

  • Page 36: Front Panel

    LNX-602N User’s Manual 5.1.8 Front Panel Show LNX-602N panel. Click “Close” to close panel on web. Front panel interface 5.1.9 Save Configuration If any configuration changed, “Save Configuration” should be clicked to save current configuration data into the permanent flash memory. Otherwise, the current configuration will be lost when power off or system reset.

  • Page 37: Lldp

    LNX-602N User’s Manual 5.1.10 LLDP LLDP (Link Layer Discovery Protocol) function allows the switch to advertise its information to other nodes on the network and store the information it discovers. LLDP interface The following table describes the labels in this screen.

  • Page 38: Technical Specifications

    LNX-602N User’s Manual echnical Specifications Technology Ethernet Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x Flow Control and Back pressure IEEE802.1D Spanning tree protocol IEEE802.1w Rapid Spanning tree protocol IEEE802.1AB LLDP MAC addresses 1024 Flow Control IEEE 802.3x Flow Control and Back-pressure...
  • Page 39 LNX-602N User’s Manual Reverse Polarity Protection Present Power Consumption 7 Watts Max Environmental Wide Operating Temperature -40 to 75 Storage Temperature -40 to 85 Operating Humidity 5% to 95%, non-condensing Mechanical Dimensions(W x D x H) 52 mm(W)x 106 mm( D )x 144 mm(H)
