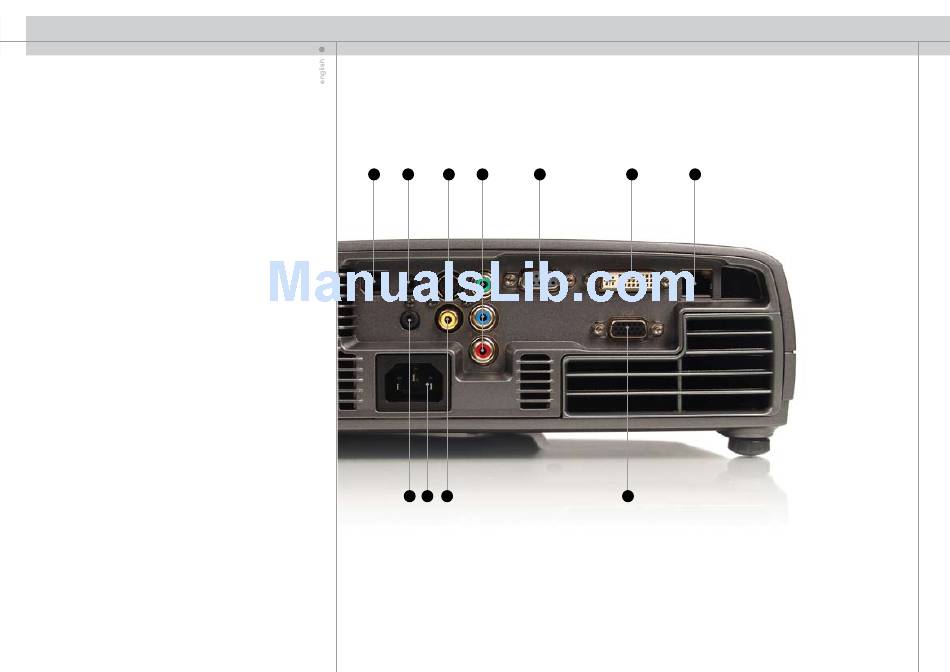

CONNECTOR PANEL

CONNECTOR PANEL
A C-VIDEO: Used for standard video quality.
B S-VIDEO: Used for improved quality video.
YPbPr: Used for high quality video reproduction.
C
DVI-D - Digital RGB: For a low noise computer and video image.
D
E VGA - Analog RGB: The standard analog
computer graphics interface.
F RS 22 control: Allows for wired remote control and
monitoring of many projector functions used in installation environments.
G RC: Allows connection of external IR receiver or wired remote control.
H SOUND: Connects to the built-in monitor speaker.
I USB - interface: Allows for computer mouse control.
J LAN: Provides access to control and monitoring over a
Local Area Network.
K Mains power connector: Use only three-prong/grounded
power cord.
I G B C F
H K A
D J
E
