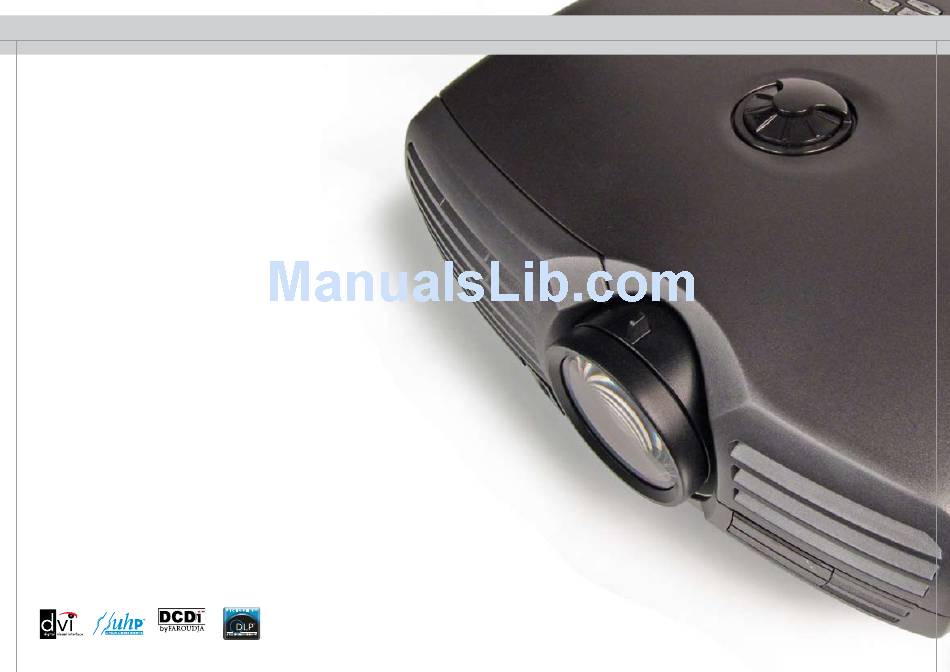

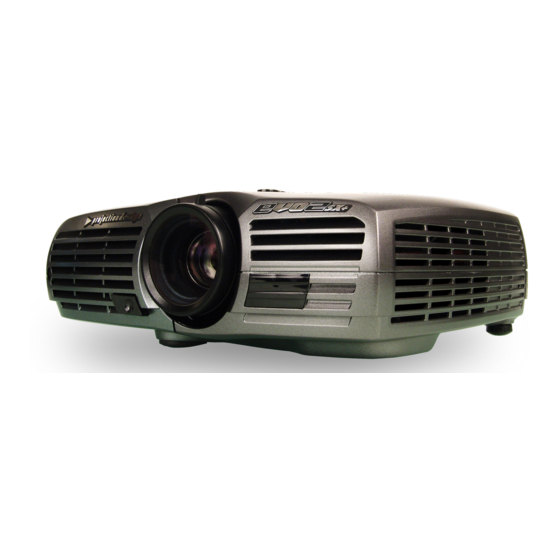

  • Page 1 userguide • benutzer handbuch • guide d’utilisateur • guía del usario • manuale d’uso • bruksanvisning • S XG A+ • H D 7 2 0...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of contents Introduction Safety & Warnings Supplied material Overview Keypad Indicator Remote control Connector panel Set up Image adjustments Ceiling mount Using the projector Menu system Trouble shooting Maintenance Service information Lamp change Technical data Declarations...

  • Page 4: B Introduction

    INTRODUCTION This digital projector is designed with the latest state-of-the-art technologies in illumination, imaging, optics, electronics, thermal and industrial design in order to serve traditional as well as novel imaging applications across a variety of markets, offering features such as: SXGA+ 1400x1050 or HD720 1280x720 pixel DLP™...

  • Page 5: C Safety & Warnings

    SAFETY & WARNINGS This user guide contains important information about safety precautions and the set- up and use of the projector. Please read the manual carefully before you operate the projector. SAFETY This device complies with relevant safety regulations for data processing equipment for use in an office environment.

  • Page 6: Safety & Warnings

    SAFETY & WARNINGS Do not operate the projector outside its temperature and humidity specifications, as this may result in overheating and malfunctioning. Only connect the projector to signal sources and voltages as described in the technical specification. Connecting to unspecified signal sources or voltages may lead to malfunction and permanent damage of the unit.
  • Page 7 SAFETY & WARNINGS WEEE INFORMATION This product conforms to all requirements of the EU Directive on waste electrical and electronic equipment (WEEE). This product shall be recycled properly. It can be disassembled to facilitate proper recycling of it’s individual parts. This product is using projection lamps that shall be recycled properly.
  • Page 8 SAFETY & WARNINGS WARNING SYMBOLS READ USER GUIDE Attention! Read the user guide for further information! DANGEROUS VOLTAGE Danger! High voltage inside the product! Warning! Hot surfaces! WAIT Warning! Wait until cooled down! MERCURY Warning! Lamp contains mercury! Recycle properly, do not dispose of in ordinary waste! Warning! UV radiation inside the product! RECYCLE...

  • Page 9: Supplied Material

    SUPPLIED MATERIAL Projector Remote control with batteries User guide Power Cord (country dependent) Before Set up and Use Unpack the supplied parts and familiarise yourself with the various components.

  • Page 10: E Overview

    OVERVIEW A Lens B IR sensor C Ventilation D Power connector E Keypad F Connector panel G Lens shift H Adjustable feet Security lock Ceiling mount...

  • Page 11: F Keypad

    KEYPAD The keypad is illuminated for operation in dark environments. Several keys have multiple functions. POWER Switches the projector between on and standby modes. Press firmly (1 sec) to switch on. Press firmly (1 sec) twice to switch off. AUTO Adjusting the projector to display a correct image, including position, width, height and overall stability.

  • Page 12: G Indicator

    INDICATORS INDICATOR The light next to the power key indicates the overall system status by blue, orange and red colors. PERMANENT BLUE LIGHT The projector is turned on and in normal operation. PERMANENT ORANGE LIGHT The unit is in standby mode; no source(s) connected, or the source(s) connected are inactive or switched off, thereby activating the powersave function (DPMS).

  • Page 13: Remote Control

    REMOTE CONTROL REMOTE CONTROL The remote control allows flexible access to the projector settings, either through direct keys, or through the menu system. The remote control is backlit for use in dark environments. It also has a datajack that allows for wired connection to the projector. When the wire is connected, the IR (infra-red) beam and internal batteries are switched off.
  • Page 14 REMOTE CONTROL Selects the DVI input. Selects the VGA input. AV-MUTE Toggles the internal speaker and the projected image on and off. The lamp is not shut off. STILL Toggle function, locking the projected image on and off. TIME Displays date and time. Set the date and time in the MENU system, MISC sub menu. ASPECT Cycles through the aspect ratios available with the current source.

  • Page 15: Connector Panel

    CONNECTOR PANEL CONNECTOR PANEL C-VIDEO: Used for standard video quality. S-VIDEO: Used for improved quality video. YPbPr: Used for high quality video reproduction. DVI-D - Digital RGB: For a low noise computer and video image. VGA - Analog RGB: The standard analog computer graphics interface.

  • Page 16: Set Up

    SET UP SET UP VIDEO Before setting-up, switch off all equipment. Three video sources may be connected, using the YPbPr (component), S-VIDEO (super video) and C-VIDEO (composite video) inputs. Component will display more detailed images. Composite video yields images with less detail.

  • Page 17: Image Adjustments

    IMAGE ADJUSTMENTS Position the projector on a level surface, preferably pointing straight on to the projection screen. Place it at a suitable distance within the throw range of the zoom lens. ZOOM the image for the right size. Reposition the projector if the desired image size is not achievable.

  • Page 18: Ceiling Mount

    CEILING MOUNT The projector can be ceiling mounted using an approved UL tested/ listed ceiling mount fixture, with a capacity of minimum 12 kg / 26 lbs. For ceiling mount use M4 screws that penetrate maximum 5 mm (0.19 in) into the projector body.

  • Page 19: Using The Projector

    USING THE PROJECTOR After setting-up, switch on all equipment. The projector can be controlled by the keypad, by the remote control or using the RS232 or LAN interfaces. To switch the projector on, firmly press the POWER button on the keypad or the remote control. The STATUS indicator will turn from yellow to blue when the unit is switched on.
  • Page 20 program number: program number: program number: program number: weekday(s): monday weekday(s): saturday - sunday program number: program number: weekday(s): monday weekday(s): saturday - sunday execute time: 00 : 00 execute time: 18 : 00 weekday(s): monday weekday(s): saturday - sunday execute time: 00 : 00 execute time:...
  • Page 21 USING THE PROJECTOR IMAGE CALIBRATION AND CORRECTION Some applications require very precise color reproduction of the images. In addition, depending on application, different color standards are applied. When preparing for correct color reproduction, both the source and the projector must be considered. The projector offers several ways to calibrate colors, as well as correction of the input signal.

  • Page 22: Menu System

    MENU SYSTEM The menu system gives access to a multitude of image and system controls. The menu system is structured through a top menu and several sub menus. The sub menus may vary depending on the actual source selected. Some functions are not available with some sources.
  • Page 23 MENU SYSTEM PICTURE SUB MENU S-VIDEO / C-VIDEO / YPbPr (interlaced) brightness Adjusts the image brightness. A higher setting will increase the brightness, a lower setting will decrease the brightness of the image. contrast Controls the contrast of the image. A higher setting will yield a ‘harder’ image with larger difference between shades, while a low setting will produce a ‘softer’...
  • Page 24 MENU SYSTEM DYNAMIC SUB MENU S-VIDEO / C-VIDEO / YPbPr (interlaced) white boost Increases the white level of the image for enhanced contrast gamma The source image is adapted to characteristics typical to certain applications. This enables an optimized display of images, depending on whether the source is video, computer etc.
  • Page 25 MENU SYSTEM ADVANCED SUB MENU S-VIDEO / C-VIDEO / YPbPr (interlaced) h position Shifts the image sideways. v position Shifts the image up and down. phase Adjust for stable image. A jittery image may appear with certain VGA sources. You may also press the AUTO button on the keypad or remote control to optimize frequency Adjust image width.
  • Page 26 MENU SYSTEM ADVANCED SUB MENU COLOR MANAGEMENT AND SOURCE CORRECTION color management The color temperature and color coordinates can be calibrated as desired. mode Select not corrected, temperature or custom color. The not corrected setting displays the native color temeperature of the projector. mode temperature red gain...
  • Page 27 MENU SYSTEM SET UP SUB MENU FOR ALL keystone V Adjust vertical keystone correction. Compensates for the geometrical distortion of the projected image resulting from tilting the projector to shoot higher up on the wall. keystone H Adjust horizontal keystone correction. Compensates for the geometrical distortion of the projected image resulting from shooting the image at an angle sideways to the screen.
  • Page 28 MENU SYSTEM UTILITIES SUB MENU FOR ALL system information press system information Displays information about the source and projector status. OSD timeout seconds Turn the On Screen Display on (display) or off (hide) during source scan. OSD background opaque translucent OSD timeout reset press...
  • Page 29 c o n f i g u r e t i m e r c o n f i g u r e t i m e r MENU SYSTEM program number: program number: weekday(s): monday weekday(s): saturday - sunday execute time: 00 : 00 execute time:...

  • Page 30: Trouble Shooting

    TROUBLE SHOOTING NO IMAGE No connection: Check if all connections are properly made. Source off: Check if the equipment is powered on. Lamp dead: The lamp may need replacement. Check the LAMP TIME in the UTILITIES sub menu. Source hibernated: Engage the source to display and activate image. Notebook external screen: Different notebook PC’s use different combinations of keystrokes to enable the external graphics port.

  • Page 31: P Maintenance

    MAINTENANCE The projector may from time to time need cleaning. Never open the unit, as this will void any warranties. Refer service and repair to qualified personnel only. The projector is using lamps that have a limited life time. Please refer to the LAMP CHANGE section below for further details.

  • Page 32: Lamp Change

    POWER STATUS STATUS LAMP CHANGE The INDICATOR on the keypad will turn red when lamp life expires. Change the lamp when lifetime expires. Always replace lamp with the same type and rating. POWER POWER Always disconnect the power cord and wait until the projector has cooled down (60 POWER minutes) before opening the lamp cover.

  • Page 33: Technical Data

    TECHNICAL DATA Technical data shown are for the following versions : SX+, HD720-3 and HD720-2. Different specifications apply accordingly. Where HD720 only is referenced, data are valid for both -2 and -3 versions. Resolution 1400 x 1050 (native) SXGA+, 4 : 3 aspect ratio 1280 x 720 (native) HD720, 16 : 9 aspect ratio Display technology Single chip DLP™...
  • Page 34 TECHNICAL DATA Power 90-260 VAC, 50-60 Hz, 270W Conformance CE, FCC B, CSA(C,US) CCC Temperature operating 0-40°C / 32-104°F, 0-1500 m / 0-4950 ft 0-35°C / 32-95°F, 1500-3000 m / 4950-9900 ft Temperature storage -20 - 60°C / -4 - 140°F Humidity operating 20-90% RH, non-condensing Humidity storage...
  • Page 35 TECHNICAL DATA CONNECTORS/STECKER/CONNECTEURS/CONECTADORES/CONNETTORI/KONTAKTER S-Video Computer DVI Computer VGA RS-22 RC in PHONO/RCA 1 HIGH DENSITY ,mm stereo  PIN MINI DIN FEMALE DVI-D  PIN DSUB FEMALE RJ  FEMALE DSUB FEMALE mini jack 1 GND STEM GREEN: G/Y 1 TMDS Data 2- 1 Analog R in 1 NC TIP: 5V DC...
  • Page 36 TECHNICAL DATA Image width Screen diagonal 20.0 25.0 15.0 4.50 6.00 7.50 7.00 5.50 18.0 4.00 6.50 12.5 5.00 16.0 20.0 6.00 3.50 4.50 5.50 14.0 10.0 3.00 4.00 5.00 12.0 15.0 4.50 3.50 2.50 4.00 10.0 3.00 3.50 2.00 2.50 10.0 3.00...
  • Page 37 TECHNICAL DATA 20 HD Image width Screen diagonal 20.0 25.0 4.50 15.0 6.00 7.50 7.00 5.50 18.0 4.00 6.50 12.5 5.00 16.0 20.0 6.00 3.50 4.50 5.50 14.0 10.0 3.00 4.00 5.00 12.0 15.0 4.50 3.50 2.50 4.00 10.0 3.00 3.50 2.00 2.50...

  • Page 38: T Declarations

    DECLARATIONS FCC regulations provide that changes or modifications not expressly approved by the party responsible manufacturer could void your authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may...
  • Page 40 userguide • benutzer handbuch • guide d’utilisateur • guía del usario • manuale d’uso • bruksanvisning *601-0082-01*...
