2. DESCRIPTION

2.2 Device components

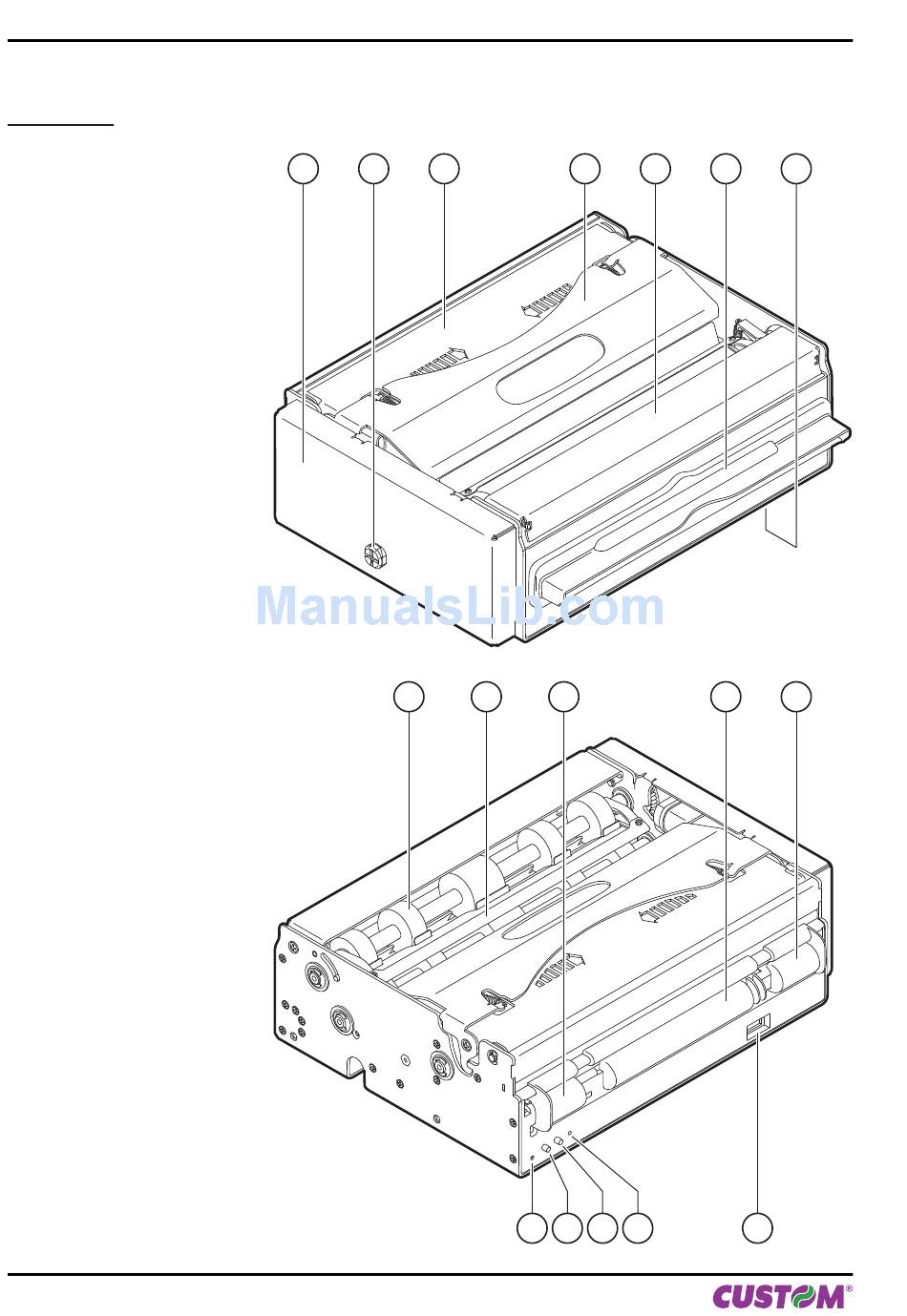

External view
1. Motorization cover
2. Lock/Unlock button of mo-
torization cover
3. Printing head set
4. Opening lever of head set
5. Roller cover
6. Paper out, horizontal position
(a) or vertical position (b)
7. Adjustable cursor for paper
in
8. Paper in
9. Tilting paper holder
10. Paper ejector rollers unit
11. Status led
12. FEED key
13. PRINT key
14. RESET key
15. External near paper end sen-
sor connector
8 KPM216HII ETH
1 2
User manual
3
10 9 7
11 12 13 14
4 5 6a
8
15
6b
7
