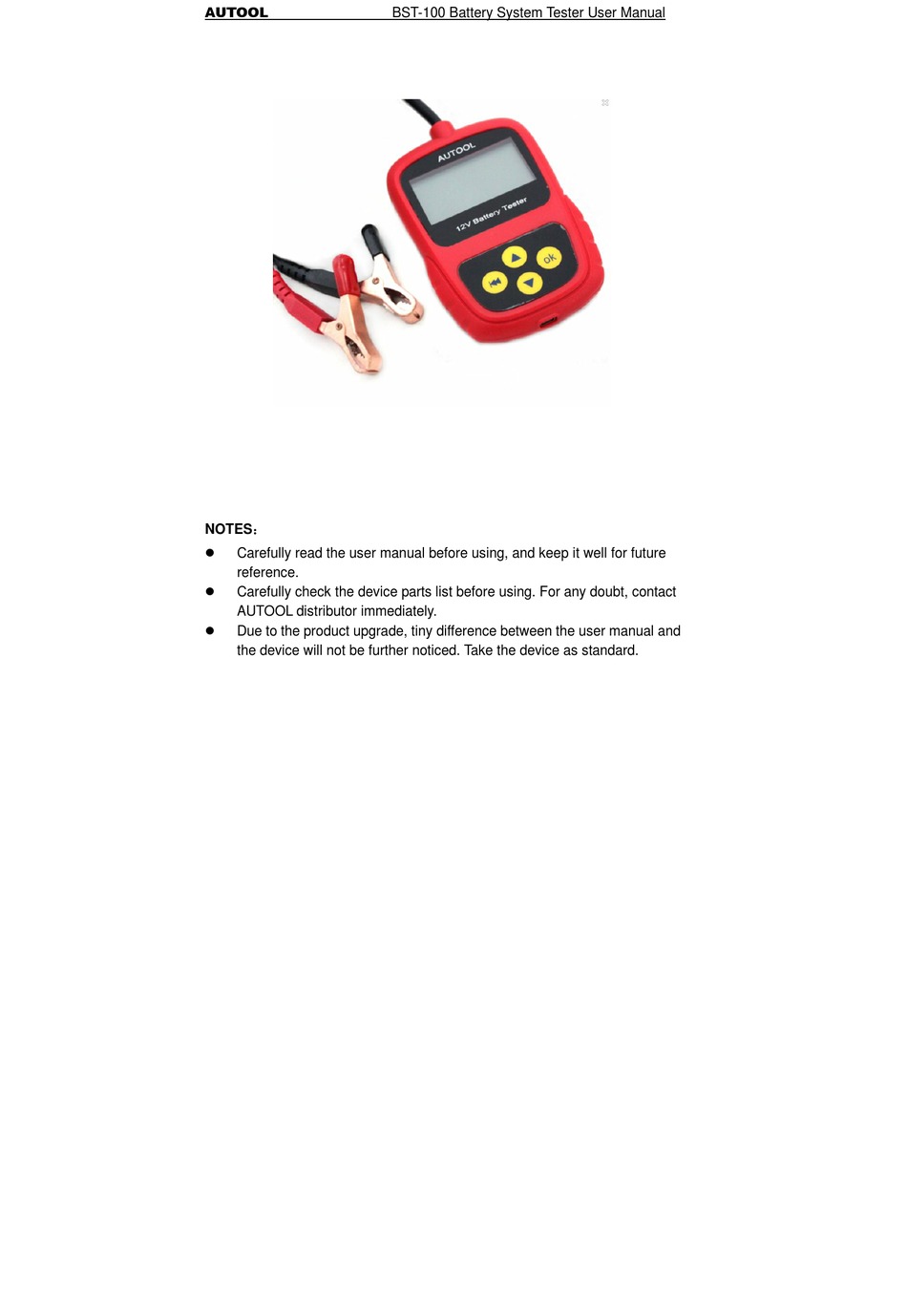

BST-100 Battery System Tester User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BST-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Autool BST-100

Summary of Contents for Autool BST-100

  • Page 1 AUTOOL BST-100 Battery System Tester User Manual NOTES： Carefully read the user manual before using, and keep it well for future reference. Carefully check the device parts list before using. For any doubt, contact AUTOOL distributor immediately. Due to the product upgrade, tiny difference between the user manual and...
  • Page 2 AUTOOL BST-100 Battery System Tester User Manual AUTOOL Copyright reserved! Without written agreement from Tech Co., Ltd AUTOOL (Hereinafter refer to " "), any company or person is not allowed to copy and duplicate this user manual in any format (electronic, mechanical, video, record AUTOOL or other formats).The user manual is designed only for...

  • Page 3: Table Of Contents

    AUTOOL BST-100 Battery System Tester User Manual Table of Contents Chapter 1 Product Summary ................1 1.1 Product Profile ..................1 1.2 Product Function ................1 1.3 Technical Parameters ................. 2 1.4 Working Environment Requirement ............ 3 Chapter 2 Tester Structure ................4 Chapter 3 Operation ..................

  • Page 4: Chapter 1 Product Summary

    Russian, Spanish, French, Italian, German, etc. Other languages can also be customized according to user's need. 1.2 Product Function Main functions of BST-100 battery tester include: battery test, cranking test, charging test and other additional functions. Battery test is mainly targeted to analyze the battery healthy status to...

  • Page 5: Technical Parameters

    AUTOOL BST-100 Battery System Tester User Manual the actual required cranking current and cranking voltage of the starting motor, it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnormal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of the starting motor itself.

  • Page 6: Working Environment Requirement

    AUTOOL BST-100 Battery System Tester User Manual 1.4 Working Environment Requirement Working Environment Temp.: -20°C-50°C It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery distributors, and educational organizations, etc.

  • Page 7: Chapter 2 Tester Structure

    AUTOOL BST-100 Battery System Tester User Manual Chapter 2 Tester Structure BST-100 mainly consists of battery tester main unit and testing cables. BST-100 Battery Tester main unit cover is made of ABS acid-resistant plastic.

  • Page 8: Chapter 3 Operation

    AUTOOL BST-100 Battery System Tester User Manual Chapter 3 Operation 3.1 Pre-Test 3.1.1 Connect Tester Shake the clamps back and forth to make sure they are well connected. Tester requires the two clamps are well connected with the battery poles, otherwise, the test cannot go on. W hen enter the battery test program, screen prompts "Check Connection", do clean...

  • Page 9: Tester Startup

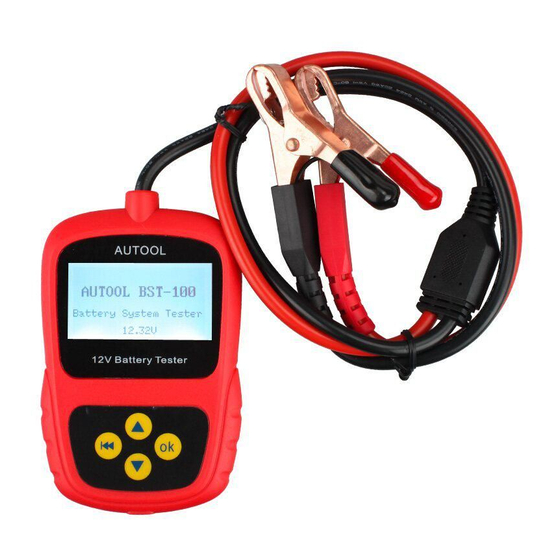

    BST-100 Battery System Tester User Manual 3.2 Tester Startup Tester automatically starts up after the clamps are correctly connected, and displays the AUTOOL startup interface (Default voltmeter is ON) refer to figure 1. Figure 1, Startup Interface with Voltmeter on At the middle bottom of the startup interface, it displays the voltmeter value, which can be used as DC voltmeter.

  • Page 10: In-Vehicle Or Out-Of-Vehicle

    AUTOOL BST-100 Battery System Tester User Manual Figure 3, Interface with tester model and version Tester will display the following contents in a sequence, select accordingly. 3.4.1 IN-VEHICLE or OUT-OF-VEHICLE Press UP/DOW N key to select the battery location, in vehicle or out of vehicle, then press OK key to confirm.

  • Page 11: Select Battery Charge State

    AUTOOL BST-100 Battery System Tester User Manual Now the tester detects the surface charge has been eliminated, turn lights off as prompted, then press OK key. The tester will recover automatic test OUT-OF-VEHICLE means battery is not connected with any of the vehicle loaded, i.e.
  • Page 12 AUTOOL BST-100 Battery System Tester User Manual When it's IN-VEHICLE test, battery installation way shall also be selected, e.g. TOP, SIDE or REMOTE (This selection is no need for OUT-OF-VEHICLE), then press OK key to confirm. REMOTE is adopted for some in vehicle battery which is too tightly installed to...

  • Page 13: Battery System Standard And Rating

    "OUT-OF-VEHICLE" to re-test. 3.4.4 Battery System Standard and Rating BST-100 battery tester will test each battery according to the selected system and rating. Use UP/DOW N key to select according to the actual system standard and rating marked on the battery.

  • Page 14: Battery Test Result

    AUTOOL BST-100 Battery System Tester User Manual Rating range as following: Measure Standard Measure Range 100-800 26A17--245H52 100-700 100-700 100-800 100-800 100-700 Input correct test standard and rating, press OK key, tester starts to test, and dynamic interface "TESTING" prompted. See below: It takes around 3 seconds to display the battery test result.
  • Page 15 AUTOOL BST-100 Battery System Tester User Manual 1) Good Battery SOH:96% SOC:98% 12.64V 490A Rating 500A GOOD BATTERY The battery is without any problem, please be relaxed to use! NOTE: SOH means State of Health SOC means State of Charge...
  • Page 16 AUTOOL BST-100 Battery System Tester User Manual The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed. 4) Bad Cell, Replace SOH:0% SOC:20% 10.60V Rating 500A BAD CELL，REPLACE Battery interior damaged, broken cell or short circuit, replace battery.

  • Page 17: Cranking Test

    AUTOOL BST-100 Battery System Tester User Manual After testing: if it's "IN-VEHICLE" test state, press OK key will bring to Cranking Test. 3.5 Cranking Test Tester prompts as following: Starting the engine as prompted, tester will automatically complete the cranking test and display the result.

  • Page 18: Charging System And Rectifier Diode Test

    AUTOOL BST-100 Battery System Tester User Manual This is for the convenience of the maintenance personnel to quickly know the whole state of the starting system according to the data. After testing finished, do not shut down the engine, press OK key to enter Charging Test.
  • Page 19 AUTOOL BST-100 Battery System Tester User Manual Loaded Volt Test takes approx. 3 seconds, then it hints "Step on accelerator to increase engine rotating speed" Operate accordingly to increase the engine rotating speed to 3000turns or above, and keep for 5 seconds.
  • Page 20 AUTOOL BST-100 Battery System Tester User Manual Charging system shows the generator output normal, no problem detected. 2) Charging Volt: Low Charging volt of the charging system is low. Check drive belt of the generator whether slip or running off. Check the connection between generator and battery is normal or not.

  • Page 21: Chapter 4 Daily Maintenance

    AUTOOL BST-100 Battery System Tester User Manual Chapter 4 Daily Maintenance 4.1 Eliminate Common Fault 4.1.1 Screen Not Light Check connection with the battery whether it's well or reverse connected. Check the test cable whether break off or drop down.
  • Page 22 AUTOOL is not responsible for any indirect or accidental loss. AUTOOL will clarify the device damage according to the specified test method. Any distributor, employee and business representative of AUTOOL are not entitled to do any confirmation, presentation or promise related to AUTOOL products.
  • Page 23 AUTOOL BST-100 Battery System Tester User Manual Statement: AUTOOL reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We...
