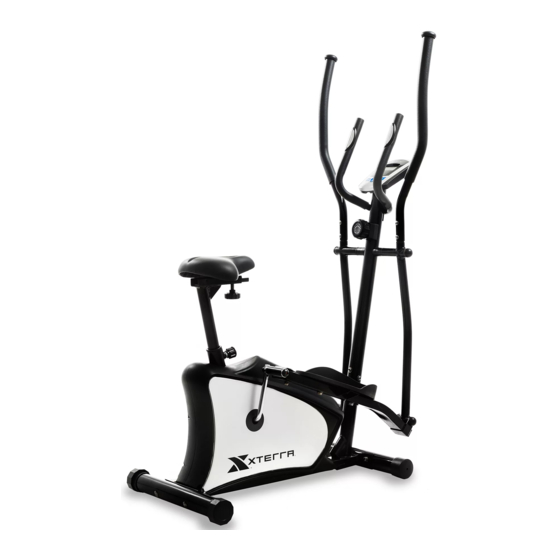

EU100 HYBRID ELLIPTICAL
UPRIGHT BIKE OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Hybrid Elliptical
Upright Bike
FITNESS

Advertisement

loading
Need help?

Need help?

Do you have a question about the EU100 and is the answer not in the manual?

Questions and answers

Related Manuals for Xterra EU100

Summary of Contents for Xterra EU100

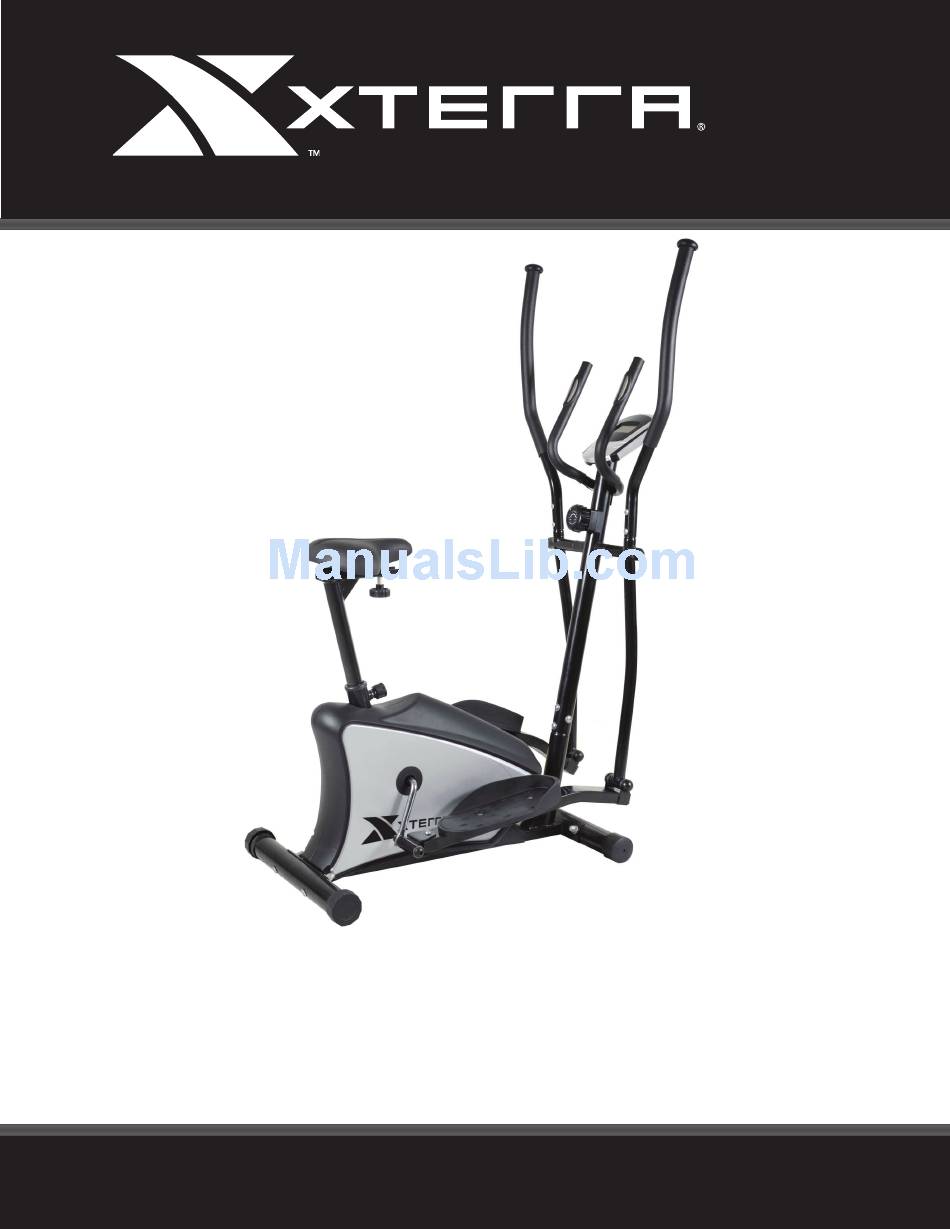

  • Page 1 FITNESS EU100 HYBRID ELLIPTICAL UPRIGHT BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Hybrid Elliptical Upright Bike...

  • Page 3: Table Of Contents

    Fitness. Your new Hybrid Elliptical Upright Bike has been manufactured by one of the leading fitness manufacturers in the world. XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870) 333-5500.

  • Page 4: Product Registration

    Please record the Serial Number of this fitness product in the space provided below. Serial Number Register Your Purchase The self-addressed product registration card must be completed in full and returned to XTERRA Fitness. You can also go to www.xterrafitness.com/warrantyreg.html to register online. EU100 Elliptical...

  • Page 5: Important Safety Instructions

    Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. EU100 Elliptical...
  • Page 6 Before you begin Thank you for selecting our revolutionary XTERRA EU100 Hybrid Elliptical Upright Bike. Walking is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness Hybrid Elliptical Upright Bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

  • Page 7: Eu100 Assembly Instructions

    EU100 Pre-Assembly Check List PART NO. DESCRIPTION Q’TY Main Frame 11/12 Pedal Tube (L/R) Stationary Handlebar Seat Rear Stabilizer Front Stabilizer 9/10 Pedal (L/R) Computer 13/17 Front Post / 8-Level Tension Control Knob Seat Post 16/64 Upper Handlebar (L/R) 14/15...
  • Page 8 EU100 Assembly Pack Checklist Part No. Description Q’ty Curved Washer Ф22*Ф10 Dome Nut M10 Carriage Bolt M10*75 Allen Screw M8*16 Curved Washer Ф22*Ф8 PVC CAP Carriage Bolt Allen Screw M6*12 Hex Head Bolt M10*78 Sleeve Washer Φ10*Φ22 Nylon Nut M10...
  • Page 9 EU100 Assembly Instructions Front Stabilizer and Rear Stabilizer Hardware Step 1 4 Carriage Bolts (#8) 4 Curved Washers (#7) 4 Domed Nuts (#7) 1. Attach the Front Stabilizer (2) to the front of the Main Frame (1), fasten with two Carriage Bolts (8), two Curved Washers (6) and two Domed Nuts (7).
  • Page 10 Lower Sensor Wire (58) with Upper Sensor Wire (60). 2. Tighten Tension Control Knob with one Washer (65) and Bolt (66). 3. Insert the Front Post (13) into the Main Frame (1), tighten with four Allen Screws (30) and four Curved Washers (31). EU100 Elliptical...
  • Page 11 EU100 Assembly Instructions Bottom Handlebars Hardware Step 3 2 D Type Washers (#36) 2 Washers (#35) 2 Spring Washers (#34) 2 Hex Head Screws (#33) 2 PVC Caps (#32) 1. Attach the Left Bottom Handlebar (14) to the left side axle of the Front Post (13).
  • Page 12 3. Attach the Left Pedal (9) onto the Left Pedal Tube (11), secure using two Carriage Bolts (44),two Washers (41) and two Nylon Nuts (42). 4. Repeat the procedure for the Right Pedal Tube (12) & Right Pedal (10). EU100 Elliptical...
  • Page 13 EU100 Assembly Instructions Hardware Step 5 2 Allen Screws (#30) Handlebars and Console 2 Curved Washers (#31) Pre-assembled on Console: 4 Screws (#62) Pre-assembled on Seat Post: 1 Carriage Bolt (#26) 1 Quadrate Plate (#27) 1 Sleeve (#28) 1 Lock Knob (#29)  ...
  • Page 14 EU100 Assembly Instructions Handlebars Hardware Step 6 4 Allen Screws (#38) 4 Carriage Bolts (#37) 1. Connect the Left Top Handlebar (16) to the Left Bottom Handlebar (14). Secure using two Allen Screws (38) and two Carriage Bolts (37). 2. Repeat for the Right Top Handlebar (64) to the Right Bottom Handlebar (15).

  • Page 15: Operation Of Your Console

    Operation of Your Console EU100 Console Key Functions BUTTONS: MODE: Press to select the desired function between: Scan, Time, Count, Calories and Total Count. SET: Press to set the values of time, count and calories RESET: Press to reset your function value to zero.
  • Page 16 The computer will turn off automatically if no signal is detected for around four minutes. If computer is illegible or partial segments appear, remove batteries and wait 15 seconds to re-install. Removing the batteries will reset all values to zero. EU100 Elliptical...
  • Page 17 To adjust the seat, loosen the quick release knob, slide the seat to the desired position and retighten the knob. HOW TO MOVE THE EU100 To move the Hybrid Bike, grasp the stationary handlebar and pull back on the handle until the Hybrid Bike can be moved on the front wheels.

  • Page 18: Manufacturer's Limited Warranty

    Effective August 4, 2016 - Hybrid Elliptical Upright Bike LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Hybrid Elliptical Upright Bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date.
  • Page 19 EU100 Elliptical...
  • Page 20 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All RIghts Reserved. EU100 Owner’s Manual EU100 Elliptical...
