2-3 PERIODIC MAINTENANCE

MAINTENANCE PROCEDURES

This section describes the servicing procedures for
each item.

CYLINDER HEAD COVER BOLTS,

CYLINDER HEAD & CYLINDER
BASE NUTS, EXHAUST PIPE
NUTS AND MUFFLER BOLTS
Inspect Interval
Tighten Initial at 1,000 km and Every 4,000 km
thereafter.

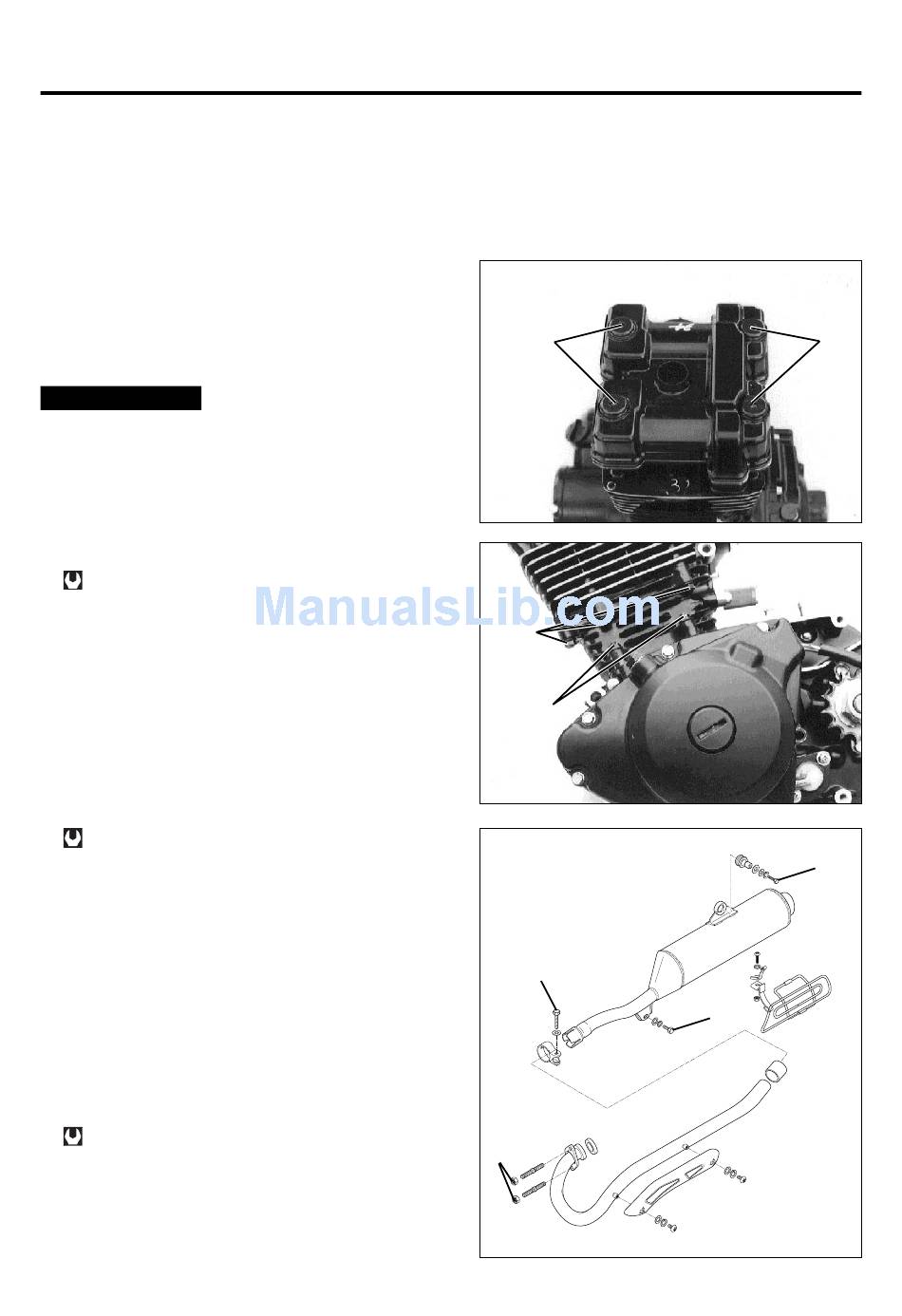

■ ■ CYLINDER HEAD COVER BOLT
● Tighten the cylinder head cover bolts ① to the
specified torque.
Cylinder head cover bolt
: 12 ~ 16 N· · m (1.2 ~ 1.6 kgf· · m)
■ ■ CYLINDER HEAD & CYLINDER BASE
NUT
● Tighten the cylinder head base buts ② and
cylinder base nuts ③ to the specified torque.
Cylinder head base nut
: 7 ~ 11 N· · m (0.7 ~ 1.1 kgf· · m)
Cylinder base nut
: 7 ~ 11 N· · m (0.7 ~ 1.1 kgf· · m)
■ ■ EXHAUST PIPE NUTS & MUFFLER
BOLTS
● Tighten the exhaust pipe nuts ④ , muffler
connecting bolt ⑤, and muffler mounting bolts ⑥,
⑦ to the specified torque.
Exhaust pipe nut
: 18 ~ 28 N· · m (1.8 ~ 2.8 kgf· · m)
Muffler connecting bolt
: 18 ~ 28 N· · m (1.8 ~ 2.8 kgf· · m)
Muffler mounting bolt
: 18 ~ 28 N· · m (1.8 ~ 2.8 kgf· · m)
①
②
③
⑤
④
14
①
⑦
⑥
