3-37 ENGINE
LOWER END COMPONENTS
OF ENGINE DISASSEMBLY

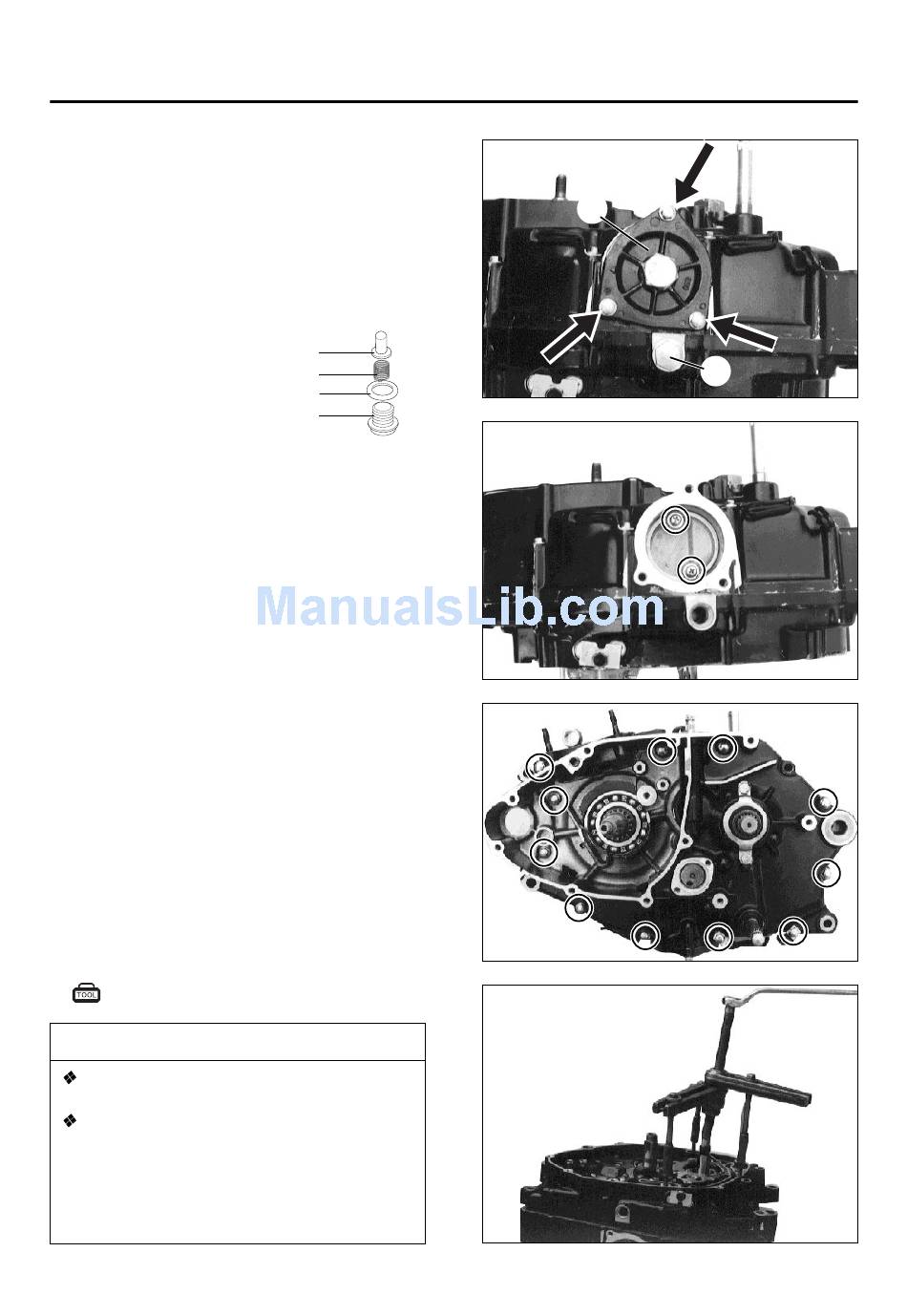

⊙ ⊙ CRANKCASE
● Remove the oil strainer cap ①.
● Remove the gear shift cam stopper plug ②,
washer ③, spring ④ and neutral cam stopper ⑤.
● Remove the engine oil strainer by loosening the
screws.
● Loosen the crankcase bolts.
● Separate the crankcase into left and right halves
using the special tool.
Crankcase separator : 09920-13120
NOTE
Fit the crankcase separator, so that the tool
arms are in parallel with the side of crankcase.
The crankshaft and transmission components
should remain in the left crankcase half.
This is necessary because the gear shift cam
stopper is mounted on the left crankcase half
and will be damaged if the transmission
components remain in the right half.
⑤
④
③
②
60
①
②
