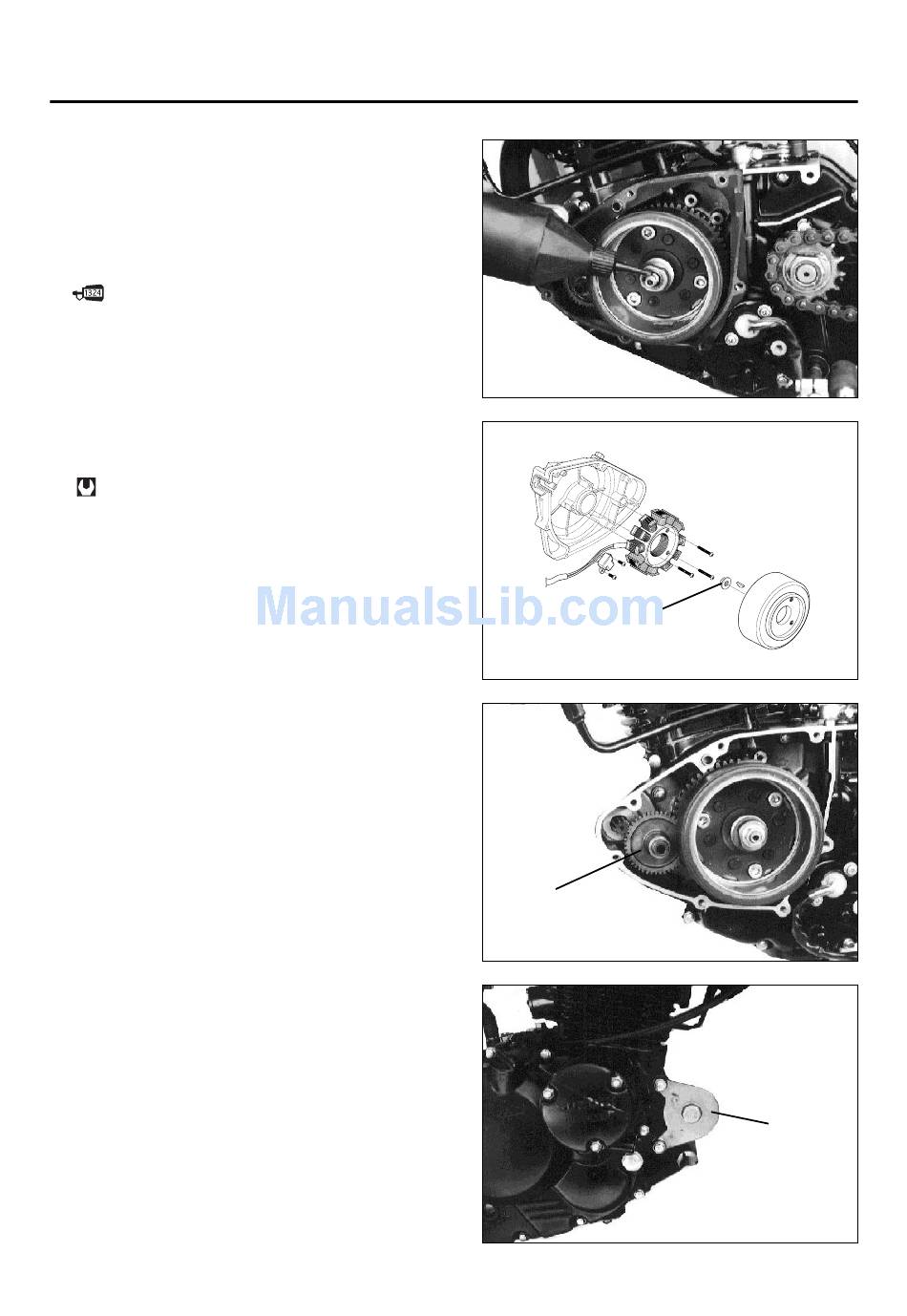

⊙ MAGNETO ROTOR

● Fit the key into the key slot on the crankshaft.
● With the magneto rotor, install the starter clutch on
the crankshaft.
● Apply a small quantity of THREAD LOCK "1324"to
the threaded parts of crankshaft.
THREAD LOCK "1324"
● Hold the magneto rotor, and tighten the magneto
rotor bolt ① to the specified torque.
Magneto rotor bolt
: 56 ~ 60 N·m (5.6 ~ 6.0 kgf·m)
⊙ STARTER IDLE GEAR AND
MOTOR
● Install the starter idle gear ②.
● Install the starter motor ③.
②
76
①
③
