3-5 ENGINE
ENGINE REMOVAL AND
REMOUNTING

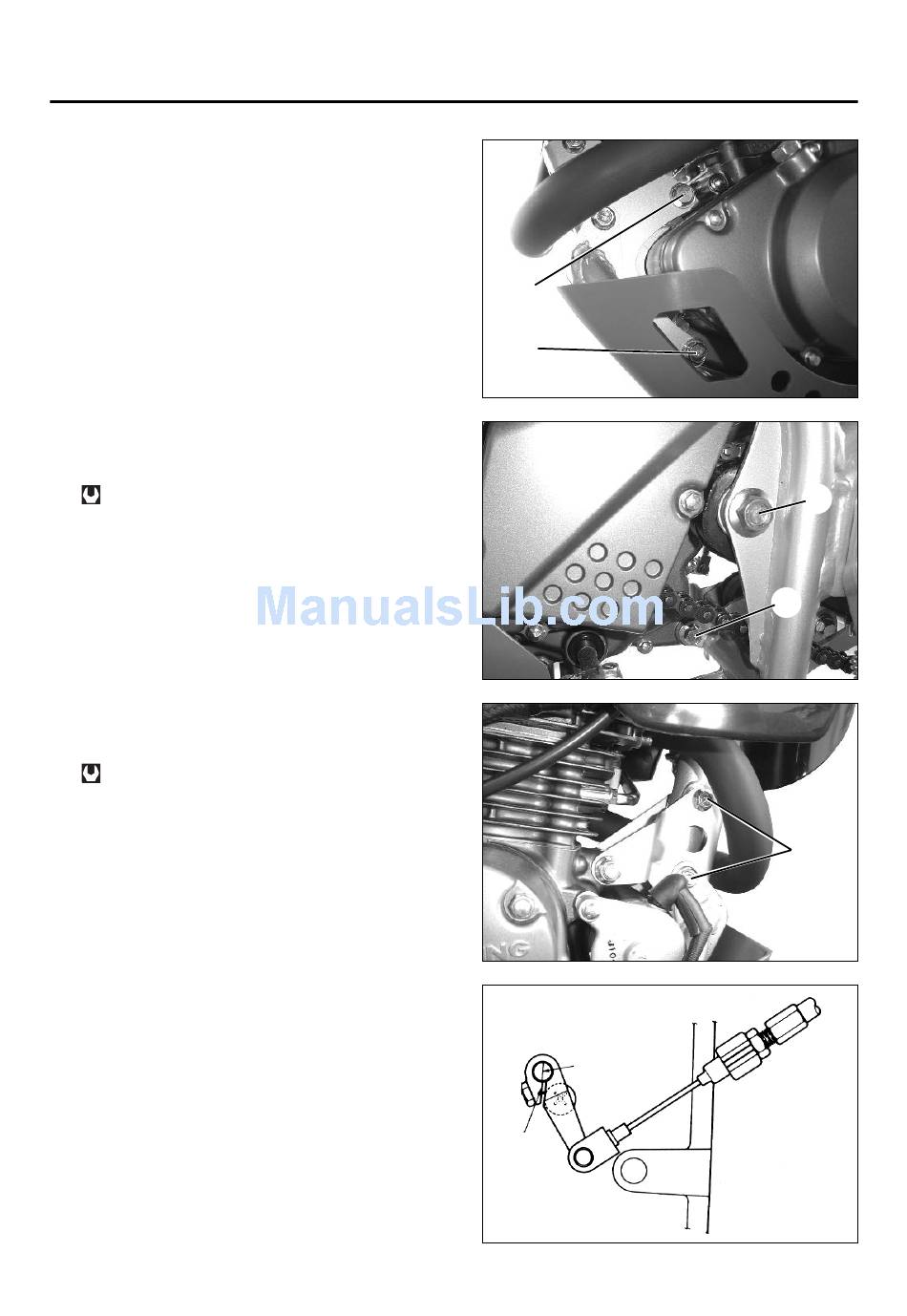

ENGINE REMOUNTING
Remount the engine in the reverse order of removal.
● Temporarily fasten the engine mounting bracket
before inserting the engine mounting bolts.
● Tighten the engine mounting bolts and nuts to the
specified torque.
Engine mounting bolt (M10) ① ①
: 48 ~ 72 N· · m (4.8 ~ 7.2 kgf· · m)
Engine mounting bolt (M8) ② ② , , ③ ③ , , ④ ④
: 22 ~ 33 N· · m (2.2 ~ 3.3 kgf· · m)
● Tighten the engine mounting bracket bolts and nuts
to the specified torque.
Engine mounting bracket bolt (M8) ⑤ ⑤
: 22 ~ 33 N· · m (2.2 ~ 3.3 kgf· · m)
■ ■ INSTALLING POSITION FOR CLUTCH
RELEASE ARM
● Align the clutch release arm slit surface with the
notch mark on the clutch release camshaft.
②
③
Notch Mark
Slit
28
①
④
⑤
