Summary of Contents for Wildgame L10b5

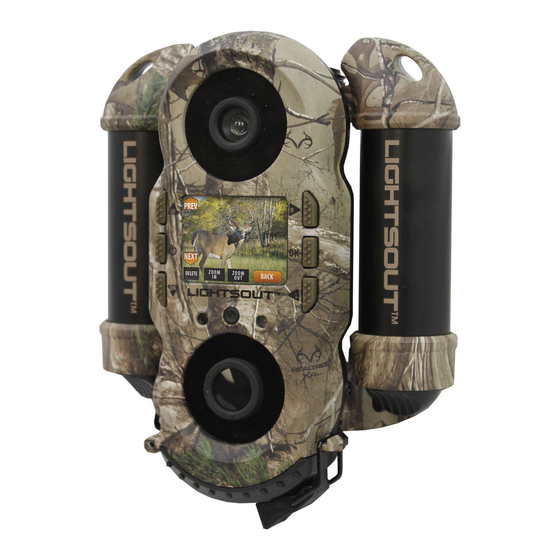

- Page 1 Invisible Infrared Digital Scouting Camera User’s Manual Model # L10b5...
- Page 2 Includes USB Cable 2 - Bungee Cords User Manual Flextime Player Camera Unit Software NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players page 1...
- Page 3 Features RESOLUTION MAX: 10 MP FLASH 60 High Intensity Invisible IR LED’s FLASH RANGE up to 70 feet SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Still / AVI - Digital Video MEMORY up to 32GB SD Card (not included and required)
-
Page 4: Installing Batteries
Installing Batteries With the camera facing up, open With the bottom of the camera the battery compartment at the towards you, load 6 AA batteries bottom of the camera by turning with the positive ends towards you them to the left. in the left battery chamber and load 6 AA batteries with the positive ends towards you in the... - Page 5 Close battery compartment cover Load SD memory card (up to 32GB by turning them to the right. into the SD card slot not included) with the connectors facing down. Open the door at the bottom of TIPS: the camera by unlatching the Make sure the SD Card is unlocked (small locking tabs.
-
Page 6: Test Mode
Test Mode Power On To turn the unit ON, press and LCD Ready Mode: The camera will release the power button. automatically enter Ready Mode if a button is not pressed for greater TIME / DATE 00:00 PM 00/00/00 than 30 seconds. The status lights LOCATION LOC1 IMAGE TYPE... -
Page 7: Power Save
Power Save Date/Time After 30 seconds without any To change Date & Time, enter buttons being pushed, the LCD MENU and press the UP,DN,L or R will turn off and camera enters buttons to navigate to the DATE & into Power Save or Ready Mode. TIME icon and press OK. - Page 8 Location Image Type:Still To change Image Type, enter Save the location of the area the camera was installed. This is for your reference and is MENU and press the UP,DN,L or R optional. If you do not wish to name your buttons to navigate to the Image location skip to the next step.
- Page 9 Image Type:Video Trigger To change Image Type, enter This setting allows you to choose the mode in which the camera will be capturing images. MENU and press the UP,DN,L or R buttons to navigate to the Image To change Trigger, enter MENU Type icon and press OK.
-
Page 10: Pir Sensitivity
PIR Sensitivity Active Time To change PIR Sensitivity, enter To change the Active Time, enter MENU and press the UP,DN,L or MENU and press the UP,DN,L or R R buttons to navigate to the PIR buttons to navigate to the Active Sensitivity icon and press OK. - Page 11 FLEXTIME selected Flextime period: Camera is inactive before and after Flextime periods. Flextime is active twice a day. 1. 15 min before Sunrise 15 MINUTES 15 MINUTES AFTER BEFORE to 1 hour after Sunrise. FLEX FLEX SUNSET SUNRISE INACTIVE TIME TIME INACTIVE 2.
- Page 12 Flextime +™ Delay To change Flextime™, enter MENU and To change the Delay, enter press the UP,DN,L or R buttons to navigate MENU press to the Flextime™ icon and press OK. UP,DN,L or R buttons to navigate to the Delay icon DATE &...
-
Page 13: Playback: Videos
Playback: Stills Playback: Videos To view your images, enter MENU and To view your videos, enter MENU press the UP,DN,L or R buttons to and press the UP,DN,L or R buttons navigate to the Playback icon and press to navigate to the Playback icon and press OK. -
Page 14: Power Off
Power Off View Assist To use View Assist, enter MENU To turn the unit off, first wake up and press the UP,DN,L or R the LCD screen and then depress buttons to navigate to the View and hold the power button until Assist icon and press OK. -
Page 15: Image Stamp
Image Stamp Power Port WGI Cameras come standard with an external power port. You must open the weather resistant cover and use a Wildgame Innovations Volt camera battery accessory. Location Photo Count 087°F 08:15PM 11-12-2011 0200 Temperature Time Date Moon Phase... - Page 16 Mounting When mounting to a tree, first latch the 2 bungee cords through the mounting holes on the left or right side of the camera. Then, stretch the cords around the tree and latch Adjustable sides to fit the other ends of the bungee cords almost any size tree.
- Page 17 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCONNECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.
-
Page 18: Retrieving Images
Retrieving Images (SD Card in Camera) Method 1: Leave SD card in camera A. First, make sure that the camera is be listed. The computer will recognize the powered OFF. Next, plug the USB cable into camera as Removable Disk. Please select the camera and then into the USB port on Removable Disk from this menu (or double your computer. - Page 19 Retrieving Images (SD Card reader) Method 2: Remove SD card and use card reader left of your screen and select “Computer”. A. First, remove the SD Card from the The summary view will then be illustrated camera unit itself by pressing on it to where on the right hand side of the window where it automatically ejects.
-
Page 20: Warranty
Warranty DISCLAIMERS WGI Innovations, LTD. is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, you MUST completely fill out and mail the warranty card along with your proof of purchase to WGI Innovations within (14) days after the date of purchase. - Page 21 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# L10b5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 22 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” , “Redux” and “Flextime” are TM trademarks of WGI Innovations, LTD.
