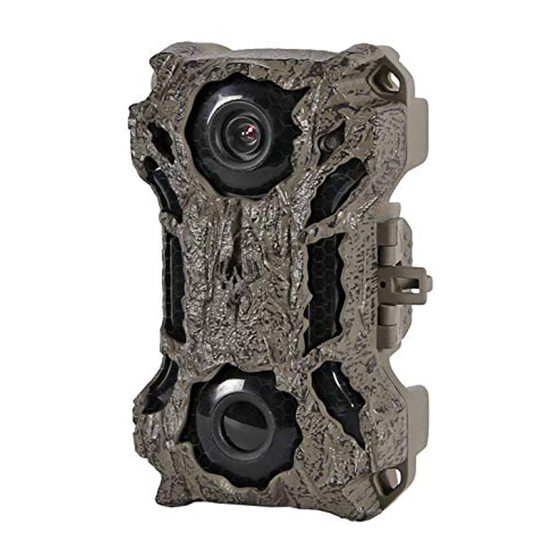

Invisible IR Digital Scouting Camera
User's Manual
Model # L20B20-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L20B20-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wildgame L20B20-7

Summary of Contents for Wildgame L20B20-7

  • Page 1 Invisible IR Digital Scouting Camera User’s Manual Model # L20B20-7...
  • Page 2 Includes Camera Unit User Manual Flextime Player Adjustable Strap Software NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players page 1...
  • Page 3 Features RESOLUTION MAX: 20 MP FLASH 56 pc High Intensity Invisible IR LED’s FLASH RANGE up to 100 feet SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Stills/ AVI-Digital Video MEMORY up to 32GB SD Card (not included and required) Class 6 and above recommended...

  • Page 4: Installing Batteries

    Installing Batteries Open the door on the right of Push the battery latch up to unlock. At the same time grab the battery the camera and PULL the tab compartment out. towards you. With the camera facing up, open the compartment door. Open the door on the bottom of the camera and PULL the tab towards you.
  • Page 5 Make sure to insert the AA-cell Load SD memory card (up to 32GB not batteries based on the direction included) into the SD CARD slot with the labeled on the inside of each com- connectors facing down. partment. Match minus “-” sign with the marked negative on the battery and the plus “+”...

  • Page 6: Test Mode

    Power On Test Mode LCD Ready Mode: The camera will To turn the unit ON press and automatically enter Ready Mode if a release the power button. button is not pressed for greater than 30 seconds. The status lights will illuminate for a total of 2 minutes.

  • Page 7: Power Save

    Date/Time Power Save To change Date & Time, enter After 30 seconds without any buttons MENU and press the UP,DN,L or R being pushed, the LCD will turn off buttons to navigate to the DATE & and camera enters into Power Save TIME icon and press ENTER.
  • Page 8 Location Image Type: Still To change Image Type, enter Save the location of the area the camera was installed. This is for your reference and MENU and press the UP,DN,L or is optional. If you do not wish to name your R buttons to navigate to the Image location skip to the next step.
  • Page 9 Image Type: Video Trigger To change Image Type, enter This setting allows you to choose the mode in which the camera will be capturing images. MENU and press the UP,DN,L or To change Trigger, enter MENU R buttons to navigate to the Image and press the UP,DN,L or R Type icon and press ENTER.

  • Page 10: Pir Sensitivity

    PIR Sensitivity Active Time To change the Active Time, enter To change PIR Sensitivity, enter MENU and press the UP,DN,L or MENU and press the UP,DN,L or R buttons to navigate to the PIR R buttons to navigate to the Active Sensitivity icon and press ENTER.
  • Page 11 Flextime +™ 30 MINUTES 30 MINUTES BEFORE AFTER SUNRISE SUNSET DUSK/DAWN FLEXTIME FLEXTIME INACTIVE INACTIVE INACTIVE 2 HOUR 2 HOUR AFTER BEFORE SUNRISE SUNSET 30 MINUTES 30 MINUTES BEFORE AFTER SUNRISE SUNSET ALL DAY FLEXTIME INACTIVE INACTIVE Both 30 MINUTES 30 MINUTES BEFORE AFTER...
  • Page 12 Flextime +™ Delay To change Flextime™, enter MENU To change the Delay, enter MENU and press the UP,DN,L or R buttons and press the UP,DN,L or R to navigate to the Flextime™ icon buttons to navigate to the Delay and press ENTER. icon and press ENTER.

  • Page 13: Playback: Videos

    Playback: Stills Playback: Videos To view your images, enter MENU To view your videos, enter MENU and and press the UP,DN,L or R buttons to press the UP,DN,L or R buttons to navigate to the Playback icon and press navigate to the Playback icon and press ENTER.

  • Page 14: Power Off

    View Assist Power Off To use View Assist, enter MENU To turn the unit off, first wake up the LCD screen and then depress and press the UP,DN,L or R buttons to navigate to the View and hold the power button until Assist icon and press OK.

  • Page 15: Image Stamp

    Image Stamp Mounting Pictures Display: When mounting to a tree, first remove the clip from one end of the strap so you can slide the strap through the slots located on the back of the camera. Once the camera is attached place the clip back on to the strap.
  • Page 16 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCONNECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.

  • Page 17: Retrieving Images

    Retrieving Images (SD Card in Camera) Method 1: Leave SD card in camera while Flextime files are in the FLEX folder. A. First, make sure that the camera is G. Once open, you will then see all of the powered OFF. Next, plug the USB cable into photo files that are located on the SD Card.
  • Page 18 Retrieving Images (SD Card Reader) Method 2: Remove SD card and use then be illustrated on the right hand side card reader of the window where by the “Devices with A. First, remove the SD Card from the Removable Storage” will be listed. The camera unit itself by pressing on it to computer will recognize the reader as where it automatically ejects.

  • Page 19: Format Sd Card

    Format SD Card Having trouble with your SD card? Try this. 1. Connect the SD card to your computer. If your computer has an SD card slot you can insert the SD card directly into the port. NOTE: If you are using a MicroSD card, you will need an adapter to allow it to fit into standard SD card ports.

  • Page 20: Warranty

    Warranty DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, visit our website and register your product at www.wildgameinnovations. com.
  • Page 21 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# L20b20-7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are trademarks of Wildgame Innovations, LLC. “Flextime” is a trademark of WGI Innovations, LTD.
