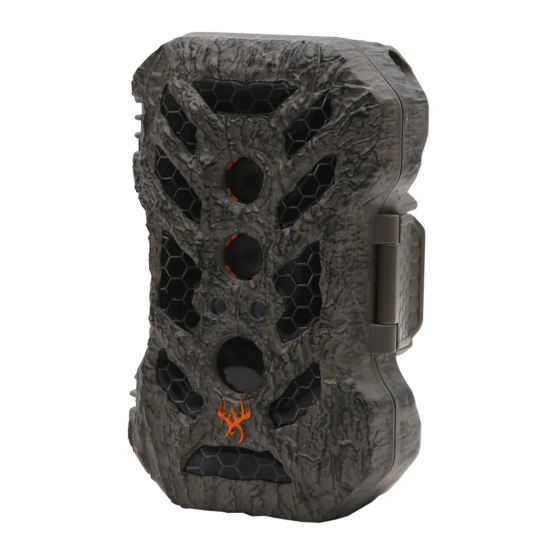

- Page 1 Invisible IR Digital Scouting Camera User’s Manual Model # SC20B20-7 page 1...
- Page 2 Includes Camera Unit User Manual Flextime Player Adjustable Strap ™ Software NOTE: FlexTime™ Player Software is optional. Most media players can play FlexTime™ files. page 2...
- Page 3 Features RESOLUTION MAX: 20 MP FLASH 42 pc High Intensity Invisible IR LED’s FLASH RANGE up to 100 feet SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Stills/ AVI-Digital Video MEMORY up to 32GB SD Card (not included and required) Class 6 and above recommended...
-
Page 4: Installing Batteries
Installing Batteries NOTE: This product requires 8 AA batteries, which are not included. Locate the battery compartment by Insert all 8 AA batteries by matching lifting the latch on the right to open the the +/- in the compartments with the camera like a book. -
Page 5: Installing Sd Card
Installing SD Card NOTE: This product requires an SD card to store images. The SD card is not provided. BEFORE INSTALLING: If you are using an SD card from another camera, you must format the SD card in your computer prior to installing it in this camera. If you are using a new card, it may go directly into this camera without any formatting. -
Page 6: Power Off
Power On Power Off To turn the camera ON, press To turn the camera OFF, the screen and release the POWER button should be “awake.” To wake up located below the right corner of the screen, press and release the the screen. - Page 7 Power Save/Ready Mode To awaken the screen from Power If no buttons are pressed for 30 sec- Save mode, briefly press the power onds after turning the power on, the button. screen will turn off and enter Power Save Mode while the camera will enter Ready Mode.
- Page 8 Date/Time To change the date and/or time, use the UP/DOWN arrows to scroll to TIME/DATE and press OK. POWER DUSK/DAWN ALL DAY RESET This will prompt you to select the proper value for each item in this order: 1) hour; 2) minute;...
- Page 9 Location You have the option to save the location where this camera is installed. If you do not wish to use this func- tion, please proceed to the next step. To name your location, use the UP/DOWN arrows to scroll to LOCATION on the left menu bar and press OK.
- Page 10 Trigger This setting allows you to choose the mode in which the camera will capture images. There are three modes. PIR: Takes a photo only when the PIR sensor is triggered by motion or heat FLEXTIME: Takes time lapse images at set intervals during key movement periods of the day BOTH: Uses the PIR sensor and FlexTime™...
- Page 11 Flextime™ 30 MINUTES 30 MINUTES BEFORE AFTER SUNRISE SUNSET DUSK/DAWN FLEXTIME FLEXTIME INACTIVE INACTIVE INACTIVE 2 HOUR 2 HOUR AFTER BEFORE SUNRISE SUNSET 30 MINUTES 30 MINUTES BEFORE AFTER SUNRISE SUNSET FLEXTIME ALL DAY INACTIVE INACTIVE Both 30 MINUTES 30 MINUTES BEFORE AFTER SUNRISE...
- Page 12 Flextime™ IMPORTANT: This step is only necessary if you selected BOTH or FLEXTIME from the TRIGGER menu. If you selected PIR MODE, these selections do not apply. If you haven’t already been redirected there, use the UP/DOWN arrows to scroll to FLEXTIME on the left menu bar and press OK.
- Page 13 PIR Mode IMPORTANT: This step is only necessary if you selected BOTH or PIR MODE from the TRIGGER menu. If you selected FLEXTIME, these selections do not apply. If you haven’t already been redirected there, use the UP/DOWN arrows to scroll to PIR MODE on the left menu bar and press OK.
- Page 14 PIR Active When your preferred method is This camera features two lenses: one day lens and one night lens. The PIR Active setting allows you to highlighted, press OK to select. choose what time of day you want the camera to op- erate and automatically selects the appropriate lens.
-
Page 15: Pir Sensitivity
PIR Sensitivity Exposure IMPORTANT: This step is only necessary if you selected To adjust the exposure, use the BOTH or PIR MODE from the TRIGGER menu. If you UP/DOWN arrows to scroll to selected FLEXTIME, these selections do not apply. EXPOSURE on the left menu bar There are three levels of PIR Sensitivity. - Page 16 Still Resolution Photo/Video Size To adjust the resolution of still images, To select the size of photos/vid- use the UP/DOWN arrows to scroll to eos captured by the camera, use STILL RES on the left menu bar and press the UP/DOWN arrows to scroll to PIC/VIDEO and press OK.
- Page 17 Delay To select a delay time between photos and/or videos, use the UP/DOWN arrows to scroll to DELAY and press OK. 09:00 POWER DUSK/DAWN ALL DAY RESET Use the LEFT/RIGHT arrows to select your preferred delay time (5 seconds, 15 sec- onds, 30 seconds, 1 minute, 5 minutes or 10 minutes) then press OK.
-
Page 18: Battery Life Indicator
Battery Life Indicator Reset Make sure the screen is turned on. To return the camera to factory settings, locate the RESET button directly below POWER the POWER button. DUSK/DAWN ALL DAY RESET POWER RESET Locate the battery life indicator in the bottom right corner of the Use a pencil or other small object to screen. - Page 19 Mounting To mount the camera to an object in the field, locate the strap that came supplied with the camera. Remove the clip from one end of the strap and slide that end through the two slats on the back of the camera. Once the camera is attached, place the clip back on the strap.
- Page 20 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCONNECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.
-
Page 21: Retrieving Images
Retrieving Images NOTE: This camera does not come equipped with the capability to review images directly on the unit. You will need to use a device that can read and E. If your computer does not automatically display images from an SD card. launch the AutoPlay window recognizing the Removable Disk (the camera), then you will IMPORTANT: When working with images on a... - Page 22 Retrieving Images (SD Card Reader) Method 2: Remove SD card and use then be illustrated on the right hand side card reader of the window where by the “Devices with A. First, remove the SD Card from the Removable Storage” will be listed. The camera unit itself by pressing on it to computer will recognize the reader as where it automatically ejects.
-
Page 23: Format Sd Card
Format SD Card Having trouble with your SD card? Try this. 1. Connect the SD card to your computer. If your computer has an SD card slot you can insert the SD card directly into the port. NOTE: If you are using a MicroSD card, you will need an adapter to allow it to fit into standard SD card ports. -
Page 24: Warranty
Warranty DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, visit our website and register your product at www.wildgameinnovations. com. - Page 25 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# SC20B20-7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 26 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are trademarks of Wildgame Innovations, LLC. “Flextime” is a trademark of WGI Innovations, LTD. page 26...
