Summary of Contents for Wildgame KP10B8-7

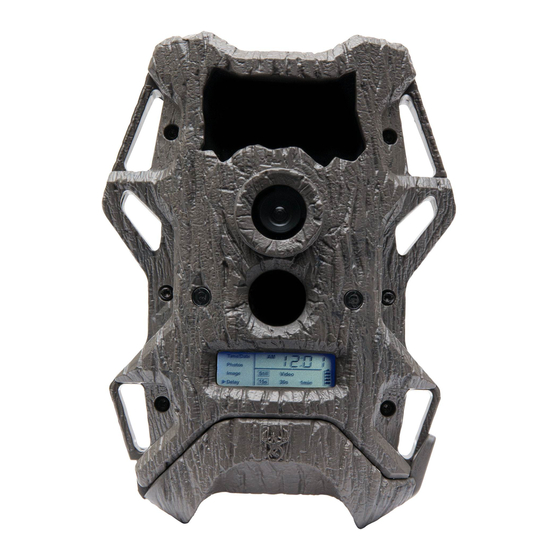

- Page 1 High Intensity Invisible IR Digital Scouting Camera User’s Manual Model # KP10B8-7...
- Page 2 Includes Camera Unit 2 - Bungee Cords User Manual page 1...
- Page 3 Features MAX: 10 MP RESOLUTION 36 pc High Intensity Invisible Infrared LED’s FLASH up to 65 feet FLASH RANGE Passive Infrared Sensor (PIR) Motion and Heat SENSOR up to 60 feet SENSOR RANGE JPEG - Digital Stills/ AVI-Digital Video IMAGE FORMAT up to 32GB SD Card (not included and required) MEMORY Class 4 and above recommended...
-
Page 4: Installing Batteries
Installing Batteries Open the door at the bottom of the With the bottom of the camera to- camera by unlatching the locking wards you, Make sure to insert the tab. batteries into the camera with the positive ends towards you where marked positive and the negative ends towards you where marked negative. - Page 5 Close battery compartment cover. Load SD memory card (up to 32GB To latch the cover simply pull the not included) into the SD card slot latch slightly to the left as you close with the connectors facing up. the battery compartment cover. IMPORTANT: Make sure the camera is powered off before removing or installing an SD card.
-
Page 6: Test Mode
Power On Test Mode LCD Ready Mode: The camera will To turn the unit ON press and automatically enter Ready Mode if a release the power button. button is not pressed for greater than 30 seconds. LED Status Light: During the first 30 seconds of the LCD Ready Mode, the red light will illuminate when a POWER... -
Page 7: Power Save
Setting Time Power Save After 30 seconds without any buttons To change date and time, start by being pushed, the LCD will turn off pressing and releasing the enter and camera enters into Power Save navigation button to set the hour. or Ready Mode. -
Page 8: Setting Date
Setting Date Photos Press enter navigation Press and release the enter button after setting the minute to navigation button choose change the Date. Photos. The number displayed is the number of photos on your SD card. This is not a programmable mode for the camera. - Page 9 Image Delay Press the enter navigation button Press the enter navigation button while Image is selected. The while Delay is selected. The highlighted option will be blinking. highlighted option will be blinking. POWER ENTER POWER ENTER Press the + or - navigation button Press the + or - navigation button to move to different options.
-
Page 10: Power Off
Power Off Image Stamp To turn the unit off, first wake up Pictures Display: the LCD screen and then depress and hold the power button until the LCD turns off. POWER ENTER A- Time B- Date C- Moon Phase D- Photo Count page 9... - Page 11 Important Mounting When mounting to a tree, first latch TIPS: Recommended distance from target area is 25-30 feet the 2 bungee cords through the for optimal imaging quality. mounting holes on the left or right To improve the quality of your images, try not to mount side of the camera.
-
Page 12: Retrieving Images
Retrieving Images (SD Card Reader) Method 1: Remove SD card and use card F. If your computer does not automatically reader launch the AutoPlay window recognizing the A. First, remove the SD Card from the cam- Removable Disk (the SD Card), then you will era unit itself by pressing on it to where it need to go to the “Start Menu”... -
Page 13: Format Sd Card
Format SD Card SDXC cards are not supported. Having trouble with your SD card? Try this. 1. Connect the SD card to your computer. If your computer has an SD card slot you can insert the SD card directly into the port. NOTE: If you are using a MicroSD card, you will need an adapter to allow it to fit into standard SD card ports. -
Page 14: Warranty
Warranty DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, visit our website and register your product at www.wildgameinnovations.com. Follow the onscreen directions to complete the process. - Page 15 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# KP10B8-7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 16 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are trademarks of Wildgame Innovations, LLC.
