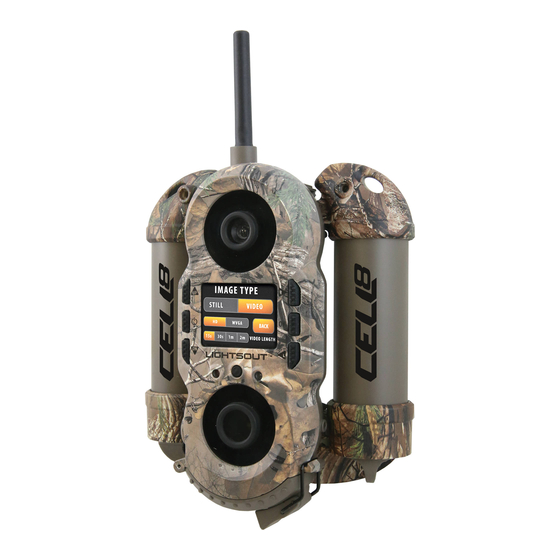

Invisible infrared digital cellular scouting camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Invisible Infrared Digital
Cellular Scouting Camera
User's Manual
Model # C8B5-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C8B5-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wildgame C8B5-7

Summary of Contents for Wildgame C8B5-7

  • Page 1 Invisible Infrared Digital Cellular Scouting Camera User’s Manual Model # C8B5-7...
  • Page 2 Includes USB Cable 2 - Bungee Cords User Manual Flextime Player Camera Unit Antenna Software SIM card NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players page 1...
  • Page 3 Features RESOLUTION MAX: 8 MP FLASH 60 High Intensity Invisible IR LED’s FLASH RANGE up to 70 feet SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Still / AVI - Digital Video MEMORY up to 32GB SD Card (not included and required)
  • Page 4 Setup With the camera facing up, open the Close battery compartment cover battery compartment at the bottom by turning them to the right. of the camera by turning them to the left. With the bottom of the camera towards you, load 2 D batteries with the positive ends towards you in each chamber.
  • Page 5 To attach the antenna, place the Load SD memory card (up to 32GB bottom of the antenna into the screw not included) into the SD card slot hole at the top of the camera. Then with the connectors facing down. turn the antenna clockwise until it is secure.

  • Page 6: Test Mode

    Power On Test Mode To turn the unit ON, press and LCD Ready Mode: The camera will release the power button. automatically enter Ready Mode if a button is not pressed for greater than 30 seconds. The status lights will illuminate for a total of 2 minutes.

  • Page 7: Power Save

    Power Save Date/Time After 30 seconds without any To change Date & Time, enter MENU buttons being pushed, the LCD will and press the UP,DN,L or R buttons turn off and camera enters into to navigate to the DATE & TIME icon Power Save or Ready Mode.
  • Page 8 Image Type:Still Location Save the location of the area the camera To change Image Type, enter MENU was installed. This is for your reference and press the UP,DN,L or R buttons and is optional. If you do not wish to to navigate to the Image Type icon name your location skip to the next step.
  • Page 9 Image Type:Video Trigger This setting allows you to choose the To change Image Type, enter MENU mode in which the camera will be and press the UP,DN,L or R buttons capturing images. to navigate to the Image Type icon and press OK. To change Trigger, enter MENU and press the UP,DN,L or R buttons to navigate to the Trigger icon and...

  • Page 10: Pir Sensitivity

    Image Type:Still PIR Sensitivity To change PIR Sensitivity, enter To change the Active Time, enter MENU and press the UP,DN,L or MENU and press the UP,DN,L or R buttons to navigate to the PIR R buttons to navigate to the Active Sensitivity icon and press OK.
  • Page 11 FLEXTIME selected Camera is inactive before and after Flextime periods. Flextime period: Flextime is active twice a day. 1. 15 min before Sunrise 15 MINUTES 15 MINUTES AFTER BEFORE to 1 hour after Sunrise. SUNSET FLEX FLEX SUNRISE INACTIVE TIME TIME INACTIVE 2.

  • Page 12: Pir Delay

    PIR Delay Flextime +™ To change the Delay, enter MENU To change Flextime™, enter MENU and and press the UP,DN,L or R buttons press the UP,DN,L or R buttons to navigate to navigate to the PIR Delay icon and to the Flextime™ icon and press OK. press OK.

  • Page 13: Playback: Videos

    Playback: Stills Playback: Videos To view your images, enter MENU and To view your videos, enter MENU and press the UP,DN,L or R buttons to navigate press the UP,DN,L or R buttons to navigate to the Playback icon and press OK. to the Playback icon and press OK.
  • Page 14 Cellular MMS View Assist To use Cellular MMS, enter MENU and To use View Assist, enter MENU and press the UP,DN,L or R buttons to navigate press the UP,DN,L or R buttons to to the SIM 2/3G icon and press OK. navigate to the View Assist icon and press OK.

  • Page 15: Send Settings

    Cellular Email Send Settings To use Cellular Email, enter MENU and After setting the cell numbers and/ press the UP,DN,L or R buttons to navigate or email addresses press the Up,DN to to the SIM 2/3G icon and press OK. navigate to the Send Settings button.

  • Page 16: Power Off

    Power Off Tips - Make sure there is cellular signal To turn the unit off, first wake up the where the camera is being setup. LCD screen and then depress and hold the power button until the LCD - Make sure the SIM card is activated turns off.

  • Page 17: Image Stamp

    Image Stamp Power Port WGI Cameras come standard with Pictures Display: an external power port. You must open the weather resistant cover and use a Wildgame Innovations 6 Volt camera battery accessory. 087°F 08:15PM 11-12-2011 0200 A- Temperature B- Time...
  • Page 18 Mounting Adjustable sides to fit almost any size tree. When mounting to a tree, first latch the 2 bungee cords through the mounting holes on the left or right side of the camera. Then, stretch the cords around the tree and latch the other ends of the bungee cords through the mounting holes on the opposite side of the camera.
  • Page 19 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCONNECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.

  • Page 20: Retrieving Images

    Retrieving Images (SD Card in Camera) Method 1: Leave SD card in camera Please select Removable Disk from this A. First, make sure that the camera is pow- menu (or double click on the graphical icon). ered OFF. Next, plug the USB cable into the F.
  • Page 21 Retrieving Images (SD Card Reader) Method 2: Remove SD card and use card left of your screen and select “Computer”. reader The summary view will then be illustrated A. First, remove the SD Card from the cam- on the right hand side of the window where era unit itself by pressing on it to where it by the “Devices with Removable Storage”...

  • Page 22: Format Sd Card

    Format SD Card SDXC cards are not supported. Having trouble with your SD card? Try this. 1. Connect the SD card to your computer. If your computer has an SD card slot you can insert the SD card directly into the port. NOTE: If you are using a MicroSD card, you will need an adapter to allow it to fit into standard SD card ports.
  • Page 23 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# C8B5-7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 24: Warranty

    Warranty DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, visit our website and register your product at www.wildgameinnovations. com.
  • Page 25 page 24...
  • Page 26 FCC with the device transmitting at its highest certified power level in all tested frequency bands. 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are trademarks of Wildgame Innovations, LLC. “Flextime” is a trademark of WGI Innovations, LTD.
