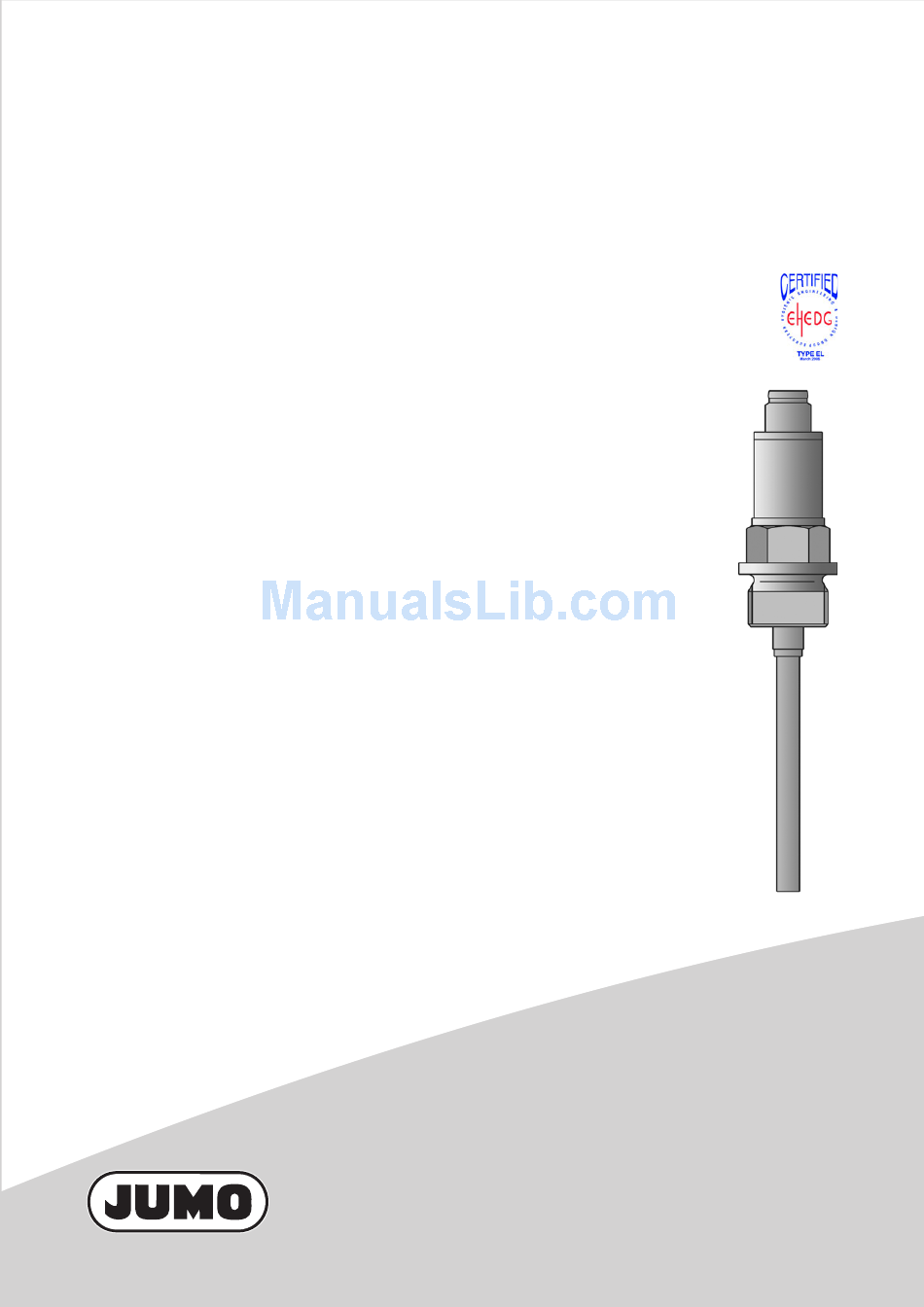

- Page 1 JUMO Dtrans T100 Screw-in RTD temperature probe with transmitter B 902815.0 Operating Instructions 2016-02-17/00495568...
-
Page 3: Table Of Contents
Contents Introduction ............... 4 Identifying the device version ........5 Type designation ..................5 Scope of delivery ..................7 Accessories for programmable 2-wire transmitter ........7 Installation ..............8 Connection diagram ..................8 Connection example with power supply unit ..........9 Connection example with supply isolator .......... -
Page 4: Introduction
1 Introduction The screw-in RTD temperature probe, which has a compact design, consists of a protection tube with an integrated temperature sensor, a process connection, and an attached housing for the transmitter electronics. The built-in programmable 2-wire transmitter converts the resistance value into a current signal. The screw-in RTD temperature probe with programmable 2-wire transmitter is used for measuring temperatures from -50 to +150 °C (-58 to +302 °F), with an extension up to 260 °C (500 °F). -
Page 5: Identifying The Device Version
2 Identifying the device version 2.1 Type designation Order details: JUMO Dtrans T100 Screw-in RTD temperature probe with transmitter - Product with an integrated transmitter is not intended for export to the USA! - (1) Basic type 902815/20 Screw-in RTD temperature probe with programmable transmitter, connection: M12 ×... - Page 6 Varivent connection DN 32/25 with EHEDG certification Varivent connection DN 50/40 with EHEDG certification Ball weld-in pocket (material 316 Ti) JUMO PEKA with EHEDG certification (8) Protection tube material Stainless steel 316 L (mat. ref. 1.4404 or 1.4435) Stainless steel 316 Ti (mat. ref. 1.4571) (upon request)
-
Page 7: Scope Of Delivery
2 Identifying the device version 2.2 Scope of delivery - 1 Operating Instructions B 902815.0 2.3 Accessories for programmable 2-wire transmitter - Setup program on CD-ROM, multilingual, part no. 00485016 - Configuration cable, 4-pole, with plug and socket M12 × 1 and RJ-45 Western plug, part no. -
Page 8: Installation
3 Installation 3.1 Connection diagram M12 × 1 machine connector, 4-pole according to IEC 60947-5-2 Warning Do not connect pin 2 and pin 4 to the voltage! Electrical connection Voltage supply 8 to 35 V DC Current output 4 to 20 mA Setup communication via special configuration cable (for configuration only,... -
Page 9: Connection Example With Power Supply Unit
3 Installation 3.2 Connection example with power supply unit 3.3 Connection example with supply isolator... -
Page 10: Setup Program
4 Setup program Configuration from a PC The setup program is available for configuring the programmable 2- wire transmitter from a PC. The connection is made using a special configuration cable with a M12 × 1 machine connector and M12 × 1 socket, and a RJ-45 Western plug. -
Page 11: Configurable Parameters
4 Setup program 4.1 Configurable parameters Setup Parameter Value range Factory level setting Hardware Device type Meas. point TAG number Measuring Offset 0.0 °C range Range start 0.0 °C °C or °F, Range end +150 °C 100.0 °C configurable or +260 °C with extension Analog Reversion of the... -
Page 12: Software Requirements
4 Setup program 4.2 Software requirements - Microsoft Windows XP or higher 4.3 Important information about Windows user administration If more than one user is administered by the computer, then the user who is logged in should be the one who will subsequently be working with the program. -
Page 13: Connection Arrangement
- It links JUMO devices to a PC through an electrically isolated connection. The RJ-45 Western plug is specially adapted to JUMO devices, and is not suitable for third-party equipment. - Page 14 (+) PIN 1 8—35 VDC blue (-) PIN 3 white black M12 socket PVC 4-pole connecting cable Part no. 00404585 M12 plug Configuration cable Part no. 00484692 M12 socket JUMO Dtrans T100 Diagram 1: Connection arrangement for setup with JUMO Dtrans T100...
-
Page 15: Dimensions
5 Dimensions 5.1 Basic types Basic type 902815/20... Basic type 902815/21... with extension... -
Page 16: Process Connection Pa
5 Dimensions 5.2 Process connection PA 103 3/8 104 1/2 Screw fitting Screw fitting with CIP-compliant conical seal Ø 25 613 40/1.5" Ø 50.5 611 10/20 Ø 34 616 50/2" Ø 64 613 25/1" Ø 50.5 617 2.5" Ø 77.5 Clamping nipple according to DIN 32676 (clamp) - Page 17 5 Dimensions PA DN D1 L1 L2 601 10 Ø 22 Ø 18 Ø 38 9 RD 28 × 1/8 604 25 Ø 44 Ø 35 Ø 63 13 21 RD 52 × 1/6 605 32 Ø 50 Ø 41 RD 58 ×...
- Page 18 Varivent connection Ball weld-in pocket Varivent Clamp Aseptic Weld-in socket DN 25/32 DN 25/32/40 DN 40 Ø 55 mm DN 40-125 DN 50 DN 50 NKS DN 40 - JUMO PEKA PA 997 Process connection adapter see data sheet 409711...
-
Page 19: Technical Data
6 Technical data Input Measurement input Pt1000 temperature sensor, EN 60751, class A, 4-wire circuit Measuring ranges Basic type 902815/20... : -50 to +150 °C Basic type 902815/21... : -50 to +260 °C with extension Tolerance limits 0.15 + 0.002 × |t|, class A |t| is the numerical value for the temperature in °C without taking the sign into account... - Page 20 6 Technical data Overrange Linear rise up to 20.5 mA (according to NAMUR recommendation 43) ≤ 3.6 mA or ≥ 21.0 mA (configurable) Probe short-circuit/ probe or lead break ≤ 25 mA Current limiting on probe short-circuit or probe break Output Output signal Proportional DC current...
- Page 21 6 Technical data Galvanic isolation Without galvanic isolation between sensor and output Leakage resistance > 100 MΩ at DC 100 V measured at room temperature between connection terminals and case Reverse polarity protection ≤ ±0.01 % per V deviation from 24 V Voltage supply error The % value refers to the range end value 20 mA...
- Page 22 6 Technical data...
- Page 24 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow - Essex CM20 2DY, UK Phone:...
