4 CABLING

1. All fiber connections are made on the front of the set top unit. Verify that the POWER
LED is lit.
Danger: Infrared radiation is invisible and can seriously damage the retina of the eye. Do not
look into the optical connector of an operational transmitter, or into the end of an active fiber. A
clean, protective cap or hood MUST be immediately placed over any radiating connector or
optical fiber to avoid exposure to potentially dangerous amounts of radiation. This practice also
helps prevent contamination of connectors and adapters. Do not assume laser power is turned
off or the fiber is disconnected at the other end.
2. Remove dust covers from the fiber cable ends and from the front of the media converter.
Caution: Always allow sufficient fiber length to permit routing without severe bends. Fibers
may be permanently damaged if bent/curved to a radius of less than 1.5 in. (3.81 cm).
3. Attach the fiber cable "TX" and "RX" connectors to the corresponding receptacles on the
media converter. See
Page 8
© 2004, ADC Telecommunications, Inc.

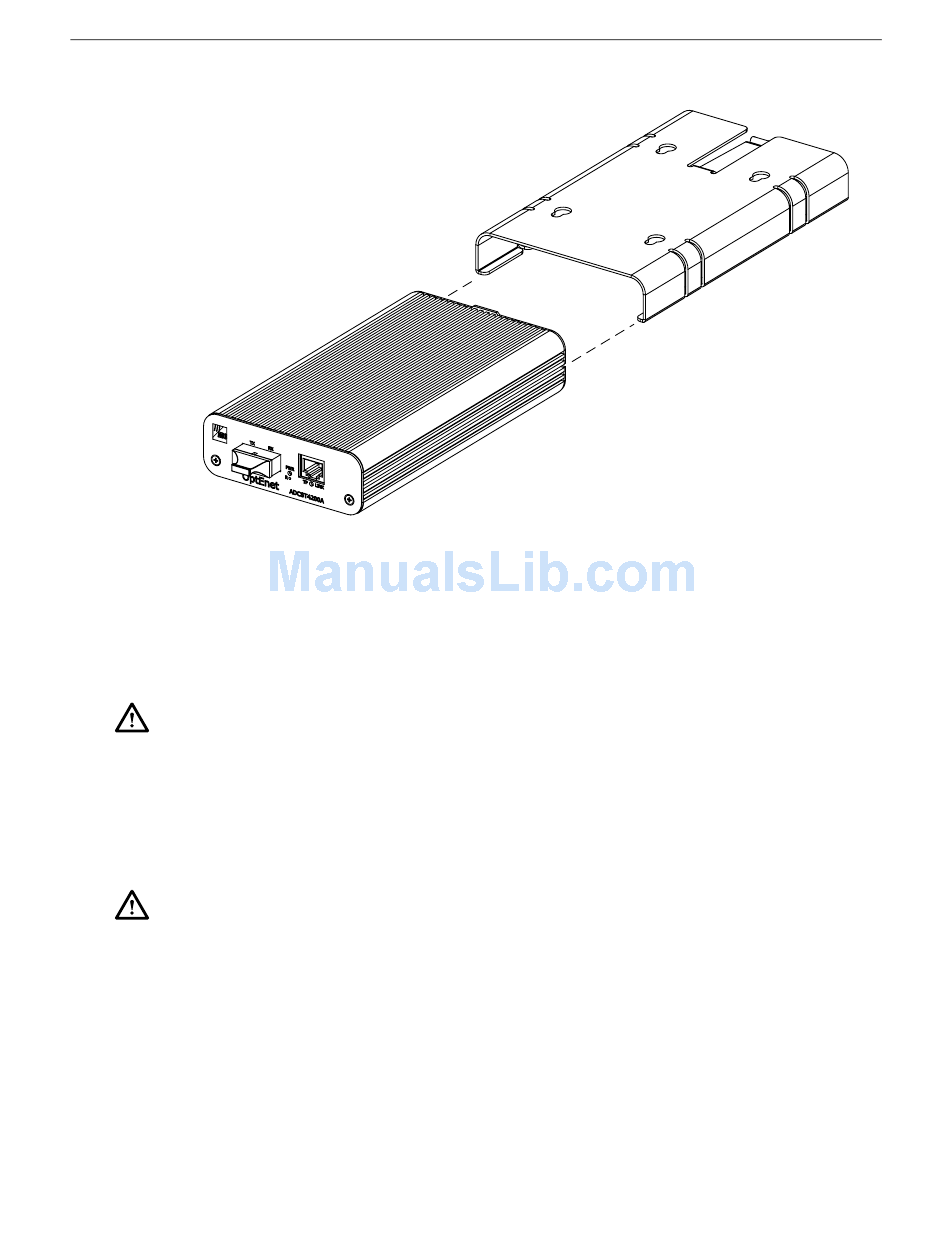

OptEnet Media Converter In Mounting Bracket
Figure 3. Inserting
Figure 4.
18917-A
