If you use a spacer block which is slightly narrower than
the workpiece as shown in the figure, you can also utilize
the wheel economically. (Fig. 12)
Long workpieces must be supported by blocks of non-
flammable material on either side so that it will be level
with the base top. (Fig. 13)

OPERATION

Hold the handle firmly. Switch on the tool and wait until
the wheel attains full speed before lowering gently into the
cut. When the wheel contacts the workpiece, gradually
bear down on the handle to perform the cut. When the cut
is completed, switch off the tool and WAIT UNTIL THE
WHEEL HAS COME TO A COMPLETE STOP before
returning the handle to the fully elevated position.
CAUTION:
• Proper handle pressure during cutting and maximum
cutting efficiency can be determined by the amount of
sparks that is produced while cutting. Your pressure on
the handle should be adjusted to produce the
maximum amount of sparks. Do not force the cut by
applying excessive pressure on the handle. Reduced
cutting efficiency, premature wheel wear, as well as,
possible damage to the tool, cut-off wheel or workpiece
may result.

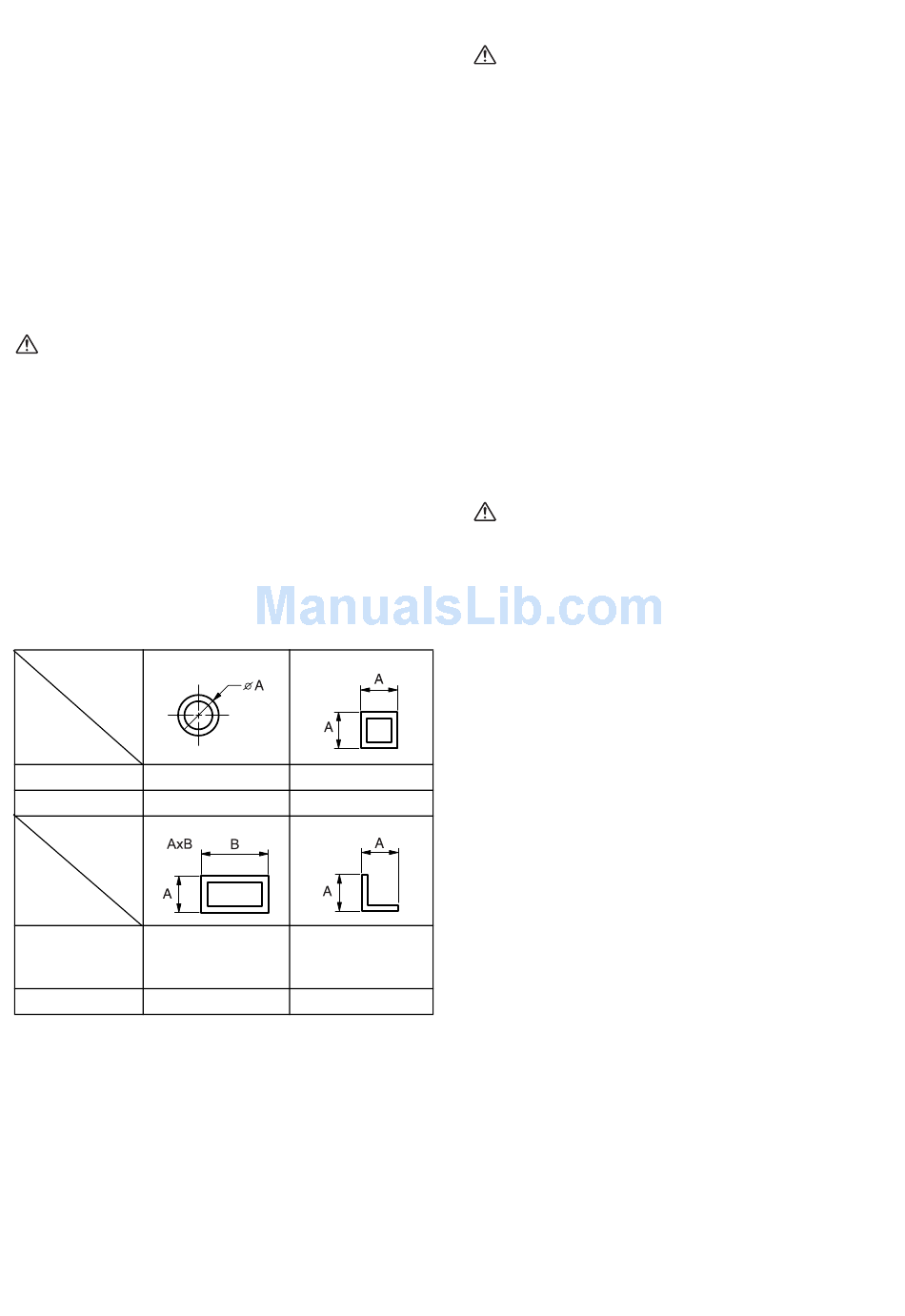

Cutting capacity

Max. cutting capacity varies depending upon the cutting
angle and workpiece shape. Applicable wheel diameter:
355 mm
Workpiece
shape
Cutting
angle
90°
45°
Workpiece
shape
Cutting
angle
115 mm x 130 mm
90° 102 mm x 194 mm
70 mm x 223 mm
45° 115 mm x 103 mm
005270
For tools with the under cover (optional
accessory) (Fig. 14)
To remove the collected dust from the under cover, place
the tool with its side up and pull the under cover open
after removing the wing bolt as shown in the figure. Be
sure to close and secure the under cover with the wing
bolt after the removal of dust.
Carrying tool (Fig. 15)
Fold down the tool head to the position where you can
attach the chain to the hook on the handle.
8
115 mm 119 mm
115 mm 106 mm
137 mm
100 mm

MAINTENANCE

CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
Replacing carbon brushes (Fig. 16)
Remove and check the carbon brushes regularly. Replace
when they wear down to the limit mark. Keep the carbon
brushes clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only
identical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes, insert the new ones and
secure the brush holder caps. (Fig. 17)
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:
• These accessories or attachments are recommended
for use with your Makita tool specified in this manual.
The use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Abrasive cut-off wheels
• Socket wrench 17
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
