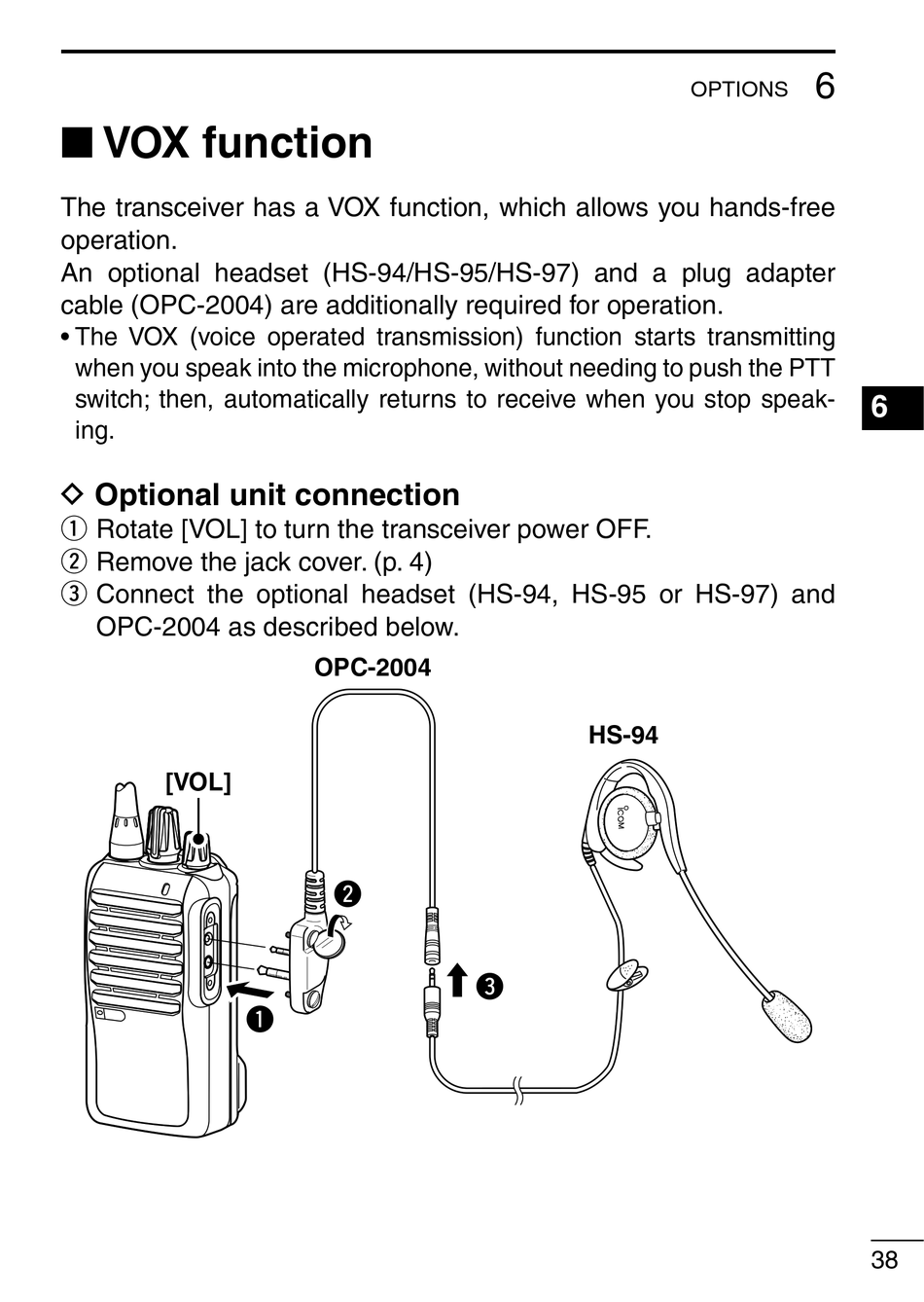

Vox Function - Icom IC-F3000 SERIES Instruction Manual

The transceiver has a VOX function, which allows you hands-free
operation.
An optional headset (HS-94/HS-95/HS-97) and a plug adapter
cable (OPC-2004) are additionally required for operation.
when you speak into the microphone, without needing to push the PTT
switch; then, automatically returns to receive when you stop speak-
ing.
D Optional unit connection
q Rotate [VOL] to turn the transceiver power OFF.
w Remove the jack cover. (p. 4)
e Connect the optional headset (HS-94, HS-95 or HS-97) and
OPC-2004 as described below.
[VOL]
OPC-2004
w
q
HS-94
e
6
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
38
