Icom IC-F3000 SERIES Instruction Manual page 38

4
D

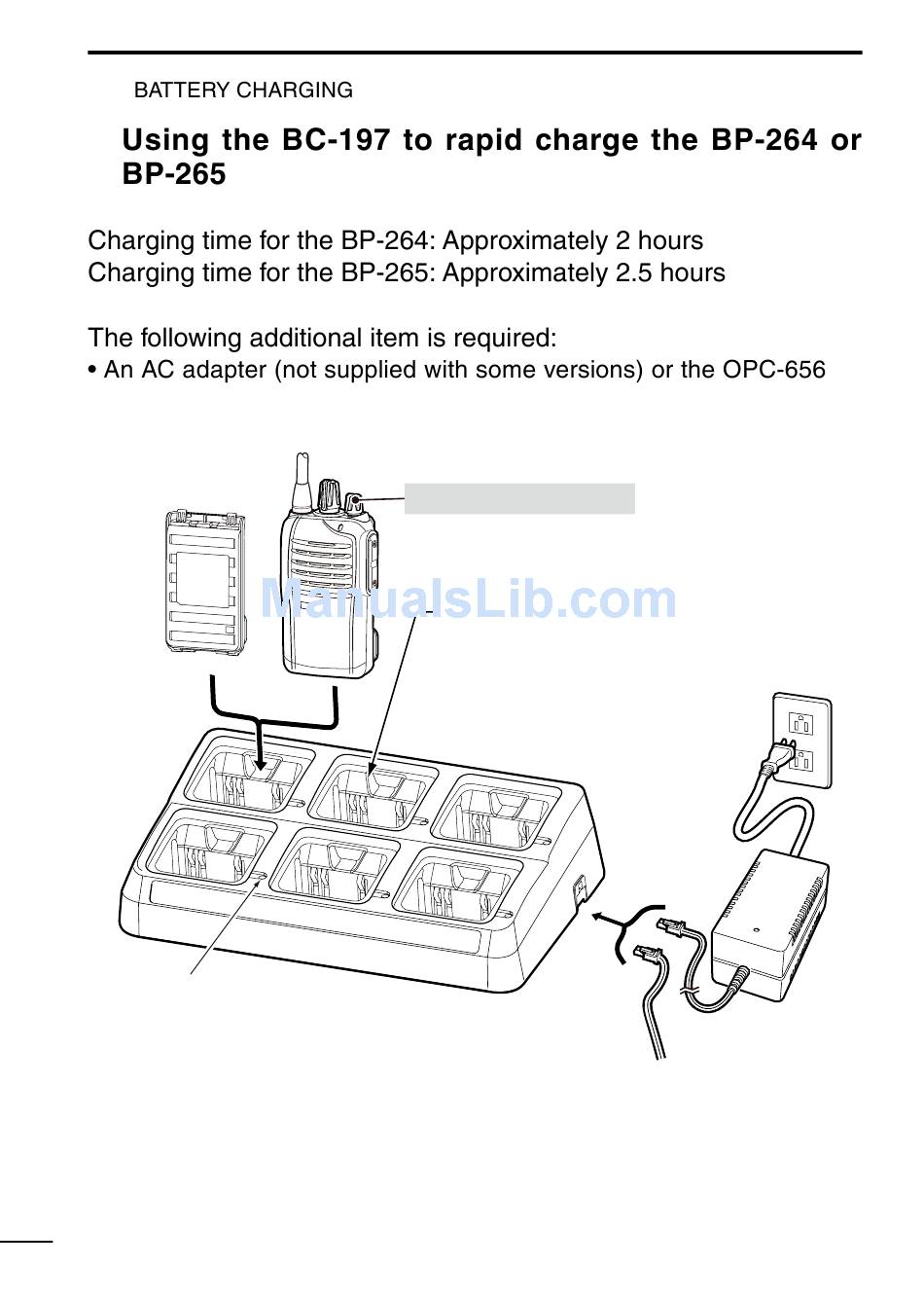

The BC-197 rapidly charges up to six battery packs.
POWER CABLE
Battery pack
Status indicator
(each indicator independently functions)
31
Transceiver
Turn OFF the power
The charger adapters are in-
stalled in each slot. The shape
of charger adapter depends
on the version of the BC-197.
OPC-656 (DC power cable)
(Connect to a DC power supply;
Red line : + Black line : _
AC adapter
(No AC adapt-
er is supplied,
depending on
the version.)
12 to 16 V/at least 7 A)
DC
