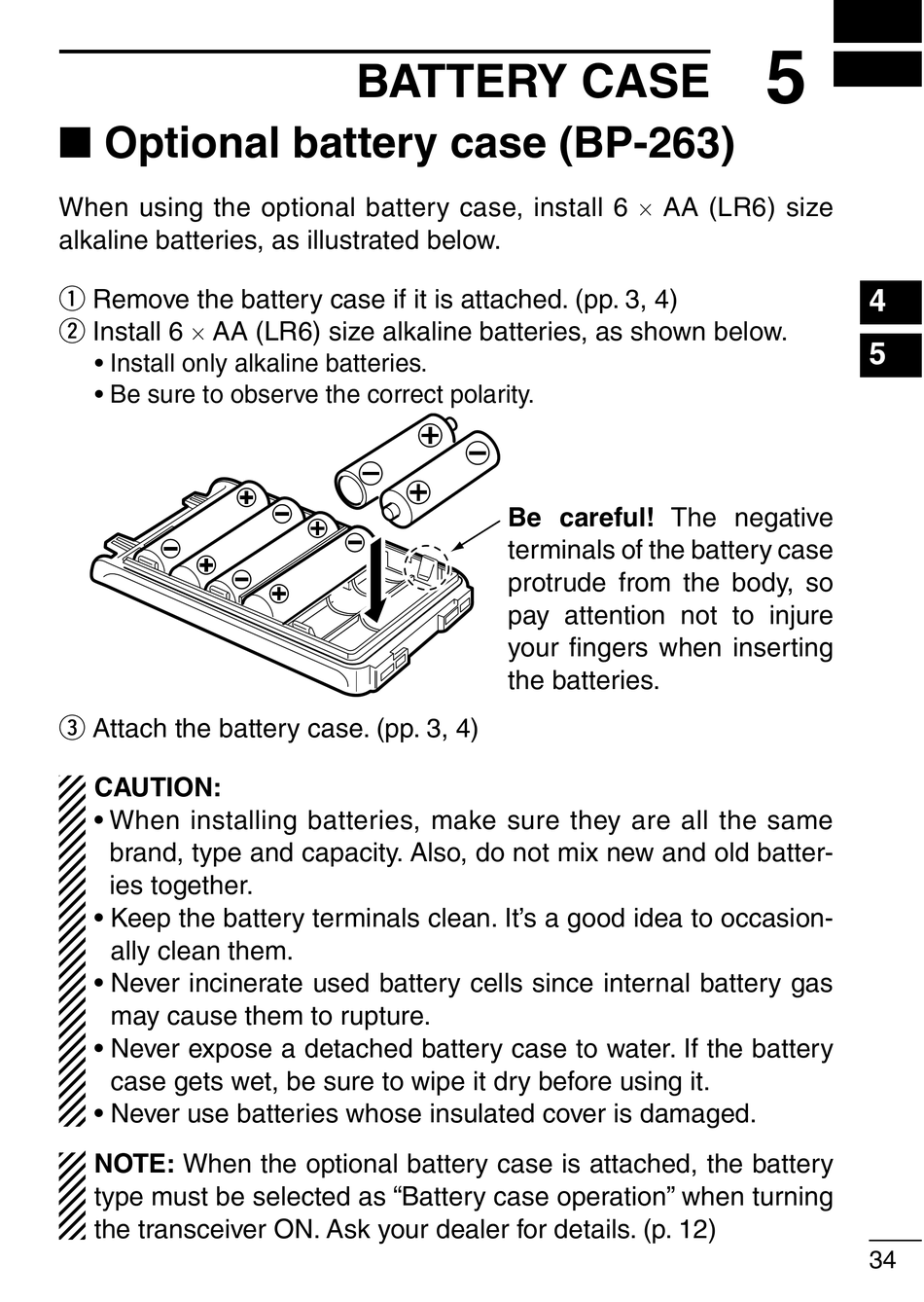

Battery Case; Optional Battery Case (Bp-263) - Icom IC-F3000 SERIES Instruction Manual

When using the optional battery case, install 6 × AA (LR6) size
alkaline batteries, as illustrated below.
q Remove the battery case if it is attached. (pp. 3, 4)
w Install 6 × AA (LR6) size alkaline batteries, as shown below.
e Attach the battery case. (pp. 3, 4)
brand, type and capacity. Also, do not mix new and old batter-
ies together.
ally clean them.
may cause them to rupture.
case gets wet, be sure to wipe it dry before using it.
When the optional battery case is attached, the battery
type must be selected as "Battery case operation" when turning
the transceiver ON. Ask your dealer for details. (p. 12)

BATTERY CASE

Be careful! The negative
terminals of the battery case
protrude from the body, so
pay attention not to injure
your fingers when inserting
the batteries.
