Receiving And Transmitting - Icom IC-F3000 SERIES Instruction Manual

3

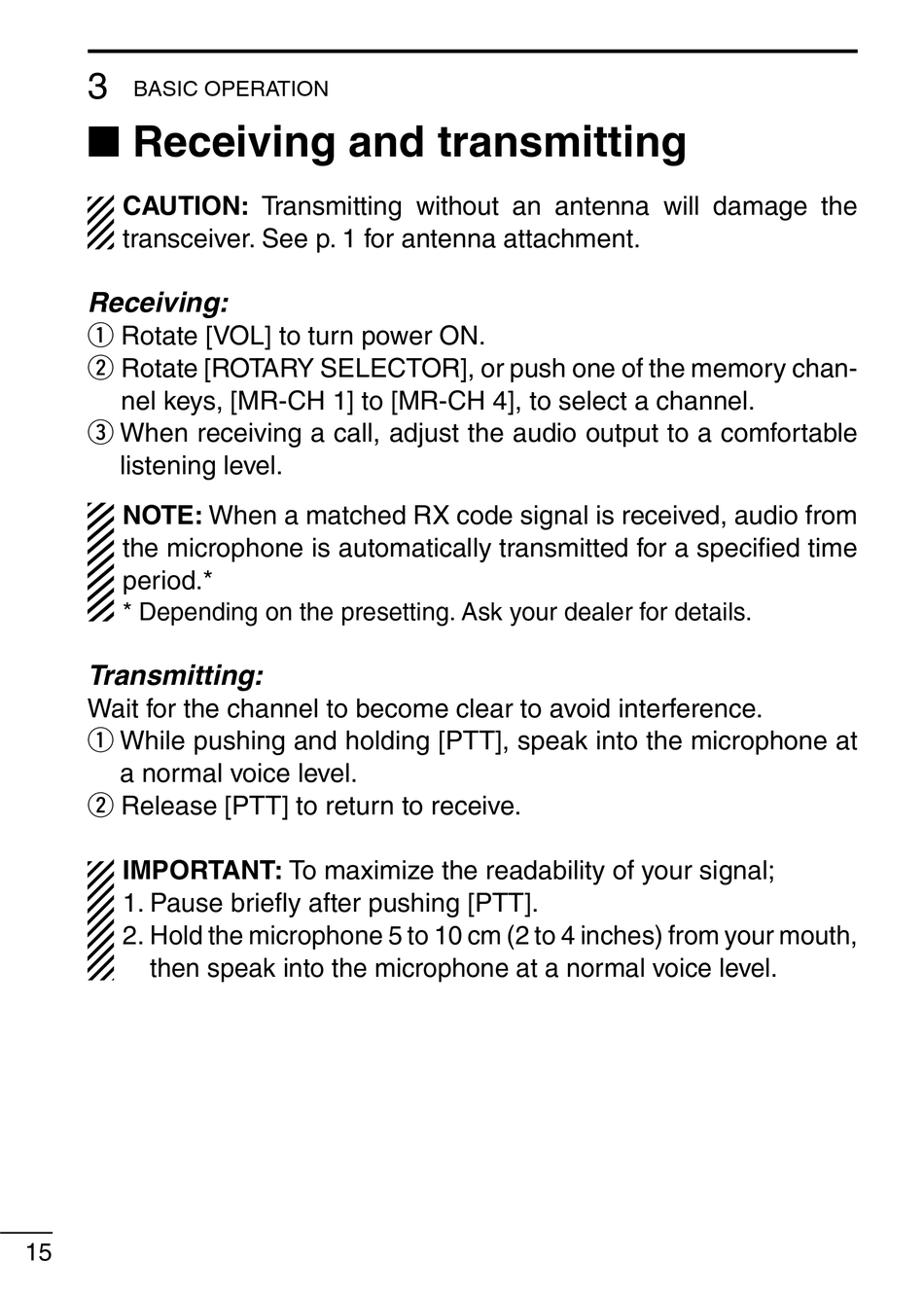

BASIC OPERATION
transceiver. See p. 1 for antenna attachment.
Receiving:
q Rotate [VOL] to turn power ON.
w
nel keys, [MR-CH 1] to [MR-CH 4], to select a channel.
e When receiving a call, adjust the audio output to a comfortable
listening level.
the microphone is automatically transmitted for a specified time
period.*
* Depending on the presetting. Ask your dealer for details.
Transmitting:
Wait for the channel to become clear to avoid interference.
q While pushing and holding [PTT], speak into the microphone at
a normal voice level.
w Release [PTT] to return to receive.
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your mouth,
then speak into the microphone at a normal voice level.
15
Transmitting without an antenna will damage the
When a matched RX code signal is received, audio from
To maximize the readability of your signal;
-
