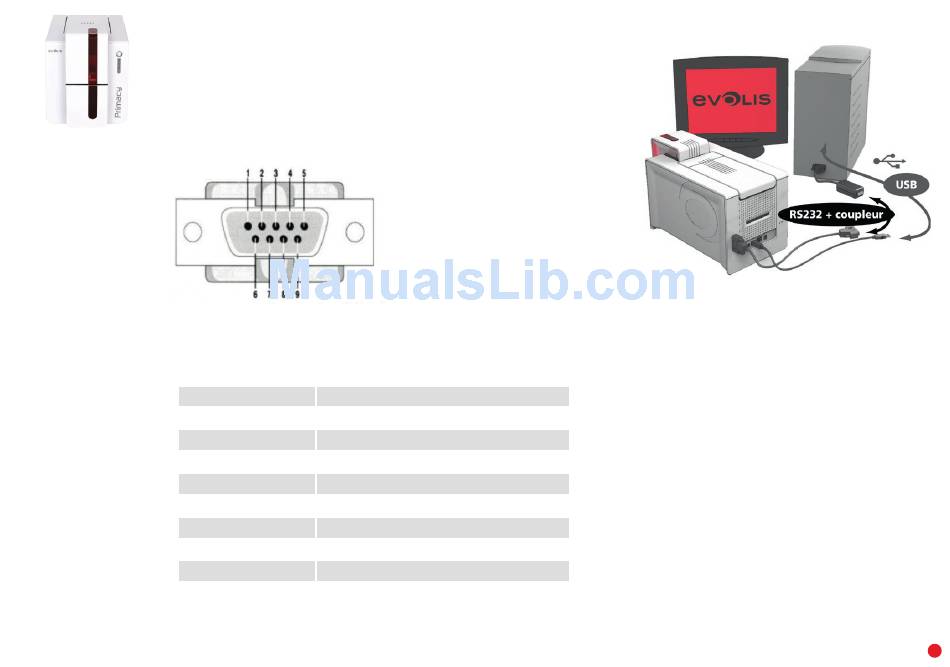

Contact station interface

Printers fitted only with a smartcard contact station (without integrated encoder) are fitted
with a female DB-9 connector which is found on the back of a printer. This connector, directly
connected to the contact station inside the printer, is also connected to an external coupler
to program the chip.
PRIMACY
DB-9
CONNECTOR PINS
1
2
3
4
5
6
7
8
9
SMARTCARD CONTACT POINTS
C1 (V c.c.)
C2 (reset)
C3 (clock)
C4 (reserved)
C5 (ground)
C6 (Vpp)
C7 (I/O)
C8 (reserved)
Card present signal
