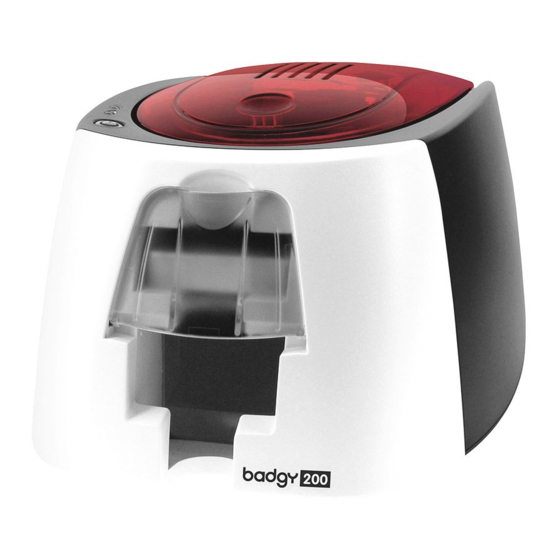

Summary of Contents for Evolis Badgy

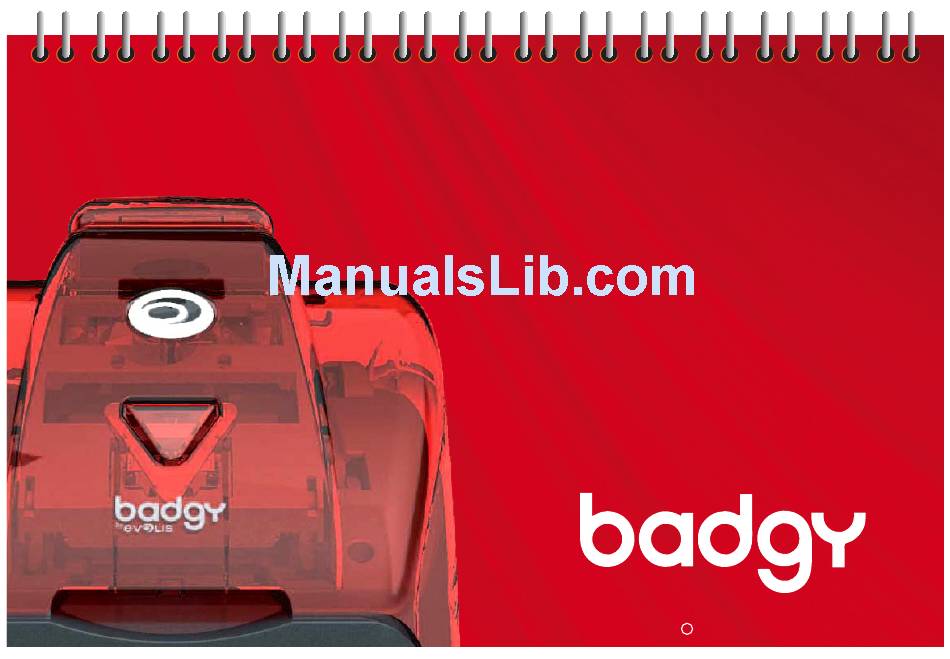

- Page 1 Evolis Card Printer c 2008. All rights reserved. Rev. A - April 2008...
- Page 2 As for all Evolis products, particular care has been used in writing this manual. But if an error has still managed to slip into these pages, please let us know by sending an email to info@evolis.com...
- Page 3 In the event of visible damage at the time of delivery, do not hesitate to contact the shipper and immediately inform your Evolis dealer who will provide you with all necessary assistance. Evolis has paid particular attention to the quality of this shipping material and we ask you to keep it in a clean, dry space.
-
Page 4: Printer Description
To reactivate the printer, press the button for 1 second and the light comes on. power supply connector Badgy may be left in stand-by at any time by pressing the button for few seconds. USB computer connector serial number label... -
Page 5: Ribbon Cartridge
The use of ribbons from any other source could seriously damage the print head, consequently entailing the immediate interruption of the factory warranty. For optimum printing quality, Evolis recommends cleaning all the equipment each time a ribbon is changed. Refer to Chapter 5 - Servicing and Maintenance. - Page 6 CARDS Badgy only uses plastic cards of 0.5mm (20mil) and 0.76mm (30mil) gauge. For optimum quality, these must comply with ISO Standard 7810. Badgy will automatically adjust for each card gauge. Loading cards Remove the card feeder by pressing the side buttons.
-
Page 7: Installing The Driver
Administrator rights to install the driver. Default printer Depending on your application, it may be imporatnt to define Badgy as a default printing peripheral device. Proceed as follows: Using the Start button at the bottom left of the Windows task bar, select Printers and Faxes. -
Page 8: Connecting The Printer
Connect the power supply unit to a grounded system outlet (plug socket). The printer is under power. The light on the control panel comes on and the print head rises and falls to indicate the correct mechanical working of the printer. If the light fails to come on, the installation has not been carried out correctly or possibly that the printer is not working properly. -
Page 9: Control Panel Messages
CONTROL PANEL MESSAGES Refer to Chapter 2 - Printer Description for details of the control panel FLASHING PRINTER READY Printer ready to receive data. PROCESSING Printer receiving data. RIBBON No ribbon in printer. Ribbon has finished. Ribbon installed incorrectly. Ribbon is cut. - Page 10 MECHANICAL PROBLEM Card jammed in printer. Mechanical part is faulty. Press the push button for one second. If the problem persists, log on to www.badgy.com for assistance. COOLING MODE Print head cooling system activated. Printer stops working for a few seconds.
-
Page 11: Printing A Test Card
PRINTING A TEST CARD To ensure your printer is working correctly, we recommend you print a test card. This card will provide certain technical information about your printer. Please retain this card for future reference. If assistance is required, log on Printing a test card Install the ribbon cartridge and place a card in the feeder. -
Page 12: Servicing And Maintenance
Evolis will not be liable if the printer is used under non-approved maintenance conditions. Indeed, the print head is subject to wear and tear. This is a very sensitive component of the printer of which lifespan can be shortened in case the neighbouring environment of the printer /print head or the cards is not dust-free. - Page 13 Recommended cleaning cycle: every ribbon change. Maintenance accessory: cleaning card. Although is recommended you clean the printer with every ribbon change, the Badgy has an alert message to warn you that cleaning is required. The cleaning light on the control panel will illuminate (after 400 cards).
- Page 14 Servicing the cleaning rollers There are two cleaning rollers in your printer - one inside near the front - the other fitted to the card feeder. The function of the cleaning rollers is to eliminate any residual dust on the cards before they enter the printing mechanism.
- Page 15 It is very important to protect the print head and any other related component handled against any electrostatic discharge. The print head is a fragile component of your printer. To prevent any damage, please comply to the following: Prior to cleaning the print head, disconnect printer from the power supply.
-
Page 16: Troubleshooting
Never use a metal tool or object to work on your equipment: you run the risk of injury or damaging the equipment. Freeing a jammed card DO NOT turn the unit off: This would lead to a loss of printing jobs in progress that are stored in the printer’s memory. - Page 17 Make sure the ribbon is not finished or damaged. Replace or reinstall as applicable. Components of the print head maybe damaged Print a test card. If the test card does not print, refer to the Trouble Shooting section on the Badgy web site (www.badgy.com) for more information.
- Page 18 Incorrect cards being used. Ensure cards corresponds to the required specification. (Refer to chapter 4) It is recommended that all cards are purchased from an Evolis supplier. The use of cards from another source may result in unsatisfactory printing. White horizontal lines Ribbon cartridge not installed correctly.
- Page 19 If horizontal (white) lines appear on the card, some components of the print head may be dirty or damaged. Refer to Chapter 9 - Servicing and Maintenance. If the problem continues, refer to the Trouble Shooting section on the Badgy web site (www.badgy.com) for more information.
- Page 20 ASSISTANCE In order to assist you on a day-to-day basis, Evolis has created a web site - For unresolved problems, log on this site and click on ‘Support’ for technical assistance and trouble shooting. It maybe necessary to provide the following information: The model and serial number of your printer.
-
Page 21: Specifications
WindowsTM XP , 2003 Server and Vista 32 & 64 bits. Software Office Cards for badges personalization and printing. Ribbon type Colour ribbon for 100 prints (YMCKO). Warranty 1 year (printer and print head), unlimited number of prints. Card types All PVC, PVC laminated, composite and PET plastic cards. - Page 22 Output hipper capacity 10 cards of 0.76 mm (30 mil) guage. Printer dimensions (L x H x W) Without output hopper: 271 x 166 x 194mm / 10.66" x 6.53" x 7.63" With output hopper: 374 x 166 x 194mm / 14.72" x 6.53" x 7.63"...
-
Page 23: Copyright Information
All information contained herein may be subject to modification without prior notice. Evolis Card Printer accepts no liability for any possible errors herein, nor for any accidental damage or damage caused through the dissemination or the use of this guide. -
Page 24: Declaration Of Conformity
DECLARATION OF CONFORMITY This chapter covers technical specifications and certifications for the Evolis printer Concerning Safety and Electromagnetic Compatibility Manufacturer’s Name: Manufacturer’s Address: Material Designation: Year of Manufacture: I, the undersigned, Serge Olivier, Declare that I have received the assumption of the above material(s), used and installed in accordance with the notice,... - Page 25 FCC Statement (for U.S.A.) Federal Communications Commission Radio Frequency Interferences Statement Badgy model conforms to the following specifications: FCC Part 15, Subpart A, Section 15.107(a) and Section 15.109(a) Class B digital device. Supplemental information: This equipment has been tested and finds to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
