Removing printed cards

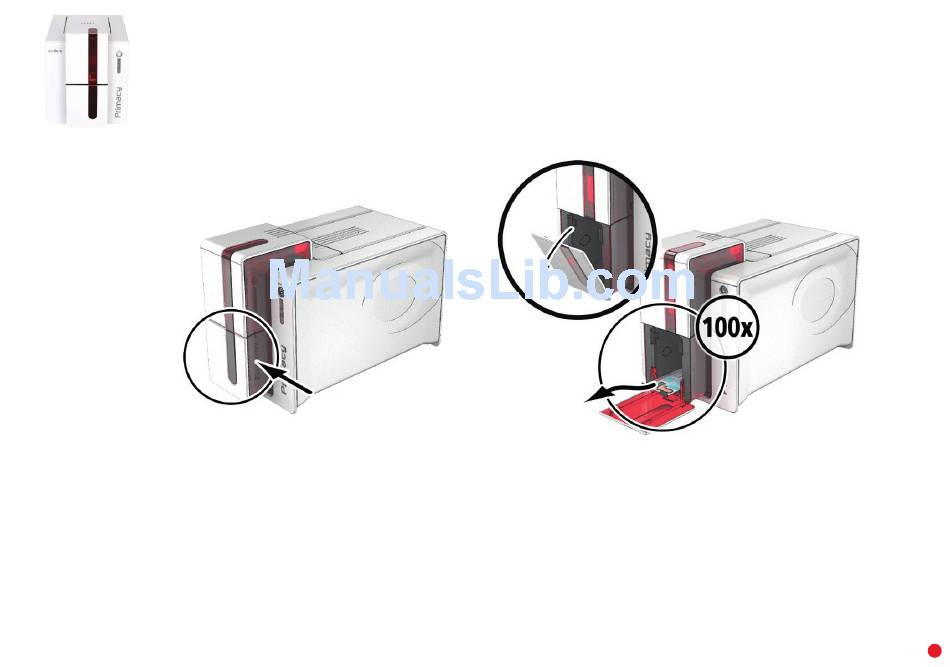

Once the print cycle is complete, cards are delivered into the output hopper below the card feeder. This output hopper is designed to collect
the printed and/or encoded cards. The printer is equipped with an output hopper with a maximum capacity of 100 x 0.76 mm cards.
PRIMACY

Adjusting card thickness

The printer is equipped with a manual card thickness adjustment mechanism which can be reached through the card feeder when open.
The printer accepts cards between 0.25 mm and 1.25 mm thick (10 to 50 mil). The factory setting is 0.76 mm.
