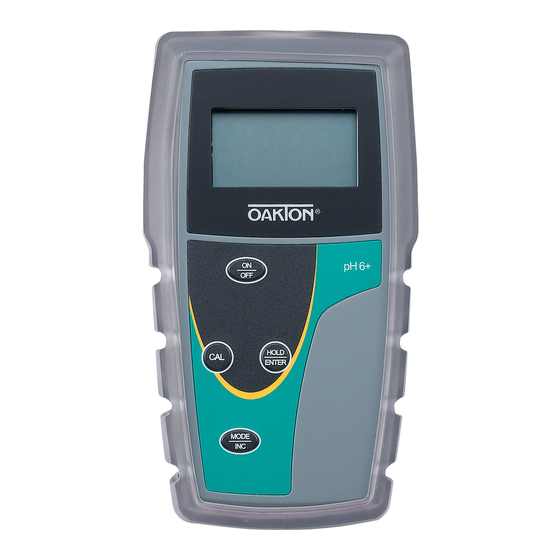

Oakton pH 5+ Instruction Manual

Portable meters
Hide thumbs Also See for pH 5+:
Table of Contents

Advertisement

Quick Links

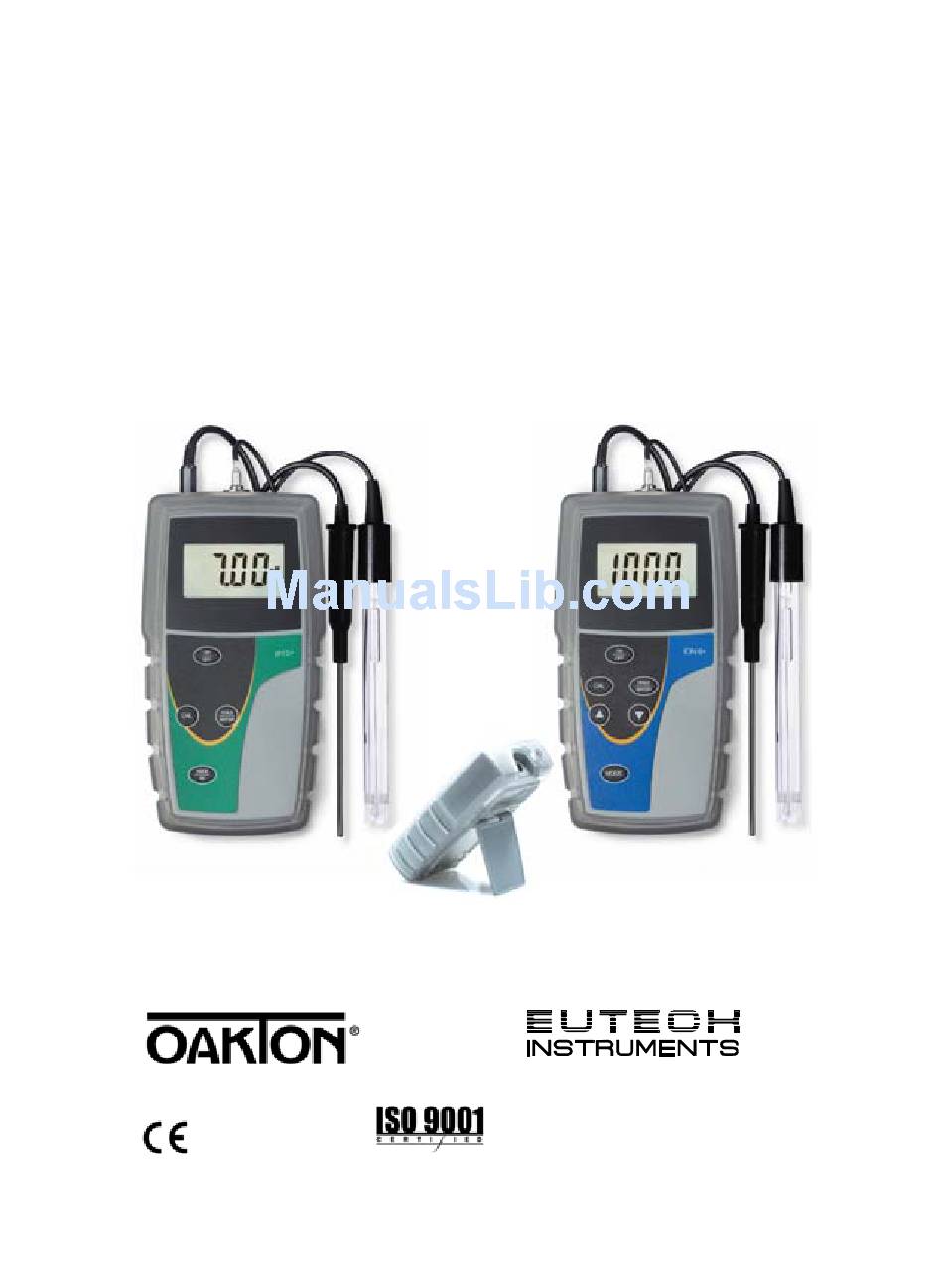

Instruction Manual
pH 5+
pH/°C
pH 6+
pH/°C/mV
Ion 6+
pH/°C/mV/Ion
Technology Made Easy ...
68X576801 Rev 0 07/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pH 5+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oakton pH 5+

Summary of Contents for Oakton pH 5+

  • Page 1 Instruction Manual pH 5+ pH/°C pH 6+ pH/°C/mV Ion 6+ pH/°C/mV/Ion Technology Made Easy ... 68X576801 Rev 0 07/2011...

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ................. 1 GETTING STARTED..............2 Description of Keypad Functions................2 Description of LCD Annunciators ................3 Inserting & Removing the Rubber Armor / Stand............4 Inserting New Batteries .....................4 Connecting Electrodes and Temperature Sensor............5 Powering the Meter On .....................5 CALIBRATION................

  • Page 4: Introduction

    Instruction Manual pH 5+, pH 6+, Ion 6+ 1. INTRODUCTION Thank you for selecting our pH 5+, pH 6+, or Ion 6+ portable meter. This microprocessor-based handheld instrument is both economical and easy to use. The pH 5+ measures pH and temperature ( The pH 6+ and Ion 6+ measure pH, mV (ORP) and temperature ( The Ion 6+ can also measure direct ion concentration of various ions (mono and divalent) using an ion selective electrodes (ISE).

  • Page 5: Getting Started

    Instruction Manual pH 5+, pH 6+, Ion 6+ 2. GETTING STARTED Description of Keypad Functions The pH 5+ and pH 6+ have four keys, while the Ion 6+ has six keys on its splash-proof keypad as shown here: pH 5+ / pH 6+ Ion 6+ Powers the meter on and off.

  • Page 6: Description Of Lcd Annunciators

    Instruction Manual pH 5+, pH 6+, Ion 6+ CALIBRATE: Press to begin calibration of the selected mode. Press again during calibration to abort calibration and return to measurement mode without confirming any values. During setup mode, function is similar to “escape” or “go back”, returning to the previous screen.

  • Page 7: Inserting & Removing The Rubber Armor / Stand

    Instruction Manual pH 5+, pH 6+, Ion 6+ Inserting & Removing the Rubber Armor / Stand Before removing the meter from the rubber armor, disconnect any electrodes. Push out from the bottom edges of meter until it is completely out of boot. To insert meter into the armor, slide in from the top of meter before pushing the bottom edges of meter into position.

  • Page 8: Connecting Electrodes And Temperature Sensor

    Instruction Manual pH 5+, pH 6+, Ion 6+ Connecting Electrodes and Temperature Sensor Align the BNC connector slots with the posts of meter’s socket and rotate connector clockwise until it locks—do not force. To remove, rotate the connector in counter- clockwise direction until it unlocks, and slide the connector off the socket.

  • Page 9: Calibration

    Instruction Manual pH 5+, pH 6+, Ion 6+ 3. CALIBRATION 3.1 pH Calibration The 5+ and 6+ meter is capable of calibrating up to 5 pH values using the USA or NIST buffer groups, or 2 pH values using the Low Ionic buffer group. All new calibration values will automatically override existing calibration data.

  • Page 10: Ph Calibration Procedure

    Instruction Manual pH 5+, pH 6+, Ion 6+ pH Calibration Procedure 1. Turn on the meter and select pH mode by pressing if necessary. 2. Press to begin pH calibration mode. “” (calibrate) will display briefly. Notice that the pH reading and “pH” annunciator will both blink. 3.

  • Page 11: Changing The Ph Buffer Group

    Instruction Manual pH 5+, pH 6+, Ion 6+ Changing the pH Buffer Group 1. Power off the meter while in pH mode. Press and hold then press . If  successful, “ ” will blink on the display. Release both keys. 2.

  • Page 12: Resetting User Calibrated Values

    Instruction Manual pH 5+, pH 6+, Ion 6+ Resetting User Calibrated Values The meter can be completely reset to factory default values, or partially reset for calibration values only using the procedure below. Reset Type Description No reset is performed; meter returns to measurement No () Reset of either pH, mV, Ion, or Temperature calibration Calibration ()

  • Page 13: Ion Calibration (Ion 6+ Only)

    Instruction Manual pH 5+, pH 6+, Ion 6+ 3.2 Ion Calibration (Ion 6+ only) Ion measurement requires an ion selective electrode (ISE)—sold separately. An ISE will measure one specific ion of interest—such as ammonia or fluoride. The available calibration values for the Ion 6+ are 0.1, 1.0, 10.0, 100.0, and 1000 ppm. Choose any 2 or 3 consecutive values to use and prepare the corresponding ion calibration solutions.
  • Page 14 Instruction Manual pH 5+, pH 6+, Ion 6+ 5. When the mV reading has stabilized, the mV annunciator will stop blinking. Press to confirm the value. “” (confirm) will display briefly. The display will show the next highest calibration standard value. Rinse the electrode with clean water. 6.

  • Page 15: Millivolt (Mv) Calibration (6+ Only)

    Instruction Manual pH 5+, pH 6+, Ion 6+ 3.3 Millivolt (mV) Calibration (6+ only) Oxidization Reduction Potential (ORP or Redox) as measured by an ORP electrode in mV units is not a precise measurement, but is useful as a relative indicator. As such, mV offset adjustment is not meant to enhance accuracy, but rather to make readings comparable to a reference.

  • Page 16: Temperature Calibration

    Instruction Manual pH 5+, pH 6+, Ion 6+ 3.4 Temperature Calibration With Temperature Probe (Automatic Temperature Compensation) The thermistor sensor used for temperature measurement is accurate and stable, so frequent calibration isn’t required. Temperature calibration is recommended upon electrode replacement, whenever the temperature reading is suspect, or if matching against a certified thermometer is desired.

  • Page 17: Without Temperature Probe (Manual Temperature Compensation)

    Instruction Manual pH 5+, pH 6+, Ion 6+ Without Temperature Probe (Manual Temperature Compensation) If a temperature probe is not connected, the meter compensates for pH response based on the factory default value at 25.0 °C. This default temperature can be manually adjusted using the procedure below.

  • Page 18: Measurement

    Instruction Manual pH 5+, pH 6+, Ion 6+ 4. MEASUREMENT Taking Measurements 1. Before measurement, rinse the pH/ORP electrode or Ion Selective Electrode and temperature probe with clean water. 2. Power on the meter. Press key to select your desired mode of operation (pH, mV, Ion, or Temperature).

  • Page 19: Troubleshooting

    Instruction Manual pH 5+, pH 6+, Ion 6+ 5. TROUBLESHOOTING Problem Cause Solution Batteries absent or No display Insert batteries using correct polarity installed incorrectly “LO” Low battery Replace batteries. “ - - - ” on Ion 6+ requires calibration Perform either 2 or 3 point ion calibration display a) Dry electrode...

  • Page 20: Specifications

    Instruction Manual pH 5+, pH 6+, Ion 6+ 6. SPECIFICATIONS Model pH 5+ pH 6+ Ion 6+  Ion Range 0.01 to 0.99; 1.0 to 199.9; 200 to 1999  Resolution 0.01 / 0.1 / 1  Accuracy ± 1 % full scale 2 or 3 consecutive points;...

  • Page 21: Replacements And Accessories

    Instruction Manual pH 5+, pH 6+, Ion 6+ 7. REPLACEMENTS AND ACCESSORIES Part number Ordering Code Item Description Eutech Oakton Instruments Instruments ECPH501PLUS pH 5+ with ATC probe 35613-50 01X244911 pH 5+ with pH and ATC probes — 35613-52 pH 5+ with pH and ATC probes and solutions in ECPH502PLUSK —...
  • Page 22 Instruction Manual pH 5+, pH 6+, Ion 6+ Part number Ordering Code Item Description Eutech Oakton Instruments Instruments pH/ATC electrode, plastic, gel-filled, double- — 35811-72 junction ECFC7960101B ORP electrode, plastic, gel-filled, single-junction 59001-75 01X256612 ECFC7960201B ORP electrode, plastic, gel-filled, double-junction...

  • Page 23: Warranty

    Instruction Manual pH 5+, pH 6+, Ion 6+ 8. WARRANTY This meter is supplied with a warranty against significant deviations in material and workmanship for a period of THREE years from date of purchase whereas probe with a SIX month warranty. If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return –...
  • Page 24 Instruction Manual pH 5+, pH 6+, Ion 6+ For more information on our products, please contact our channel partner or visit our websites listed below: Oakton Instruments Eutech Instruments Pte Ltd 625 E Bunker Court Blk 55, Ayer Rajah Crescent,...
