Instruction Manual
WP PCD 650

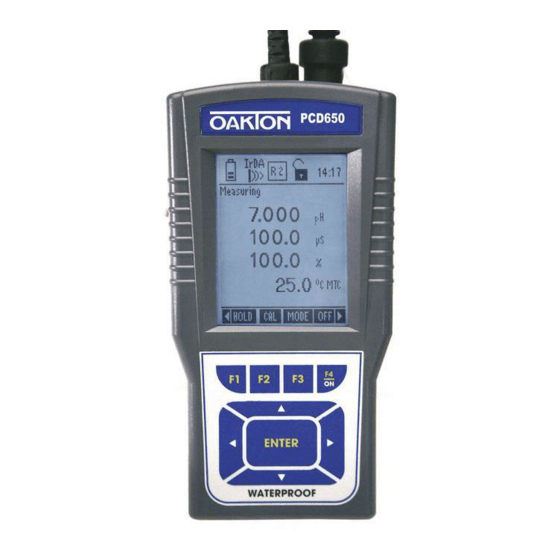

Waterproof Handheld pH/Cond/DO Meter
68X415307 Rev. 0 Feb 07
Technology Made Easy ...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP PCD 650 and is the answer not in the manual?

Questions and answers

Related Manuals for Oakton WP PCD 650

Summary of Contents for Oakton WP PCD 650

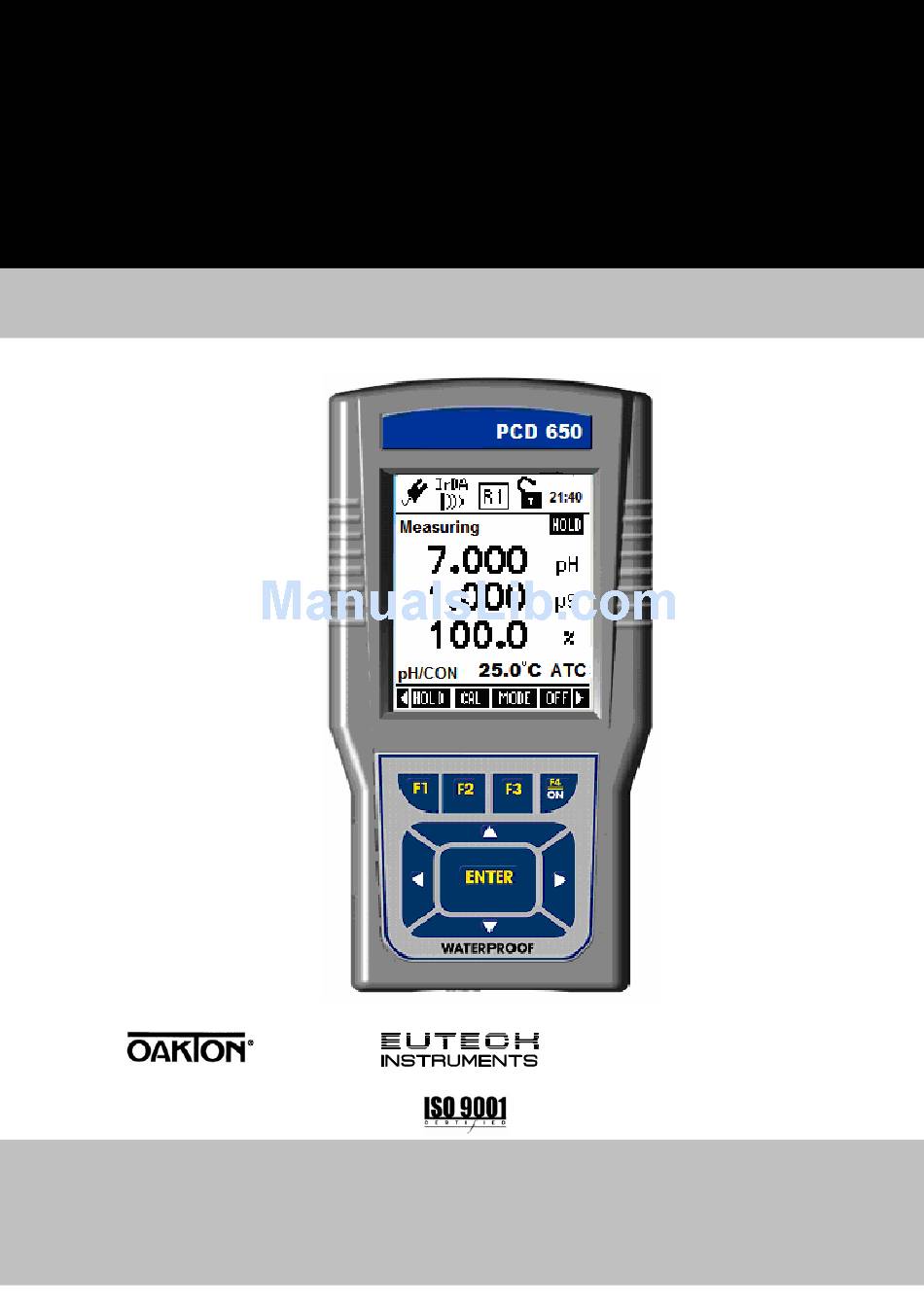

  • Page 1 Instruction Manual WP PCD 650 Waterproof Handheld pH/Cond/DO Meter 68X415307 Rev. 0 Feb 07 Technology Made Easy ...
  • Page 3 Eutech Instruments / Oakton Instruments. Eutech Instruments/ Oakton Instruments cannot accept any responsibility for damage or malfunction of the unit due to improper use of the instrument. Copyright ©2006 All rights reserved.

  • Page 5: Table Of Contents

    Table of Contents 1. Getting Started ......................1 About the Meter........................1 Display & Keypad ........................2 1.2.1 Display Overview......................2 1.2.2 Key Functions ........................ 3 Inserting Batteries ........................4 1.3.1 Inserting batteries for the first time ................4 1.3.2 Changing batteries subsequently .................. 5 1.3.3 Connecting DC Power adapter..................
  • Page 6 TDS Measurement Mode ..................... 27 2.8.1 Indicators in TDS measurement mode................ 27 Salinity Measurement Mode....................28 2.9.1 Indicators in salinity measurement mode ..............28 2.10 Resistivity Measurement Mode .................... 29 2.10.1 Indicators in Resistivity measurement mode............29 2.11 Percentage Saturation (%) Measurement Mode..............30 2.11.1 Indicators in percentage saturation measurement mode ..........
  • Page 7 4. Setup Mode ......................71 About Setup Mode........................ 71 4.1.1 Accessing Setup mode (no password protection enabled) ......... 71 4.1.2 Accessing Setup mode when password protection enabled........73 4.1.3 Modifying Setup parameters..................74 System Setup ........................75 4.2.1 System Settings – Page 1 ................... 75 4.2.2 System Settings –...
  • Page 8 Return of Goods ......................... 110 Guidelines for Returning Unit for Repair ................110...

  • Page 9: Getting Started

    Instruction Manual PCD 650 1. Getting Started 1.1 About the Meter Thank you for purchasing the PCD 650 waterproof multi parameter portable series meter. PCD 650 series meter are micro-controller based instruments and are designed with many user friendly features to measure up to 10 parameters including pH/ mV/ ISE/ Conductivity/ TDS /Salinity/ Resistivity/ DO (%)/ DO (mg/L)/ Temperature.

  • Page 10: Display & Keypad

    Instruction Manual PCD 650 1.2 Display & Keypad 1.2.1 Display Overview The large monochrome display shows detailed information about measurements, various indicators, annunciators, functions and useful tips. The display consists of 3 main sections when the meter is in the measurement mode: Header –...

  • Page 11: Key Functions

    Instruction Manual PCD 650 Refer calibration mode, measurement mode & setup mode for details on indicators shown in body & footer sections. 1.2.2 Key Functions The keypad consists of: 4 – Function keys (F1, F2, F3 & F4) 4 – Navigation key 1 –...

  • Page 12: Inserting Batteries

    Instruction Manual PCD 650 1.3 Inserting Batteries The meter supports multi -power sources. 1. Four ‘AA’ size 1.5 V alkaline batteries (supplied) or, 2. 9V DC power adapter (Optional in some models). Figure 3 : Battery compartment 1.3.1 Inserting batteries for the first time 1.

  • Page 13: Changing Batteries Subsequently

    Instruction Manual PCD 650 1.3.2 Changing batteries subsequently The LCD has battery voltage level indicator. Number of bars indicates the voltage level. See Table 1 for details. When the empty battery indicator starts blinking, it is time to change the batteries. The system time might be automatically reset during the battery change.

  • Page 14: Attaching Safety Belt

    Instruction Manual PCD 650 1.4 Attaching Safety Belt The safety belt provides secured support when you hold the meter on your palm. To attach the safety belt: 1. Use a Phillips screw driver to remove four screws holding the battery cover. 2.

  • Page 15: Connecting Peripherals

    Instruction Manual PCD 650 1.5 Connecting Peripherals 1.5.1 Probes (pH/Conductivity/DO) Attach the probes with correct type of connectors as indicated in the figure below. pH Probe (BNC) DO Probe with built in temperature sensor (6-pin Connector) Conductivity Probe with built in temperature sensor (8-pin Connector) Figure 6 : Connecting ph, Cond and DO Probes...

  • Page 16: Protective Rubber Boot

    Instruction Manual PCD 650 does not require any polarizing voltage from your meter. The galvanic probe design lets you take measurements immediately – without the typical 15 minute wait of other dissolved oxygen probes. The DO probe comes with an in-built Temperature Compensation for the membrane variation and consists of two parts.
  • Page 17 Instruction Manual PCD 650 3. Insert the probes into the multi probe holder as shown in Figure 9. After assembling the electrodes into the electrode holder, ensure that the electrode top surfaces are almost level to the edges of the holder. 4.

  • Page 18: Cybercomm 600 Data Acquisition Software

    Instruction Manual PCD 650 1.6 CyberComm 600 Data Acquisition Software 1.6.1 About CyberComm 600 DAS Application The PCD 650 series meters are shipped with a companion software application called CyberComm 600 Data Acquisition Software (DAS). This ® is a simple, easy to use, Windows based PCD compatible software application which lets you download your measurement data, calibration reports &...
  • Page 19 Instruction Manual PCD 650 Figure 10 : Computer recognizes the meter 4. The ‘Found New Hardware Wizard’ starts automatically. Select ‘Yes, this time only’ option for the first screen. (Figure 11) .Click Next to continue. Figure 11 : First screen of ‘Found New Hardware Wizard’ 5.

  • Page 20: Connecting To The Meter

    Instruction Manual PCD 650 6. Once the wizard completed the installation (Figure 13), click Finish to close the wizard. Figure 13 : ‘Found New Hardware Wizard’ completed 7. In CyberComm 600 application screen, click Find Device button. The screen shows a message “Finding device”. When CyberComm recognizes the meter it shows “Instrument in Range, click Connect button to establish connection…”...
  • Page 21 Instruction Manual PCD 650 Figure 14 : CyberComm finds the meter 4. When CyberComm recognizes the meter it shows “Instrument in Range, click Connect button to establish connection…” Press Connect button. Figure 15 : CyberComm establishing connection with the meter 5.
  • Page 22 Instruction Manual PCD 650 Notes: The communication between CyberComm and the meter is uni- directional. The connection is initiated by the meter when you press PRIN key. Once CyberComm finds the meter, press Connect button. Once the connection is established the data is transferred to CyberComm and then the IrDA link is disconnected automatically.

  • Page 23: Measurement Mode

    Instruction Manual PCD 650 2. Measurement Mode 2.1 About Measurement Mode Following measurement modes are available in PCD 650 models: pH measurement mode mV measurement mode Ion measurement mode Conductivity measurement mode TDS measurement mode Salinity measurement mode Resistivity measurement mode % - DO percentage saturation measurement mode mg/L(ppm) - DO concentration mode When powered-on, the meter goes to any of the above measurement modes,...
  • Page 24 Instruction Manual PCD 650 Function Keys available in measurement screen (2 Group): SETP (F1) Goes to setup mode MEM (F2) Shows stored data in the memory STOR (F3) Stores the currently displayed reading in the memory ESC (F4) Shows 1 Group of functions Function Keys available in measurement screen (3 Group):...

  • Page 25: Taking Measurement

    Instruction Manual PCD 650 Taking Measurement 2.2.1 Prepare the meter for measurement Before you start measuring, Make sure you have connected a suitable probe (pH/OPR/ISE), Conductivity probe and DO with in-built ATC to the meter. Make sure the probes are in good working condition & clean. If required, clean (pH/OPR/ISE) probe with clean water, conductivity and DO probe with de-ionized water to remove impurities.

  • Page 26: Automatic Temperature Compensation (Atc)

    Instruction Manual PCD 650 2.2.5 Automatic Temperature Compensation (ATC) Connect an appropriate probe with built in ATC probe to the meter and select ‘ATC mode’ in the temperature setup (See page 98) for the pH/conductivity/DO reading to be automatically compensated for temperature variations.

  • Page 27: Ph Calibration Points

    Instruction Manual PCD 650 2.2.11 pH Calibration points This option allows you to calibrate up to 6 points, depending on the standard buffer selected. Optionally, you can choose to have custom buffers with 2 to 5 points. When completely re-calibrating the meter, the first point of calibration should be one of the following, depending on your choice of standard buffer group.

  • Page 28: Linear Temperature Coefficient

    Instruction Manual PCD 650 2.2.16 Linear temperature Coefficient The temperature coefficient is a value that reflects the degree to which the conductivity is affected by temperature changes. If you do not know the temperature coefficient of your solution you can determine the correct value using the formula on page 106 “Calculating Temperature Coefficients”.
  • Page 29 Instruction Manual PCD 650 If the pressure comp. is set to ‘DISABLE’, then there would be no compensation for the pressure. The calibration would be done at 100% irrespective of the altitude. Note: This is applicable only for the % Saturation mode. For mg/L or ppm mode, pressure compensation would always be applicable.

  • Page 30: Multi Display Mode

    Instruction Manual PCD 650 Multi Display mode PCD 650 lets you view multi measurement modes at the same time. The measurement modes available for PCD 650 are pH/ mV/ Ion/Conductivity/Salinity/Resitivity/TDS/ DO(%)/DO (mg/L). The parameters being displayed is based on the settings set in the Display Setup. For more information on multi mode setup, refer ‘System Settings –...

  • Page 31: Ph Measurement Mode

    Instruction Manual PCD 650 pH Measurement Mode 2.4.1 Indicators in pH measurement screen In pH measurement mode, the meter displays pH and temperature reading. Figure 22 : pH measurement screen Refer item numbers indicated in Figure 22. Item Description More Details On Measurement mode indicator Appears when the reading is stable Page 17, 75...

  • Page 32: Mv Measurement Mode

    Instruction Manual PCD 650 2.5 mV Measurement Mode In mV measurement mode, the meter displays mV and temperature reading. Depending on application, you can connect a suitable ORP probe to the meter or use the pH probe. 2.5.1 Indicators in mV measurement mode Figure 23 : mV measurement screen Refer item numbers indicated in Figure 23.

  • Page 33: Ion Measurement Mode

    Instruction Manual PCD 650 2.6 Ion Measurement Mode In Ion measurement mode, the meter displays Ion concentration (in ppm, molar or mg/L) and mV reading. Depending on application, you can connect a suitable Ion Selective Electrode (ISE) to the meter. 2.6.1 Changing unit of measurement By default the measuring unit is ppm.

  • Page 34: Conductivity Measurement Mode

    Instruction Manual PCD 650 2.7 Conductivity Measurement Mode In conductivity measurement mode, the meter displays conductivity and temperature readings. The LCD shows related information for the conductivity measurement such as temperature compensation mode, stable indicator, probe condition, calibration points, response time of the conductivity probe and conductivity alarm conditions. You can customize or enable/disable some of these indicators in the Setup mode.

  • Page 35: Tds Measurement Mode

    Instruction Manual PCD 650 2.8 TDS Measurement Mode In TDS measurement mode, the meter displays TDS and temperature reading. 2.8.1 Indicators in TDS measurement mode Note: Lower display shows ‘2Cell’ or ‘4Cell’ when a 2-cell or 4-Cell conductivity probe is connected Figure 26 : TDS measurement screen Refer item numbers indicated in Figure 26.

  • Page 36: Salinity Measurement Mode

    Instruction Manual PCD 650 2.9 Salinity Measurement Mode In Salinity measurement mode, the meter displays salinity and temperature reading. 2.9.1 Indicators in salinity measurement mode Note: Lower display shows ‘2Cell’ or ‘4Cell’ when a 2-cell or 4-Cell conductivity probe is connected Figure 27 : Salinity measurement screen Refer item numbers indicated in Figure 27.

  • Page 37: Resistivity Measurement Mode

    Instruction Manual PCD 650 2.10 Resistivity Measurement Mode In Resistivity measurement mode, the meter displays resistivity and temperature reading. 2.10.1 Indicators in Resistivity measurement mode Note: Lower display shows ‘2Cell’ or ‘4Cell’ when a 2-cell or 4-Cell conductivity probe is connected Figure 28 : Resistivity measurement screen Refer item numbers indicated in Figure 28.

  • Page 38: Percentage Saturation (%) Measurement Mode

    Instruction Manual PCD 650 2.11 Percentage Saturation (%) Measurement Mode In percentage saturation measurement mode, the meter displays % saturation and temperature reading. The LCD shows related information for the saturation measurement such as temperature compensation mode, stable indicator, barometric pressure, calibration points, probe condition, response time of the DO probe and alarm conditions.

  • Page 39: Concentration (Mg/L) (Ppm) Measurement Mode

    Instruction Manual PCD 650 2.12 Concentration (mg/L) (ppm) Measurement Mode In concentration measurement mode, the meter displays concentration and temperature readings. The LCD shows related information for the concentration measurement such as temperature compensation mode, stable indicator, salinity value, probe condition, response time of the DO probe and alarm conditions. You can customize or enable/disable some of these indicators in the Setup mode.

  • Page 40: Transfer Measured Data To Computer (Cybercomm)

    Instruction Manual PCD 650 2.13 Transfer Measured Data to Computer (CyberComm) 2.13.1 Sending a single reading from multi measurement mode 1. Make sure that the parameter is set to in the CURRENT DATA SET ‘SINGLE’ System Setup (Refer ‘System Settings – Page 4’ on page 79). 2.

  • Page 41: Sending A Single Reading From Single Measurement Mode

    Instruction Manual PCD 650 10. To stop data transfer, click Disconnect button. 11. To clear the transferred readings from the screen, select the desired row and click Clear Data button. 2.13.2 Sending a single reading from single measurement mode 1. Make sure that the parameter is set to in the CURRENT DATA SET...

  • Page 42: Sending Readings Continuously In Single And Multi Measurement Modes

    Instruction Manual PCD 650 2.13.3 Sending readings continuously in single and multi measurement modes 1. Make sure that the parameter is set to in the CURRENT DATA SET ‘TIMED’ System Setup. Set the time interval at which you wish to send the data to CyberComm (Refer ‘System Settings –...

  • Page 43: Saving Data

    Instruction Manual PCD 650 Note: IrDA link may be disconnected if you move/disorient the IrDA ports during data transfer. Re-align the IrDA ports and press Connect button, to re-establish the connection. 2.13.4 Saving data You can save transferred measurement readings as a text file in your computer.

  • Page 44: Working With Memory Functions

    Instruction Manual PCD 650 2.14 Working with Memory functions The PCD 650 has a memory capacity to store up to 500 sets of measurement data. The MEM (F2) function key allows you to view stored data. Optionally, you can transfer this data to a Computer using wireless Infrared connection. 2.14.1 Logging data automatically in meter’s memory 1.

  • Page 45: Transferring Stored Data To Computer (Cybercomm) Through Irda

    Instruction Manual PCD 650 3. Press MEM (F2) key to view stored data. The last stored data entry is shown in the display (Figure 36). The memory location of the currently showing data entry is shown in the top-right corner of the screen. (Figure 36).
  • Page 46 Instruction Manual PCD 650 9. The CyberComm establishes connection with meter through IrDA and sends the data (Figure 38). The connection stops automatically once the data is transferred. 10. You can save the transferred data to a text file. See ‘Saving data’ section in page 35.

  • Page 47: Calibration Mode

    Instruction Manual PCD 650 3. Calibration Mode 3.1 About Calibration PCD 650 series meters are factory calibrated and allows you to measure pH/mV/ion/conductivity/resistivity/TDS/salinity/DO(%)/DO(mg/L). Calibrate to all measurement ranges to ensure the highest accuracy throughout all measurement range. However, it is recommended that, for higher accuracy, you calibrate your meter before you make measurements for the first time.

  • Page 48: About Ion Calibration

    Instruction Manual PCD 650 The meter automatically recognizes and calibrates to these standard pH buffer values, which makes pH calibration faster and easier. 3.1.3 About Ion Calibration The meter supports Ion calibration up to 8 points with minimum of 2-points. The available 8-points are 0.001, 0.01, 0.1, 1, 10, 100, 1000 &...

  • Page 49: Prepare The Meter For Calibration

    Instruction Manual PCD 650 Hence calibration in % Saturation of DO should be carried out first. This is described in the following section. 3.1.6 Prepare the Meter for Calibration Before starting calibration, make sure the meter is in the appropriate measurement mode.

  • Page 50: Accessing Calibration Mode

    Instruction Manual PCD 650 Ensure that you use new conductivity standard solutions or sachets during calibration. Do not reuse standard solutions as it may be contaminated and affect the calibration and accuracy of measurements. Use fresh calibration solution each time you calibrate your meter. Keep solutions in a dry and cool environment if possible.
  • Page 51 Instruction Manual PCD 650 Figure 39 : Login password screen Note: You can enter ‘00000’ (read-only password) if you wish to view the calibration report of the last calibration. You are not allowed to perform calibration when you enter ‘read-only password’. 3.

  • Page 52: Temperature Calibration

    Instruction Manual PCD 650 3.2 Temperature Calibration The built-in temperature sensor of conductivity and DO probe included with the meter are factory calibrated. The built-in ATC probe of the conductivity cells can be used for temperature readout and compensation of the pH values. DO in mg/L is dependent on temperature, so it is first necessary to calibrate or verify the temperature reading.

  • Page 53: Temperature Calibration For Mtc Mode

    Instruction Manual PCD 650 6. The screen shows two readings. The upper display shows the temperature reading of the solution with respect to previous calibration (if any) & lower displays shows the temperature reading of the solution without any calibration (default reading). Use &...

  • Page 54: Ph Calibration

    Instruction Manual PCD 650 3.3 pH Calibration 3.3.1 pH Calibration with a Standard Buffer Make sure you have selected a standard buffer with which you intend to perform pH calibration. Refer ’pH Setup’ section in page 82 for more details of setting buffer types. To start pH Calibration: 1.

  • Page 55: Ph Calibration With A User-Defined Buffer

    Instruction Manual PCD 650 5. Dip the probe in calibration buffer. The tip of the probe must be completely immersed into the solution. Stir the probe gently to create a homogeneous solution. 6. The display shows the pH reading. The meter scans through all the available (un-calibrated) points for the selected buffer group until it finds a close match within its acceptable calibration window.

  • Page 56: Calibration Report

    Instruction Manual PCD 650 1. Rinse the electrode in clean water and prepare electrode for calibration. Note: If you wish to completely re-calibrate the meter, you need to clear previous calibration data. Press CLR-C (F2) key to clear previous calibration. The meter shows you confirmation screen. Press ENTER key to confirm deleting previous calibration.

  • Page 57: Average Slope Indicator Of Ph Probe

    Instruction Manual PCD 650 Figure 43: pH Calibration Report Example: In the given pH calibration report (Refer Figure 43), 4-point calibration has been done for USA buffer group (pH 1.68, pH 4.01, pH 7.00 & pH 12.45). The slope is 93 for the range enveloped from pH 1.68 to pH 4.01. The slope is 88 for the range enveloped from pH 4.01 to pH 7.00.
  • Page 58 Instruction Manual PCD 650 Number of bars in the indicator shows the slope value: Number of Bars Average Slope of the pH Probe Above 90% 90% to 80% 80% to 70% Below 70%...

  • Page 59: Mv Calibration

    Instruction Manual PCD 650 3.4 mV Calibration Use a standard ORP solution of known value for calibration. You need to calibrate only 1-point. 1. Switch on the meter. Make sure the meter is in mV measurement mode. 2. Press CAL (F2) to go to calibration mode. Note: If the meter is password protected, you will be prompted to enter a password.

  • Page 60: Mv Calibration Report

    Instruction Manual PCD 650 Note: The function of the keys available on the mV calibration/ report screen is same as previously described in pH calibration with a user- defined buffer section (page 48). 3.4.1 mV Calibration Report Calibration report gives you information on calibration. It includes date & time on which the last calibration was done and the offset.

  • Page 61: Ion Calibration

    Instruction Manual PCD 650 3.5 Ion Calibration Use standard solutions of 0.001, 0.01, 0.1, 1, 10, 100, 1000 & 10000 ppm for calibration. You need to calibrate minimum of 2-points. Follow the instruction in ‘Prepare the meter for measurement’ section in page 40. 1.

  • Page 62: Calibration Report

    Instruction Manual PCD 650 6. Allow time for the reading to stabilize. Press ENTER key to confirm the selected point. The meter flashes the upper display to acknowledge the first point calibration. 7. The upper display shows the next calibration point. 8.

  • Page 63: Conductivity Calibration

    Instruction Manual PCD 650 3.6 Conductivity Calibration 3.6.1 Manual Calibration Make sure you have selected a standard solution with which you intend to perform conductivity calibration, refer page 86 for more details of setting solution types. To start manual Calibration for conductivity: Following is the procedure for single point calibration: 1.

  • Page 64: Automatic Calibration (For Conductivity Calibration)

    Instruction Manual PCD 650 Note: If you wish to completely re-calibrate the meter, you need to clear previous calibration data. Press CLR-C (F2) key to clear previous calibration. The meter shows you confirmation screen. Press ENTER key to confirm deleting previous calibration.
  • Page 65 Instruction Manual PCD 650 The following screen is displayed after cell adjustment screen, if you have selected ‘Auto’ in Calibration mode and ‘MULTI’ in Calibration Point: Figure 50 : Conductivity calibration Screen-Auto 1. Rinse the electrode in de-ionized water and prepare electrode for calibration.

  • Page 66: Calibration Report

    Instruction Manual PCD 650 If the user has selected ‘SINGLE’ point calibration and ‘AUTO’ Note: calibration mode, the meter will go to measurement mode after step 4. 3.6.3 Calibration Report Calibration report gives you detailed information on calibration. It includes date &...

  • Page 67: Resistivity Calibration

    Instruction Manual PCD 650 3.7 Resistivity Calibration Use a standard solution of known value for calibration. Use the single-point standardization option to measure samples that close in value and multi-point standardization to measure wide range of samples. 1. Switch on the meter. Make sure the meter is in resistivity measurement mode.

  • Page 68: Resistivity Calibration Report

    Instruction Manual PCD 650 Note: The function of the keys available on the resistivity cell constant/calibration/ report screen is same as previously described in conductivity calibration. 8. Rinse the probe with de-ionized water. Place it in the next solution and follow the steps 2 to 7 to calibrate other points, if ‘MULTI’...

  • Page 69: Salinity Calibration

    Instruction Manual PCD 650 3.8 Salinity Calibration Use a standard solution of known value for calibration. Use the single-point standardization option to measure samples that close in value and multi-point standardization to measure wide range of samples. 1. Switch on the meter. Make sure the meter is in salinity measurement mode. 2.

  • Page 70: Salinity Calibration Report

    Instruction Manual PCD 650 Note: The function of the keys available on the salinity cell constant/calibration/ report screen is same as previously described in conductivity calibration. 8. Rinse the probe with de-ionized water. Place it in the next solution and follow the steps 2 to 7 to calibrate other points, if ‘MULTI’...

  • Page 71: Tds Calibration

    Instruction Manual PCD 650 3.9 TDS Calibration You can commence calibration in the TDS mode by using the conductivity calibration method and after setting the correct TDS factor. For more information regarding TDS conversion factor determination, please refer to page 106 For the rest of the calibration process, follow steps as mentioned in the section of manual calibration on page 55.

  • Page 72: Tds Calibration Report

    Instruction Manual PCD 650 Note: The function of the keys available on the TDS cell constant/calibration/ report screen is same as previously described in conductivity calibration. 8. Rinse the probe with de-ionized water. Place it in the next solution and follow the steps 2 to 7 to calibrate other points, if ‘MULTI’...

  • Page 73: Do Calibration In % Saturation Mode (With Atc)

    Instruction Manual PCD 650 3.10 DO Calibration in % Saturation Mode (with ATC) The PCD 650 can be calibrated quickly and easily in air. In % Saturation, the meter is able to perform either a one point calibration or a 2 point calibration. For one point calibration, it is recommended that you perform a 100% Saturation calibration in saturated air.
  • Page 74 Instruction Manual PCD 650 6. Press ENTER key to confirm the calibration. The meter automatically calibrates to 100% air saturation and returns to the measurement mode. Note: If you wish to completely re-calibrate the meter, you need to clear previous calibration data. Press CLR-C (F2) key to clear previous calibration. The meter shows you confirmation screen.

  • Page 75: To Calibrate 0% Saturation

    Instruction Manual PCD 650 3.10.2 To calibrate 0% saturation Figure 60 : 0% saturation calibration Screen 1. Press MODE key to select % Saturation mode. 2. Immerse the DO probe in 0% solution. Stir gently to create a homogenous solution. 3.
  • Page 76 Instruction Manual PCD 650 To View calibration Report: 1. From % saturation measurement mode, press left or right arrow key to navigate to other available functions until you see REPO function in the LCD. 2. Press REPO (F2) key. The calibration report is shown in the display. 3.

  • Page 77: Do Calibration In Mg/L Or Ppm Concentration Mode

    Instruction Manual PCD 650 3.11 DO Calibration in mg/L or ppm Concentration Mode The amount of oxygen dissolved in a liquid will depend on its temperature, pressure and salinity. It is therefore very important to set temperature and salinity correctly before attempting to do a calibration.

  • Page 78: Concentration Calibration Report

    Instruction Manual PCD 650 Figure 63 : Concentration calibration Note: The function of the keys available on the concentration calibration/ report screen is same as previously described in saturation calibration. 3.11.1 Concentration Calibration Report Calibration report gives you information on calibrated temperature and calibration at pressure and salinity.

  • Page 79: Setup Mode

    Instruction Manual PCD 650 4. Setup Mode About Setup Mode The setup mode lets you configure various parameters & settings of the meter. You can choose to password-protect your settings, so that other users who may use the meter will not be able to change the settings. Setup mode consists of the following sub-groups: System –...
  • Page 80 Instruction Manual PCD 650 Function Keys available in setup key function screen: To select individual setup ENTER To select or confirm the selection. NEXT-P To navigate to next page. NEXT To go to next parameter without saving the changed parameter. To go back to measurement mode.

  • Page 81: Accessing Setup Mode When Password Protection Enabled

    Instruction Manual PCD 650 4.1.2 Accessing Setup mode when password protection enabled Follow the steps below to access the setup mode, when password protection is enabled. 1. Switch on the meter. The meter goes to measurement mode. 2. Press right arrow key to navigate to other functions on the right-side of LCD.

  • Page 82: Modifying Setup Parameters

    Instruction Manual PCD 650 4.1.3 Modifying Setup parameters Follow the steps below to modify setup parameters, when you enter a setup sub-group. 1. Press NEXT (F3) key to select individual setup parameters sequentially. 2. Press (Up) or (Down) arrow key to change the value of a selected parameter.

  • Page 83: System Setup

    Instruction Manual PCD 650 4.2 System Setup System setup sub-group allows you to configure general settings of the meter. The settings are displayed in 6 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages. 4.2.1 System Settings – Page 1 Figure 68: System Settings - Page 1 Parameter Description...
  • Page 84 Instruction Manual PCD 650 Tem. Display Allows to select temperature from pH/COND/DO from probes to display in multi measurement screen. For PCD 650-pH/COND->DO Display Allows to select multi modes that you would like to be setting:- displayed on the 1 and 3 row of the measurement screen after calibration.

  • Page 85: System Settings

    Instruction Manual PCD 650 4.2.2 System Settings – Page 2 Figure 69 : System Settings - Page 2 This page allows you to set the date & time of the meter. Parameter Description Factory Default Year 2006 Sets the current year Month Sets the current month Date...

  • Page 86: System Settings

    Instruction Manual PCD 650 4.2.3 System Settings – Page 3 Figure 70 : System Settings - Page 3 This page allows you to set auto-off and back light related parameters. Parameter Description Factory Default Auto OFF ENABLE – Turns off the meter automatically if no key is ENABLE pressed for the time period specified in ‘ON TIME’...

  • Page 87: System Settings

    Instruction Manual PCD 650 4.2.4 System Settings – Page 4 Figure 71: System Settings - Page 4 This page allows you to set wireless serial data communication related parameters. Parameter Description Factory Default Print Mode IrDA – Sets serial data communication protocol to IrDA IrDA LED –...

  • Page 88: System Settings

    Instruction Manual PCD 650 4.2.5 System Settings – Page 5 This page allows you to enable password protection for the setup mode & calibration mode. Figure 72 : System Settings - Page 5 When you enable password protection, the meter prompts to enter the password whenever you try to access the Setup or Calibration mode.

  • Page 89: System Settings

    However, if the user forgets his password, he can contact the nearest distributor or Eutech Instruments/Oakton Instruments to request for meter password. This would be unique to each instrument and would be tied to the serial number of the unit.

  • Page 90: Ph Setup

    Instruction Manual PCD 650 4.3 pH Setup pH setup sub-group allows you to configure pH measurement & calibration related settings of the meter. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages. 4.3.1 pH Settings –...

  • Page 91: Ph Settings

    Instruction Manual PCD 650 4.3.2 pH Settings – Page 2 Figure 75: pH Settings - Page 2 Parameter Description Factory Default pH Calibration 5 Days Specify number of days for the pH calibration alarm. The meter shows CAL DUE indicator after calibration due days are passed from the last calibration date.

  • Page 92: Mv Setup (No Settings Available)

    Instruction Manual PCD 650 4.4 mV setup (no settings available) No settings are available for mV. Figure 76: mV Setting Page Press ESC (F4) to go to measurement mode.

  • Page 93: Ion Setup

    Instruction Manual PCD 650 4.5 Ion Setup Ion setup sub-group allows you to configure Ion measurement & calibration related settings of the meter. 4.5.1 Ion Settings Page Figure 77: Ion Settings Page Parameter Description Factory Default Ion unit Sets the unit of measurement for Ion. Available units: ppm, molar and mg/L Press (Up) or...

  • Page 94: Conductivity Setup

    Instruction Manual PCD 650 Conductivity Setup Conductivity setup screen present many options to control the operating parameters, which can be controlled and set from the conductivity setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages.

  • Page 95: Conductivity Settings

    Instruction Manual PCD 650 Note: 1. If pure water coefficient is ‘ENABLE’, the meter will apply pure water compensation automatically below 2 switch back to linear compensation for µS and above 2 µS. 2. If pure water coefficient is ‘DISABLE’, Lnr Temp Coefficient applies throughout the measurement.

  • Page 96: Tds Setup

    Instruction Manual PCD 650 4.7 TDS Setup TDS setup screen present many options to control the operating parameters, which can be controlled and set from the TDS setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages. 4.7.1 TDS Settings –...

  • Page 97: Tds Settings

    Instruction Manual PCD 650 4.7.2 TDS Settings – Page 2 Figure 81 : TDS Settings - Page 2 This page allows you to set alarm limits for the TDS measurement mode: Parameter Description Factory Default Alarm Set DISABLE Set alarm limits for the TDS measurement mode: Points ENABLE –...

  • Page 98: Salinity Setup

    Instruction Manual PCD 650 4.8 Salinity Setup Salinity setup screen present many options to control the operating parameters, which can be controlled and set from the salinity setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages.
  • Page 99 Instruction Manual PCD 650 This page allows you to set alarm limits for the salinity measurement mode: Parameter Description Factory Default Alarm Set DISABLE Set alarm limits for the salinity measurement mode: Points ENABLE – The measurement screen shows HI or LO alarm indicators when the meter reading is above ‘HI alarm value’...

  • Page 100: Resistivity Setup

    Instruction Manual PCD 650 4.9 Resistivity Setup Resistivity setup screen present many options to control the operating parameters, which can be controlled and set from the resistivity setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages.
  • Page 101 Instruction Manual PCD 650 This page allows you to select alarm limits for resistivity measurement mode. Parameter Description Factory Default Alarm Set DISABLE Set alarm limits for the resistivity measurement mode: Points ENABLE – The measurement screen shows HI or LO alarm indicators when the meter reading is above ‘HI alarm value’...

  • Page 102: Do Saturation Setup

    Instruction Manual PCD 650 4.10 O % - DO Saturation Setup DO saturation (%) setup screen present many options to control the operating parameters, which can be controlled and set from the DO setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages.

  • Page 103: Do (%)

    Instruction Manual PCD 650 4.10.2 DO (%) – Page 2 Figure 87: DO (%) - Page 2 This page allows you to set alarm limits for the DO saturation measurement mode. A visual alarm symbol will appear on the screen, if the DO value of the measurement is outside of the boundaries set by the minimum and maximum limits.

  • Page 104: O 2 Mg/L (Ppm) - Do Concentration Setup

    Instruction Manual PCD 650 4.11 mg/L (ppm) – DO Concentration Setup DO Concentration (mg/L) setup screen present many options to control the operating parameters, which can be controlled and set from the DO setup screen. The settings are displayed in 2 pages. Press NEXT-P (F2) and PREV-P (F1) to navigate through these pages.

  • Page 105: Do (Mg/L)

    Instruction Manual PCD 650 4.11.2 DO (mg/L) – Page 2 Figure 89: DO (mg/L) – Page 2 This page allows you to set alarm limits for the DO concentration mode. A visual alarm symbol will appear on the screen, if the DO value of the measurement is outside of the boundaries set by the minimum and maximum limits.

  • Page 106: Temperature Setup

    Instruction Manual PCD 650 4.12 Temperature Setup Temperature setup sub-group allows you to configure temperature measurement & calibration related settings of the meter. 4.12.1 Temperature Setting Page Figure 90 : Temperature Settings Page Parameter Description Factory Default Unit Sets the unit of measurement for temperature. ºC Available units: ºC and ºF Mode...

  • Page 107: Technical Specifications

    Instruction Manual PCD 650 5. Technical Specifications Model PCD 650 meter Range -2.000 to 20.000 pH Resolution 0.1/0.01/0.001 pH Relative Accuracy ± 0.002 pH + 1 LSD No. of Calibration points 1 (offset) to 6 points No. of Buffer Options Calibration due alarm User configurable (up to 30 days) Set point alarm...
  • Page 108 Instruction Manual PCD 650 0.050uS to 2.000uS 0.01uS* 1% of FS 2.000uS to 9.990 uS 0.01uS* 1% of FS 10.00uS to 99.99uS 0.01uS 1% of FS 84.00uS 100.0uS to 300.0uS 0.1uS 1% of FS 300.0uS to 999.9uS 0.1uS 1% of FS 1.413mS 1.000mS to 4.000mS 0.001mS...
  • Page 109 Instruction Manual PCD 650 500.0KΩ to 999.9KΩ 0.1KΩ 1% of FS 100.0KΩ to 500.0KΩ 0.1Ω 1% of FS 10.00KΩ to 99.99KΩ 0.01Ω 1% of FS 3.333KΩ to 9.999KΩ 0.001Ω 1% of FS 1.000KΩ to 3.333KΩ 0.001Ω 1% of FS 250.0Ω to 999.9Ω 0.1Ω...

  • Page 110: Accessories

    Instruction Manual PCD 650 6. Accessories Replacement Accessories Eutech Instruments Product Description Eutech Instruments Order Code Rubber Boot for 600 series meters OKRUBBERBT600 100-240VAC Power Adapter 01X030132 Optional Accessories Eutech Instruments Product Description Eutech Instruments Order Code 8 pin connector Temperature probe (3m Cable)

  • Page 111: Oakton Instruments

    Instruction Manual PCD 650 General Purpose Plastic-Body, Double Junction, Ag/AgCl pH 35641-51 electrode (1m Cable) General Purpose Plastic-Body, 3-in-1,pH/Temp Ag/AgCl pH 35816-71 electrode (1m Cable) 2-cell Electrode with ATC, cell constant K=1.0 35408-57 (OKCONSEN9103J, 3m cable) 2-cell Electrode with ATC, cell constant K=1.0 35408-52 4-cell Electrode with ATC, cell constant K=0.3 35408-56...

  • Page 112: Appendix

    Instruction Manual PCD 650 7. APPENDIX 7.1 Conductivity theory Conductance is a quantity associated with the ability of primarily aqueous solutions to carry an electrical current, I, between two metallic electrodes when a voltage E is connected to them. Though water itself is a rather poor conductor of electricity, the presence of ions in the water increases its conductance considerably, the current being carried by the migration of the dissolved ions.
  • Page 113 Instruction Manual PCD 650 The PCD 650 series meter not only measures conductivity readings from micro or milli Siemens but also reads resistivity (Ohms, kOhms and MOhms), TDS (ppm and ppt), and salinity (ppt). The salinity scale which ranges from 0 to 80 ppt is a measure of all salts, not just sodium chloride.

  • Page 114: Calculating Tds Conversion Factor

    Instruction Manual PCD 650 7.2 Calculating TDS Conversion Factor You can calibrate your meter using TDS calibration standard solutions. The calibration standard only needs to give the TDS value at a standard temperature such as 25 °C. To determine the conductivity-to-TDS conversion factor use the following formula: Factor = Actual TDS ÷...

  • Page 115: Dissolved Oxygen Probe

    Instruction Manual PCD 650 7.4 Dissolved Oxygen Probe 7.4.1 Dissolved Oxygen Principle The probe is a galvanic measuring element which produces an output proportional to the oxygen present in the medium in which it is placed. The galvanic probe design lets you take measurements immediately –...

  • Page 116: Membrane Housing Replacement

    Instruction Manual PCD 650 7.4.3 Membrane Housing Replacement Replacement of the membrane cap housing/ membrane is required only when you cannot calibrate the probe, or if the membrane is damaged. Typical membrane damages are punctures or wrinkles caused during measurements or cleaning. Your new DO probe comes with replacement membrane housing.

  • Page 117: Electrolyte Solution

    Instruction Manual PCD 650 2. Hold the probe under hot running water and brush away the white oxide on the cylindrical anode with a stiff plastic brush – do not use metal cleaning material. 3. If the cathode has any deposits, remove them with a light scouring powder. Do not polish the cathode.

  • Page 118: General Information

    8. General Information 8.1 Warranty Eutech Instruments supplies this meter with a 3-year warranty and 6-month warranty for electrode against manufacturing defects from the date of purchase. If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return –...
  • Page 120 For more information on Eutech Instruments’/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd. Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL 60061, USA...

Table of Contents
