Si M3 L 1 x x

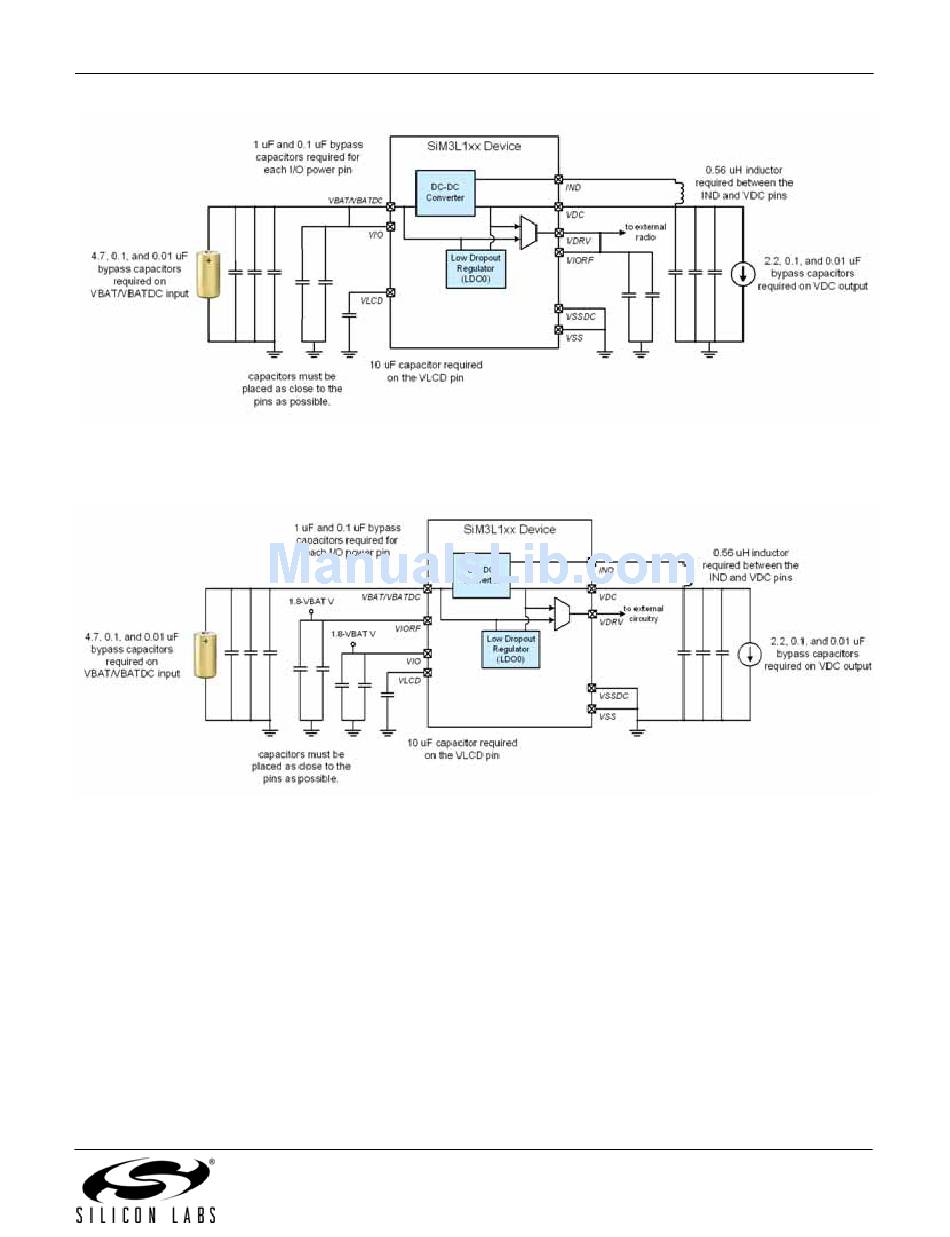

Figure 2.3. Connection Diagram with External Radio Device
Figure 2.4 shows a typical connection diagram for the power pins of the SiM3L1xx devices when the dc-dc buck
converter is used and the I/O are powered separately.
Figure 2.4. Connection Diagram with DC-DC Converter Used and I/O Powered Separately
Rev 1.1
7
