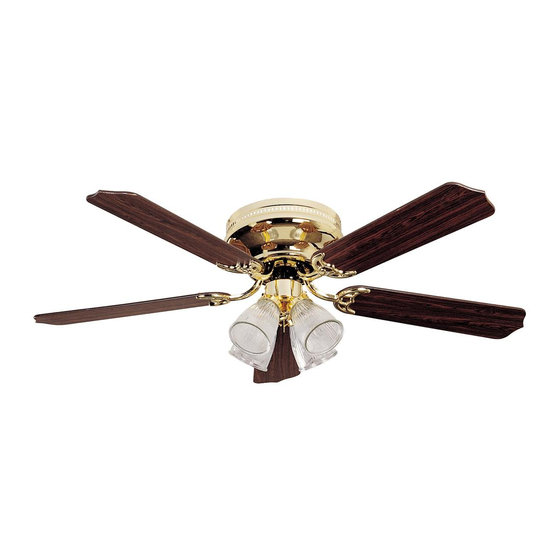

Installation Guide
For Models:
BRC52AB5C
BRC52BB5C
BRC52WB5C
BRC52WW5C
E124404
net fan weight: 16.53 lb. (7.5 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 4
Warranty. pg. 8
PRINTED IN CHINA

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Litex BRC52AB5C

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Models: Table of Contents: BRC52AB5C Safety Tips. pg. 1 BRC52BB5C Unpacking Your Fan. pg. 2 BRC52WB5C Parts Inventory. pg. 2 Installation Preparation. pg. 3 BRC52WW5C Hanging Bracket Installation. pg. 3 Preparation for Wiring.
  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches clearance of 7ft. (2.13m) from the floor and 30in. 7 feet (76cm) (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 12ft.
  • Page 5: Preparation For Wiring

    5. Preparation for Wiring. hanging bracket slot Remove 4 motor mounting screws and lock washers from the bar on the top of motor assembly; leave rubber cushions in place. Lift motor assembly to hanging bracket and place hanging one end of motor assembly in hanging bracket bracket motor assembly slot.
  • Page 6: Fan Assembly

    7. Fan Assembly. hanging bracket opening Remove motor assembly from temporary hanging slot in hanging bracket. Carefully push wiring and wire connectors into outlet box. Slide hanging one end of bar on motor assembly through one slot bracket opening of the openings in the hanging bracket. Lift the other end of the and slide it through opposite motor motor...
  • Page 7: Blade Assembly

    9. Blade Assembly. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. motor housing Locate 15 blade attachment screws and washers in hardware pack. Hold blade arm up to blade and align holes. Insert 3 blade blade attachment attachment screws (along with washers) with screws and washers...
  • Page 8: Testing Your Fan

    10. Light Kit Assembly (Optional). (cont.) reverse motor housing Remove 3 screws from light kit fitter. Locate BLUE (or switch BLACK) and WHITE wires in the switch housing labeled FOR LIGHT KIT CONNECTION. Remove and discard plastic that holds these 2 wires together. Connect WHITE wire from switch housing to WHITE wire from light kit fitter.
  • Page 9: Troubleshooting

    1. Check wall switch to fan. Service at 1-800-527-1292 to arrange for return of fan. Return fan, shipping prepaid, to Litex Industries, Ltd. We will 2. Verify that reverse switch is set completely in repair or ship you a replacement fan, and we will pay the either direction.
  • Page 10 LEER ESTAS INSTRUCCIONES Y GUARDARLAS PARA UTILIZACION FUTURA Guía de instalación Para modelos: Indice de materias: BRC52AB5C Sugerencias de seguridad. Pág. 1 BRC52BB5C Desempaquetado del ventilador. Pág. 2 BRC52WB5C Inventario de piezas. Pág. 2 Preparación para la instalación. Pág. 3 BRC52WW5C Instalación del soporte de montaje.
  • Page 11: Sugerencias De Seguridad. Pág

    SUGERENCIAS DE SEGURIDAD. ADVERTENCIA: Para evitar la posibilidad de una descarga eléctrica, desconectar la corriente en la caja de fusibles principal o el interruptor protector antes de iniciar la instalación del ventilador o antes de repararlo o instalar accesorios. LEER TODAS LAS INSTRUCCIONES E INFORMACIÓN DE SEGURIDAD CUIDADOSAMENTE ANTES DE INSTALAR SU VENTILADOR Y GUARDAR ESTAS INSTRUCCIONES.
  • Page 12: Desempaquetado Del Ventilador. Pág

    1. Desempaquetado del ventilador. Abrir el empaque cuidadosamente. Sacar los artículos del embalaje. Sacar el motor y ponerlo en una alfombra o en el embalaje para evitar rayar el acabado. Guardar la caja de cartón o el empaquetamiento original en caso de que tenga que mandar el ventilador para alguna reparación.
  • Page 13: Preparación Para La Instalación. Pág

    3. Preparación para la instalación. borde del aspa Para prevenir daño corporal y otros daños, asegurarse de que el lugar en donde va a colgar 76cm el ventilador le permite un espacio libre de 2,13m pulg.) 2,13m (7 pies) entre las puntas de las aspas y el (7 pies) piso y 76cm (30 pulg.) entre las aspas y cualquier pared u otra obstrucción.
  • Page 14: Preparación Para La Instalación Eléctrica. Pág

    5. Preparación para la ranura del instalación eléctrica. soporte de montaje Quitar los 4 tornillos para montaje del motor y las arandelas de seguridad de la barra en la parte superior de la unidad del motor, dejar las arandelas de hule en su lugar. Elevar la unidad soporte de del motor al soporte de montaje y colocar una montaje...
  • Page 15: Ensamblaje Del Ventilador. Pág

    7. Ensamblaje del ventilador. abertura del soporte Quitar la unidad del motor de la ranura en el de montaje soporte de montaje que se usó para colgarla temporalmente. Con cuidado meter los conectores para cable dentro de la caja de abertura salida.
  • Page 16: Colocación De Las Aspas. Pág

    9. Colocación de las aspas. Para ahorrar tiempo: Se pueden poner las arandelas en los tornillos que son para las aspas antes de colocar las aspas. Localizar 15 tornillos para fijar las aspas y 15 arandelas bastidor del motor en uno de los paquetes de artículos de ferretería. Agarrar uno de los brazos para las aspas y juntarlo con una de las aspas para alinear los agujeros.
  • Page 17: Verificación Del Funcionamiento Del

    10. Instalación del juego de luz (opcional). (cont.) Quitar los 3 tornillos del conectador para el juego de luz. Localizar los cables AZUL (o NEGRO) y BLANCO en la caja de bastidor del motor interruptor encendido etiquetados "FOR LIGHT KIT CONNECTION" (PARA de reversa ENCHUFE DEL JUEGO DE LUZ).
  • Page 18 Problema: El ventilador no funciona. deficiente debido a defectos en los materiales o trabajo Soluciones: manual. Comunicarse con el Servicio al Cliente de Litex al 1. Inspeccionar el interruptor de pared del 1-800-527-1292 para acordar el reenvío del ventilador. ventilador.
