USER GUIDE
ENGLISH
Downloaded from ProjectorsManual.com Manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F22 and is the answer not in the manual?

Questions and answers

Related Manuals for Projectiondesign F22

Summary of Contents for Projectiondesign F22

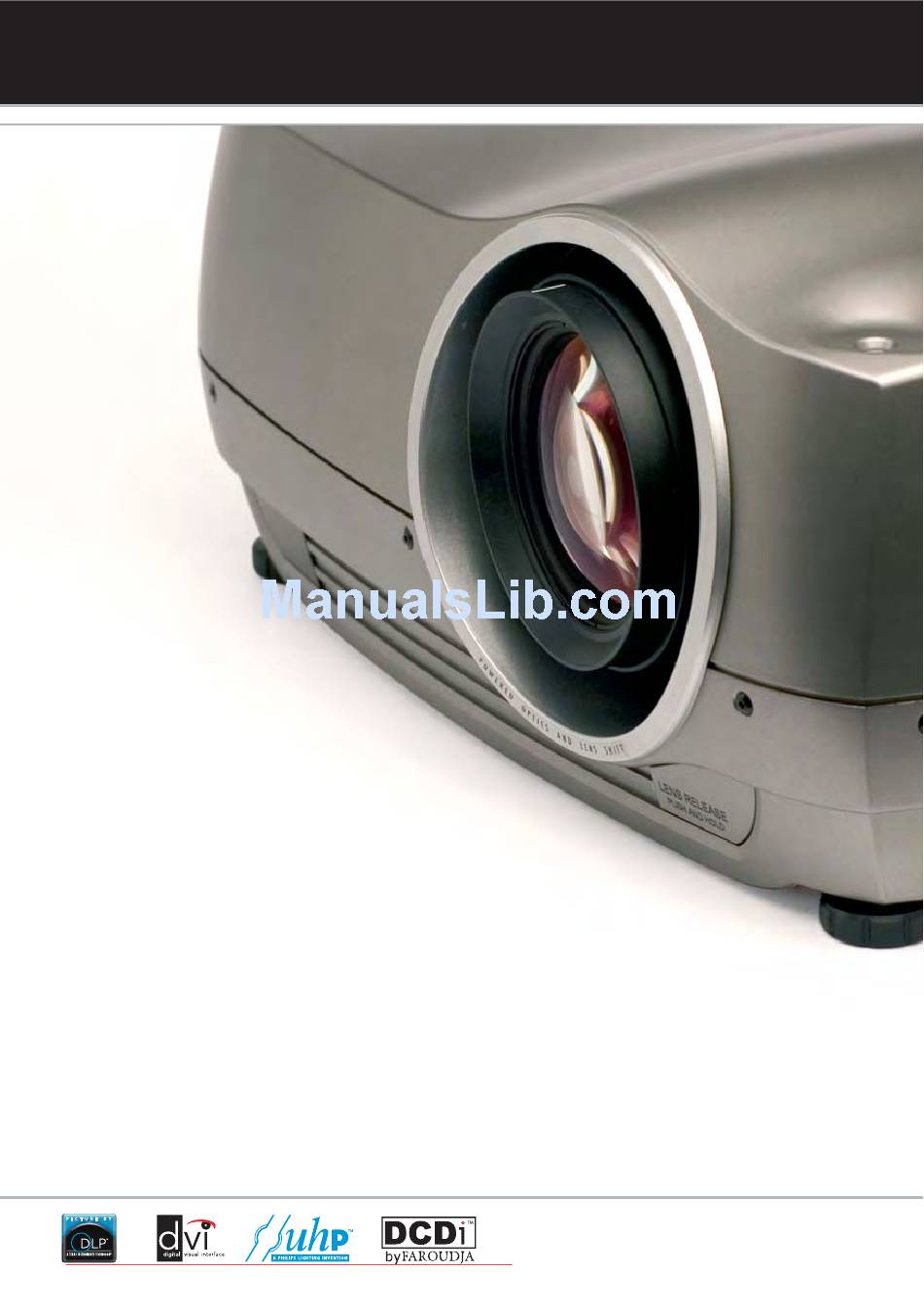

  • Page 1 USER GUIDE ENGLISH Downloaded from ProjectorsManual.com Manuals...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of contents Introduction Safety & Warnings Supplied material Optional lenses Overview Keypad Indicators Remote control Connector panel Set up Image adjustments M Lamp operation Pin Code Ceiling mount Using the projector Menu system RS 232 and LAN control Trouble shooting Maintenance Service information...

  • Page 3: Introduction

    INTRODUCTION SAFETY & WARNINGS This digital projector is designed with the latest state-of-the-art This user guide contains important information about safety technologies in illumination, imaging, optics, electronics, thermal and precautions and the set-up and use of the projector. Please read the industrial design in order to serve traditional as well as novel imaging manual carefully before you operate the projector.
  • Page 4 SAFETY & WARNINGS SAFETY & WARNINGS Do not operate the projector outside its temperature and humidity WARNING LEAD specifications, as this may result in overheating and malfunctioning. This product contains chemicals, including lead, known to the State of California to cause birth defects or other Only connect the projector to signal sources and voltages as reproductive harm.
  • Page 5 SAFETY & WARNINGS WARNING SYMBOLS READ USER GUIDE Attention! Read the user guide for further information! DANGEROUS VOLTAGE Danger! High voltage inside the product! Warning! Hot surfaces! WAIT Warning! Wait until cooled down! MERCURY Warning! Product contains mercury! Recycle properly, do not dispose of in ordinary waste! Warning! UV radiation inside the product! RECYCLE...

  • Page 6: Supplied Material

    SUPPLIED MATERIAL Projector without lens Lens supplied seperately Remote control with batteries User guide Power Cord (country dependent) Ceiling mount cover Before Set up and Use Unpack the supplied parts and familiarise yourself with the various components. Downloaded from ProjectorsManual.com Manuals...

  • Page 7: Optional Lenses

    OPTIONAL LENSES A range of fixed and zoom lenses is available to cover most applications, both front and rear. The lenses are powered and fitted with a bayonet mount for ease of installation. Switch off all equipment before setting-up for proper function. When mounting and changing lenses, be aware that the optical system is exposed to dust and foreign particles as long as the lens is not attached to the system.

  • Page 8: Overview

    OVERVIEW Lens IR sensor Ventilation Lens release Power connector Keypad Connector panel Lamp lids Adjustable feet Security lock Ceiling mount Downloaded from ProjectorsManual.com Manuals...

  • Page 9: Keypad

    KEYPAD The keypad is illuminated for operation in dark environments. Available SHUTTER functions are illuminated in yellow while selected (active) functions are Press SHUTTER to stop the projected image completely. illuminated in green. Functions that are not available are not illuminated. In addition to the various functions, 10 keys are numbered 0-9.

  • Page 10: Indicators

    INDICATORS STATUS Indicates the overall system status by green, yellow and red colors. PERMANENT GREEN LIGHT The projector is turned on and in normal operation. PERMANENT YELLOW LIGHT The unit is in standby mode; no source(s) connected, or the source(s) connected are inactive or switched off, thereby activating the power- save function (DPMS).

  • Page 11: Remote Control

    REMOTE CONTROL The remote control allows flexible access to the projector settings, either through direct keys, or through the menu system. The remote control is backlit for use in dark environments. It also has a data- jack that allows for wired connection to the projector. When the wire is connected, the IR (infra-red) beam and internal batteries are switched off.
  • Page 12 REMOTE CONTROL X-PORT 1, 2 Activates the X-PORT 1, 2. These keys are enabled by the X-PORT 1, 2 devices as and when attached. Functionality depends on the actual devices connected SHUTTER Toggles the mechanical shutter on and off. ZOOM Press the ZOOM keys to zoom the image in and out.

  • Page 13: Connector Panel

    CONNECTOR PANEL CONNECTOR PANEL The conector panel may be illuminated by pushing the LIGHT key on H RS 232 control in-out: Allows for wired remote control and the keypad. monitoring of many projector functions used in installation environments. The secondary output connector allows for A C-VIDEO: Used for standard video quality.

  • Page 14: Set Up

    SET UP SET UP VIDEO Before setting-up, switch off all equipment. Four video sources may be connected, using the YPbPr (component), BNC (RGB), S-VIDEO (super video) and VIDEO (composite video) inputs. Component and RGB video will display more detailed images. Composite video yields images with less detail.

  • Page 15: Image Adjustments

    IMAGE ADJUSTMENTS Various optical adjustments are available, depending on your choice of lens. All lens adjustments are motorized and controlled by the keypad, remote control or by RS232 or LAN. Two kinds of lenses are available; fixed or zoom. A fixed lens has permanent focal length, or throw ratio.

  • Page 16: M Lamp Operation

    LAMP OPERATION PIN CODE The projector is fitted with two individual projection lamps that can be The projector may be controlled by a PIN (Personal Identity Number) run in various modes. In addition, lamps can be replaced as needed code. The PIN code is 4 digits, and if the PIN code is activated, you separately.

  • Page 17: Ceiling Mount

    CEILING MOUNT The projector can be ceiling mounted using an approved UL tested/ listed ceiling mount fixture, with a 59,5 capacity of minimum 60 kg / 130 lbs. 82,5 For ceiling mount use M6 screws that penetrate maximum 15 mm / 0.6” into the projector body. For proper ventilation the minimum distance from ceiling/ rear wall should be: 30/ 50 cm, 12/ 20 inch.
  • Page 18 CEILING MOUNT CEILING MOUNT COVER The auxiliary cable cover can be mounted on the projector to conceal the interface cables and power cord when the unit is ceiling mounted. Connect all cables and fix them in place before the cable cover is attached to the projector. Attach the cable cover to the projector by inserting the horisontal hooks on the cover in the horisontal slots on the rear of the projector.

  • Page 19: Using The Projector

    USING THE PROJECTOR After setting-up, switch on all equipment. The projector can be controlled by the keypad on the rear, by the remote control or using the RS232 or LAN interfaces. When using the remote control, either all or select individual units may be addressed, see the CONTROL sub menu - RC ID.

  • Page 20: Menu System

    MENU SYSTEM The menu system gives access to a multitude of image and system controls. The menu system is structured through a top menu and several sub menus. The sub menus may vary depending on the actual source selected. Some functions are not available with some sources. When accessing the menu system, you will enter at the position you left last time you were using the menu system.
  • Page 21 MENU SYSTEM PICTURE SUB MENU S-VIDEO / C-VIDEO brightness Adjusts the image brightness. A higher setting will increase the brightness, a lower setting will decrease the brightness of the image. contrast Controls the contrast of the image. A higher setting will yield a 'harder' image with larger difference between shades, while a low setting will produce a 'softer' image with less difference between shades.
  • Page 22 MENU SYSTEM DYNAMIC SUB MENU S-VIDEO / C-VIDEO white boost white boost Increases the white level of the image for enhanced contrast gamma film 1 digital noise reduction press gamma The source image is adapted to characteristics typical to certain applications.
  • Page 23 MENU ADJUSTMENT ADVANCED SUB MENU S-VIDEO / C-VIDEO H position h position Shifts the image sideways. V position color temp 6500 7300 9300 custom v position Shifts the image up and down. custom color custom brightness press phase Adjust for stable image. A jittery image may appear with certain VGA custom contrast press sources.
  • Page 24 MENU SYSTEM SET UP SUB MENU FOR ALL keystone V keystone V Adjust vertical keystone correction. Compensates for the geometrical keystone H distortion of the projected image resulting from tilting the projector to IR control press shoot higher up on the wall. DPMS keystone H source scan...
  • Page 25 MENU SYSTEM UTILITIES SUB MENU FOR ALL system information press system information Displays information about the source and projector status. OSD timeout seconds Turn the On Screen Display on (display) or off (hide) during source OSD background opaque translucent scan. reset press OSD timeout...
  • Page 26 MENU SYSTEM CONTROL SUB MENU FOR ALL mode RS232 mode Selects between RS232 and X-PORT control modes. RS232 Address auto fixed RS232 Fixed RS232 address For use when daisy-chaining several units. Select auto or fixed baudrate 19200 address. Only one address scheme is allowed per daisy-chain. The RC ID auto address is allocated following the relative position in the daisy- chain.
  • Page 27 MENU SYSTEM LAMP SUB MENU FOR ALL mode dual single Mode select dual or single lamp mode. advanced press select eco mode (reduced power for longer lamp life). ADVANCED FOR ALL advanced single lamp1 lamp 2 individual lamp control. lamp1 power 100 single lamp2 power 100 select lamp 1 or lamp 2 as active lamp.

  • Page 28: Rs 232 And Lan Control

    RS 232 AND LAN CONTROL TROUBLE SHOOTING RS 232 NO IMAGE You may control and monitor the projector remotely through the serial No connection: Check if all connections are properly made. RS232 control interface. Source off: Check if the equipment is powered on. Two RS232 protocols are employed.

  • Page 29: Maintenance

    MAINTENANCE SERVICE INFORMATION The projector may from time to time need cleaning. Never open the This product contains no user serviceable parts. unit, as this will void any warranties. Refer service and repair to qualified personnel only. If the product fails to function as expected, please first check that all connections are properly made, and that the power cord is properly The projector is using lamps that have a limited life time.

  • Page 30: Lamp Change

    LAMP CHANGE The LAMP indicators on the keypad will turn red when lamp life expires. Change the lamp when lifetime expires. Always replace lamp with the same type and rating. The lamp includes an electronic lamp timer that is tracking the life time of the lamp.

  • Page 31: W Technical Data

    TECHNICAL DATA PROJECTOR UNIT Resolution 1400 x 1050 (native) SXGA+, 4 : 3 aspect ratio Display technology Single chip DLP™ technology by Texas Instruments ® Display device LVDS DMD™ with DarkChip3™ technology Computer Compatibility UXGA, SXGA+, SXGA, XGA, SVGA, VGA, PC, MAC, SGI and other workstations, RGBHV, RGBS, RGsB Video Compatibility HDTV (1080i, 720p, 576i/p, 480i/p), NTSC, NTSC 4.43, PAL, PAL-M,...
  • Page 32 TECHNICAL DATA PROJECTOR UNIT Temperature operating 0-40°C / 32-104°F, 0-1500 m / 0-4950 ft 0-35°C / 32-95°F, 1500-3000 m / 4950-9900 ft Temperature storage -20 - 60°C / -4 - 140°F Humidity operating 20-90% RH, non-condensing Humidity storage 10-95% RH, non-condensing LENSES Short fixed lens f = 15.32 mm...
  • Page 33 TECHNICAL DATA CONNECTORS S-Video Computer DVI Computer VGA 1 BNC H - C RS-232 in RC in BNC V 4 PIN MINI DIN PHONO/RCA DVI-D 15 HIGH DENSITY BNC MALE 9 PIN DSUB 3,5mm stereo BNC MALE FEMALE FEMALE DSUB FEMALE FEMALE mini jack STEM GREEN: G/Y...
  • Page 34 TECHNICAL DATA THROW RATIOS F3, ZOOM AND FIXED LENSES Image height Image width Screen diagonal 9.00 29.70 12.00 39.6 15.00 49.50 8.25 27.23 11.00 36.3 13.75 65.18 7.50 24.75 10.00 33.00 12.50 41.25 6.75 22.28 9.00 29.70 11.25 37.13 6.00 19.80 8.00 26.40...

  • Page 35: Declarations

    DECLARATIONS EN 55022 WARNING This equipment has been tested and found to comply with the limits for This is a Class A product. In a domestic environment it may cause radio a Class A digital device, pursuant to part 15 of the FCC Rules. These interference, in which case the user may be required to take adequate limits are designed to provide reasonable protection against harmful measures.
  • Page 36 USER GUIDE ENGLISH Downloaded from ProjectorsManual.com Manuals *601.0068.00*...
