Installing SIM card and battery

A
Remove the battery compartment cover by loosen-
ing the two fastening screws.
B
The SIM card must be installed prior to installing
the battery. SIM card to be slid all the way into the slot.
C
The battery is enclosed with the terminal , and
must be installed before it can be charged.
Normal charge time is 3 hrs.
D
Connect a DC source, e.g. AC/DC adapter. DC input
range is from 10,8VDC to 15,6 VDC. Install the battery
compartment cover again, it locks the SIM card in
position.
The Terminal needs to be ON, to Charge the battery.

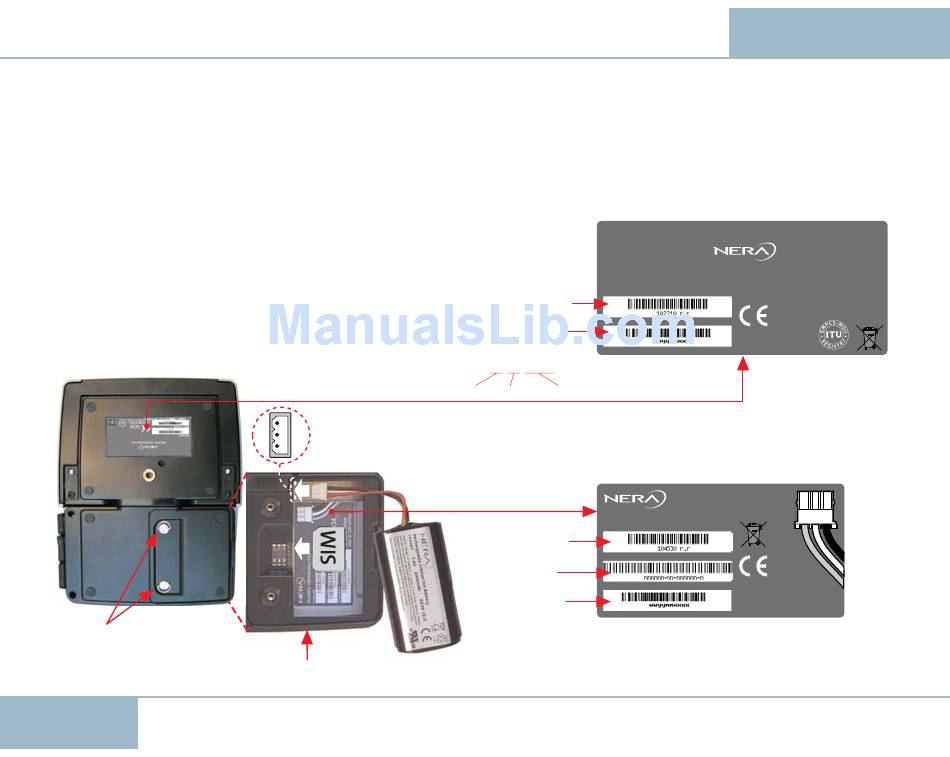

Battery
compartment
Cover fastening
screws.
Tip: use a coin to
loosen.
20 20
Battery
receptacle
Battery compartment Battery
with cover removed w/connector
Equipment labels
One label is attached to the back of the Antenna Unit,
whereas the Interface Unit has a label attached inside
the battery compartment.
Article code
Article number
Serial number
Serial number
Example:
Designed in Norway. Assembled in Singapo re.
03 05 11 0001
year month number
WorldPro 1000 Interface Unit
Article code
Article number
IMEI number
IMEI number
Serial number
Serial number
EXPLORER 100/110
USER GUIDE USER GUIDE
WorldPro 1000Antenna Unit
0434
IC: 6200A-107020
FCC ID:TSF107020
0434
GMPCS
IC: 6200A-107020
FCC ID: TSF107020
