Battery charging

When connecting DC input, the terminal will auto-
matically be powered on and starts charging.
For alternative DC input devices, see Cables and
lengths > Power adapters later in this manual.
DC power connector data:
• Center pin = positive polarity
• Hollow plug: ø2.1 x ø5.5 x 10.0 mm
• 12 VDC - 10% / +30% feed (10.8 VDC - 15.6 VDC)
Power consumption:
The terminal can be operated on battery, and is de-
signed to minimise power consumption.
• Sleep mode: 0.5 W
• Transmission: less than 20 W (depending on satel-
lite signal, devices connected, activity factor)
DC input level:
If the DC power source available exceeds 15.6 volts, the
DC/DC adapter must be used.
Solar panel:
Solar panel can be connected for operation and charg-
ing. The output power should be 20 W or more.
18 18
Charging time:
Charging time will vary depending on how full the
battery is and activities on the terminal when charg-
ing. The battery is typically fully charged within 3 hrs.

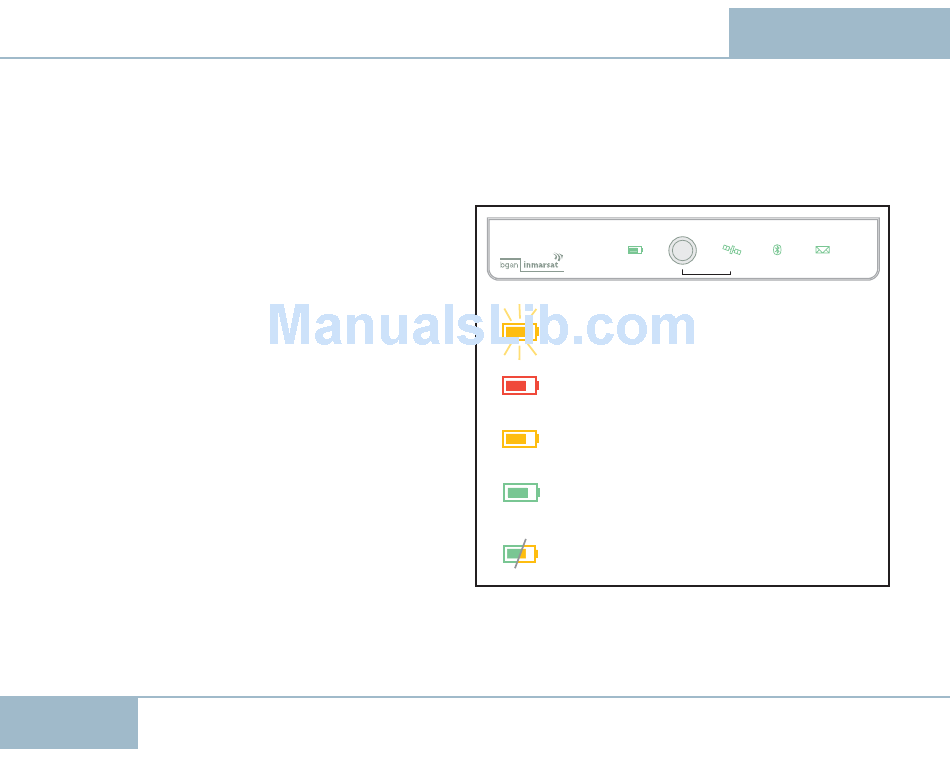

Battery status indications:
Battery
Blinking yellow:
- charging in progress
Steady red:
- less than 10 % remaining battery capacity.
Steady yellow:
- less than 40 % remaining battery capacity.
Steady green:
- more than 40 % full
ON, and all other indicators are OFF:
- sleep mode
