Connecting to the LAN

Using an Ethernet LAN cable, you can connect the Gateway to a desktop computer,
notebook, hub, or switch. The Gateway supports auto-MDI/MDIX, so you can use either a
standard straight-through or crossover Ethernet cable.
1. Connect either end of an Ethernet cable to one of the four Ethernet ports on the rear panel
of the Gateway (see Figure 6).

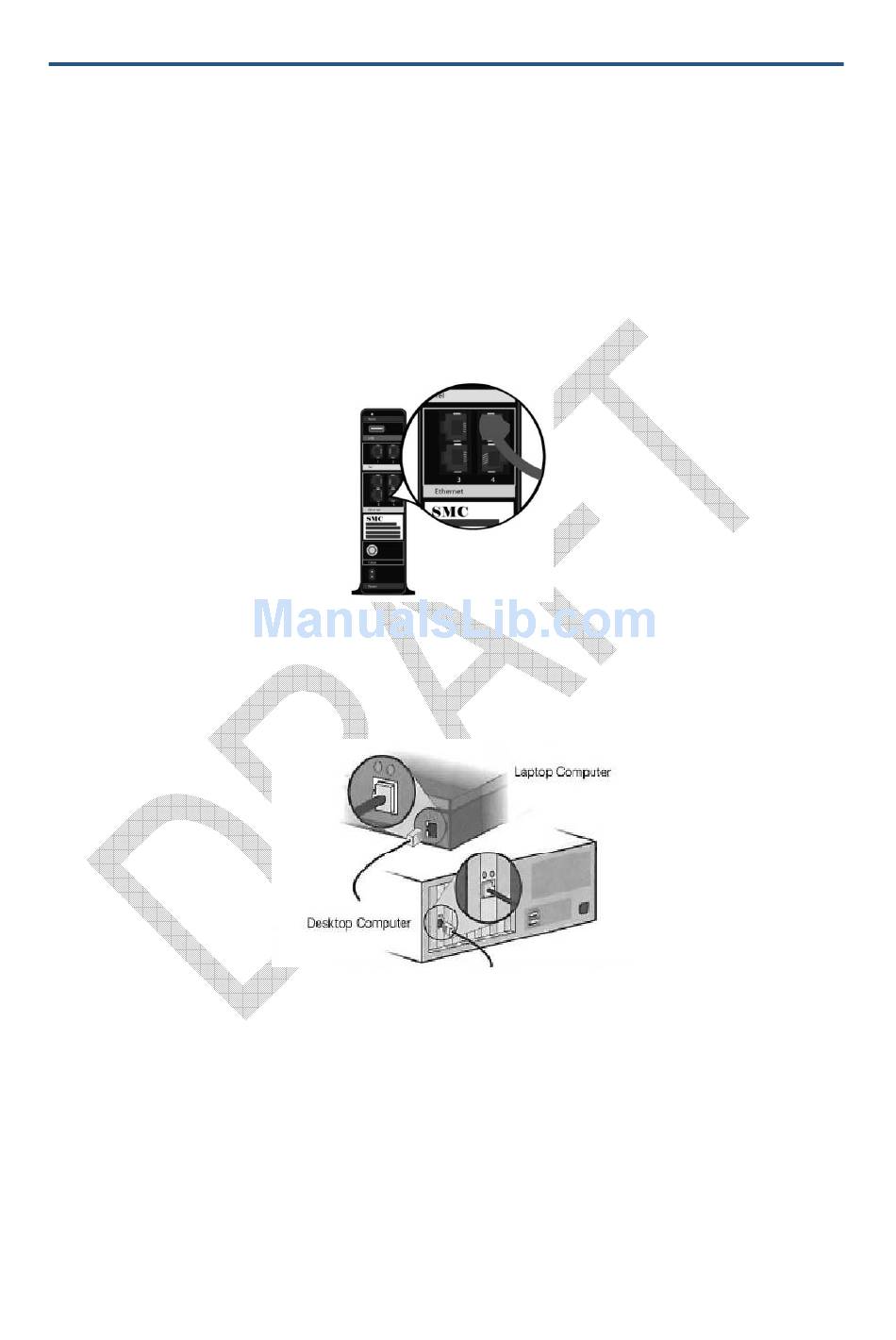

Figure 6. Connecting to an Ethernet Port on the Gateway Rear Panel
2. Connect the other end of the cable to your computer's network-interface card (NIC) or to
another network device (see Figure 7).
Figure 7. Connecting the Gateway to the a Laptop or Desktop Computer
