IMPORTANT

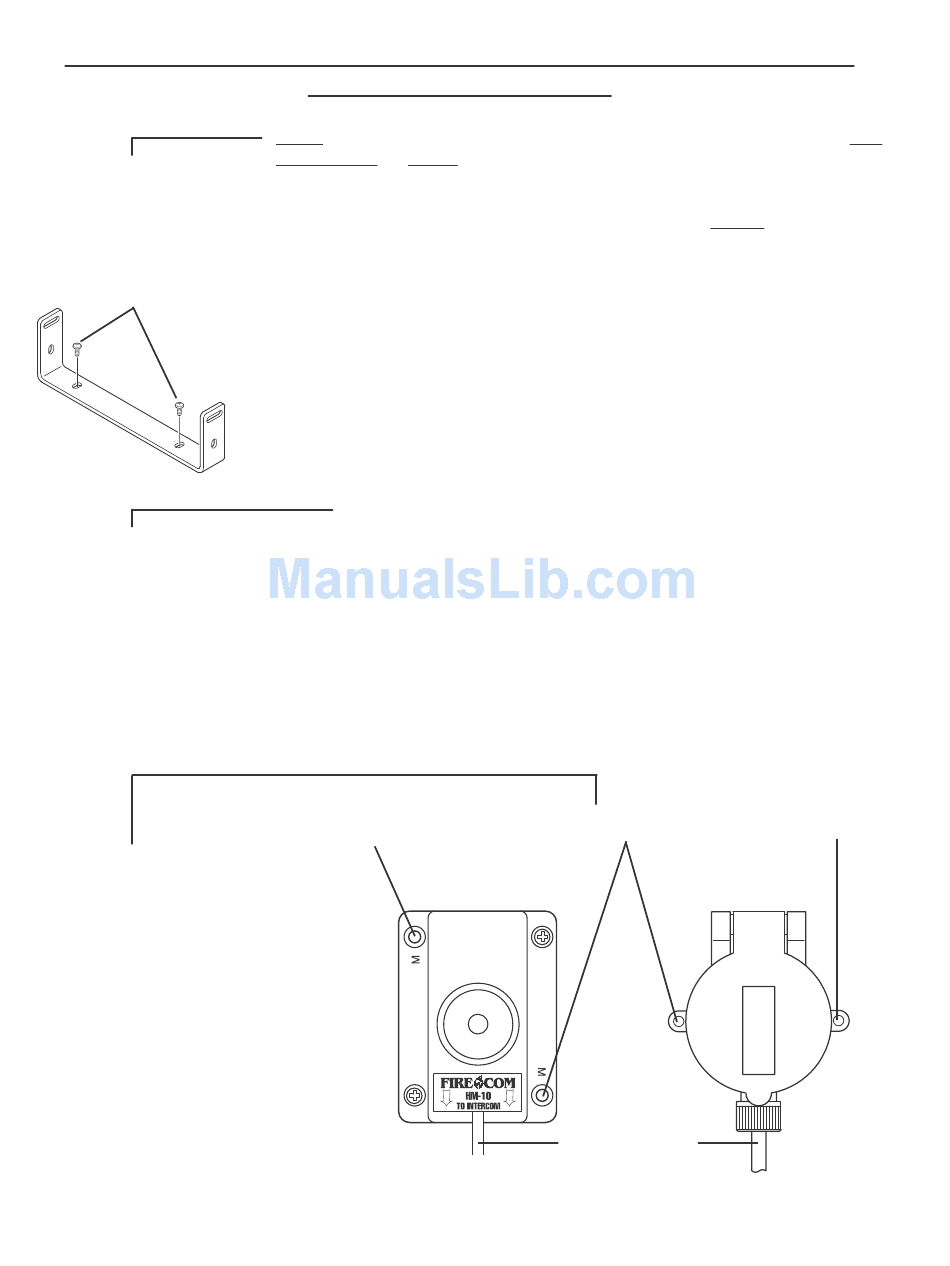

FIGURE 8:
The Mounting Bracket
#8 Sheet Metal Screws
IMPORTANT
FIGURE 9:
The 3000C Headset Modules
10.
I N S T A L L A T I O N
Before installing the Firecom Series 3000C Intercom, make sure you have read AND
UNDERSTOOD the ENTIRE installation procedure. You should also read the sections on
Pre-Installation (page 5) and System Orientation (page 1). If any item in the Installation
Procedure is not understood, or if you have any questions which are not addressed in this
manual, contact your local Firecom Dealer for more information BEFORE you proceed with
the installation.

MOUNTING THE INTERCOM

1. Using the mounting bracket as a template, mark the location of the mounting
holes.
2. Drill 2 holes for the #8 sheet metal screws (supplied).
3. Install the mounting bracket with the sheet metal screws (Figure 8).
4. Remove the 4 screws (2 on each side) closest to the rear of the intercom unit and
mount the intercom on the mounting bracket with the 4 screws.
DO NOT completely tighten the intercom mounting hardware until
the entire installation is complete.

MOUNTING THE HEADSET MODULES

5. Using the Headset Module as a template, mark the location of the mounting holes
(Figure 9).
6. Drill 2 holes for the #6 sheet metal screws (supplied).
7. Position the Headset Module and secure with the sheet metal screws.
Mounting Hole
HM-10 MODULE
Mounting Hole
PP-20 MODULE
CA Cable To Intercom
Mounting Hole
