Intercom Adjustments; Optional Foot Switch - Firecom 3000C Installation & Operation Manual

P R E - I N S T A L L A T I O N

INTERCOM ADJUSTMENTS

After the Intercom System and the radio interface have been properly installed, there are
some adjustments which MUST be performed for proper operation of the system. These
adjustments are outlined on page 14 in this manual.
These adjustments to the intercom MUST be performed by a qualified Radio Technician to
ensure proper operation of the 2-way radio and 3000C Intercom System.
IMPORTANT

OPTIONAL FOOT SWITCH

The optional Foot Switch (FS-1) is used in situations where the user cannot, or does not
wish to, use the headset-mounted PTT. The Foot Switch is plugged into the Daisy-Chain
Jack (Figure 7) on the Headset Module of the person using the Foot Switch, so "daisy-
chaining" off this Headset Module is not possible. When selecting the location of the
Switch, it should be convenient to the user, but in a location where it will not be
accidentally depressed. Routing the CA Cable to that headset module must also be
considered when choosing a location.

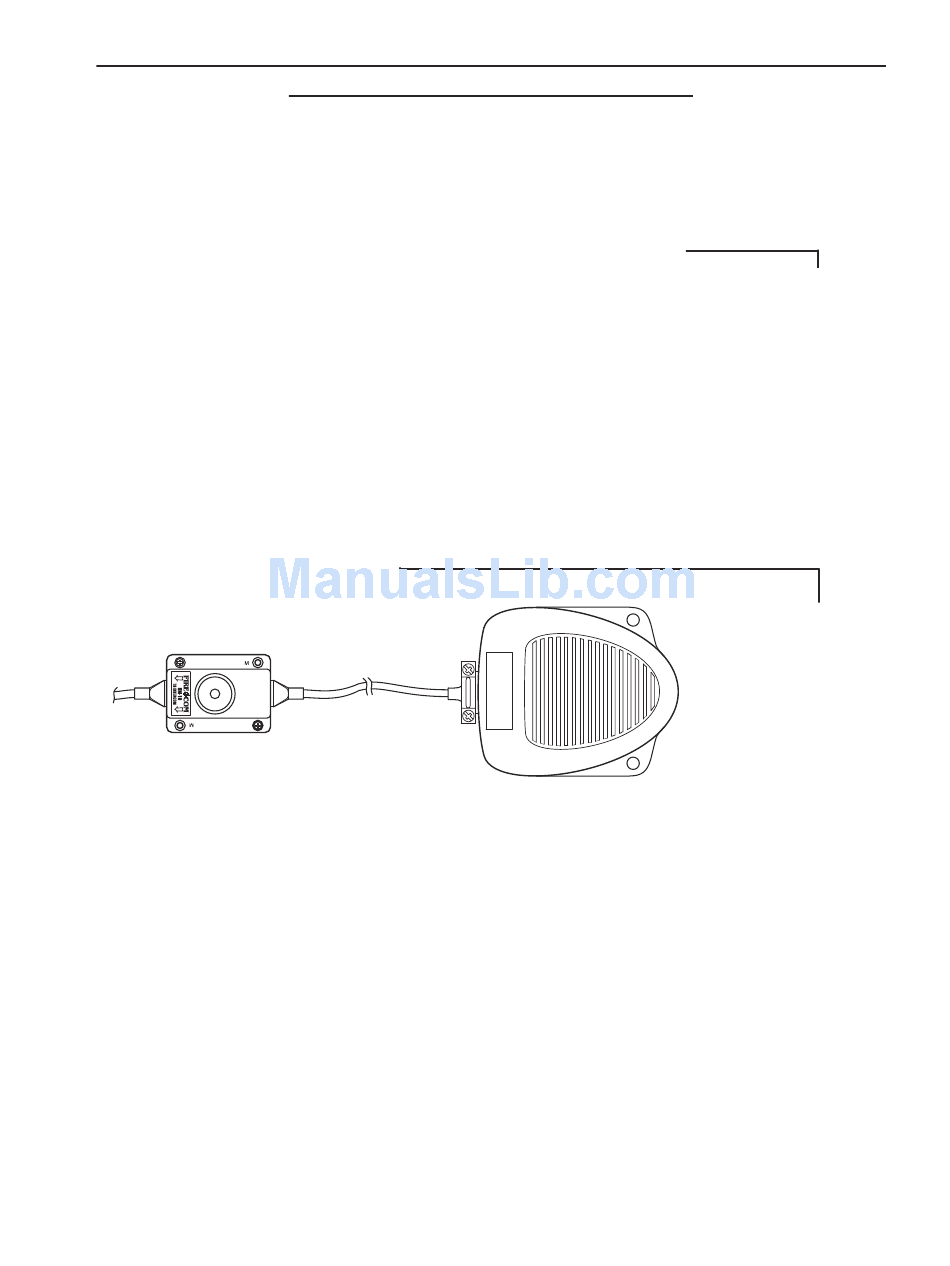

FIGURE 7:
Foot Switch
(Remote PTT)
9.
