Monitor headset with boom microphone
7.4 Free Field
See Installation ► 5

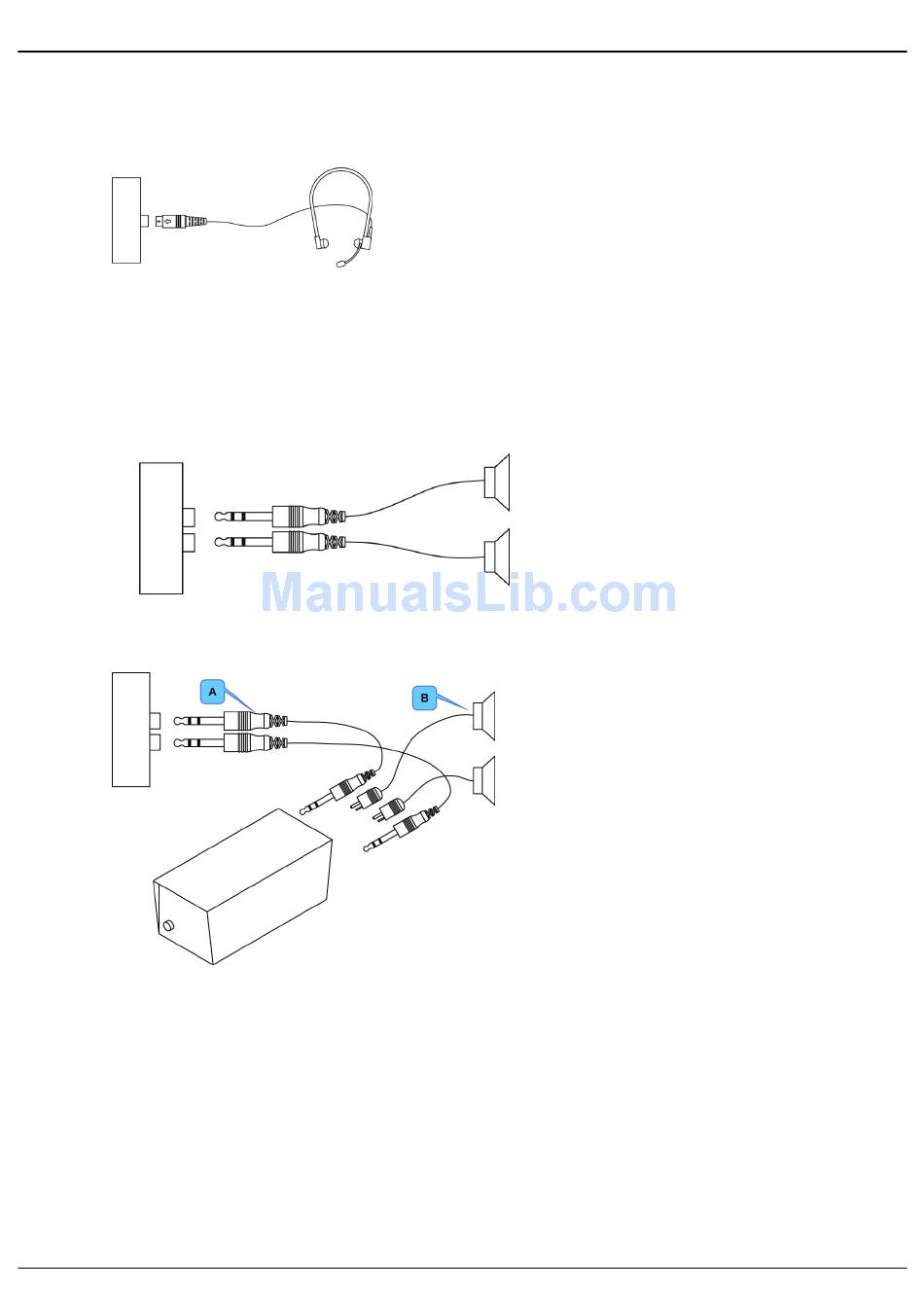

Without Power Amplifier
• Plug the Free Field transducer cables directly into the R-SF and L-SF sockets located in the rear panel of MADSEN Itera
II. The sound is then routed out through sound field speakers.
•
With Power Amplifier
• Plug the Power Amplifier cables into the two center sockets in the rear panel of MADSEN Itera II.
A. Free Field cables
8

Toolbar icons in the Audiometry Module

The icons available in the toolbar depend on the test function that you have selected.
Otometrics - MADSEN Itera II
for an overview of the connection panel.
B. Power Amplifier cables
