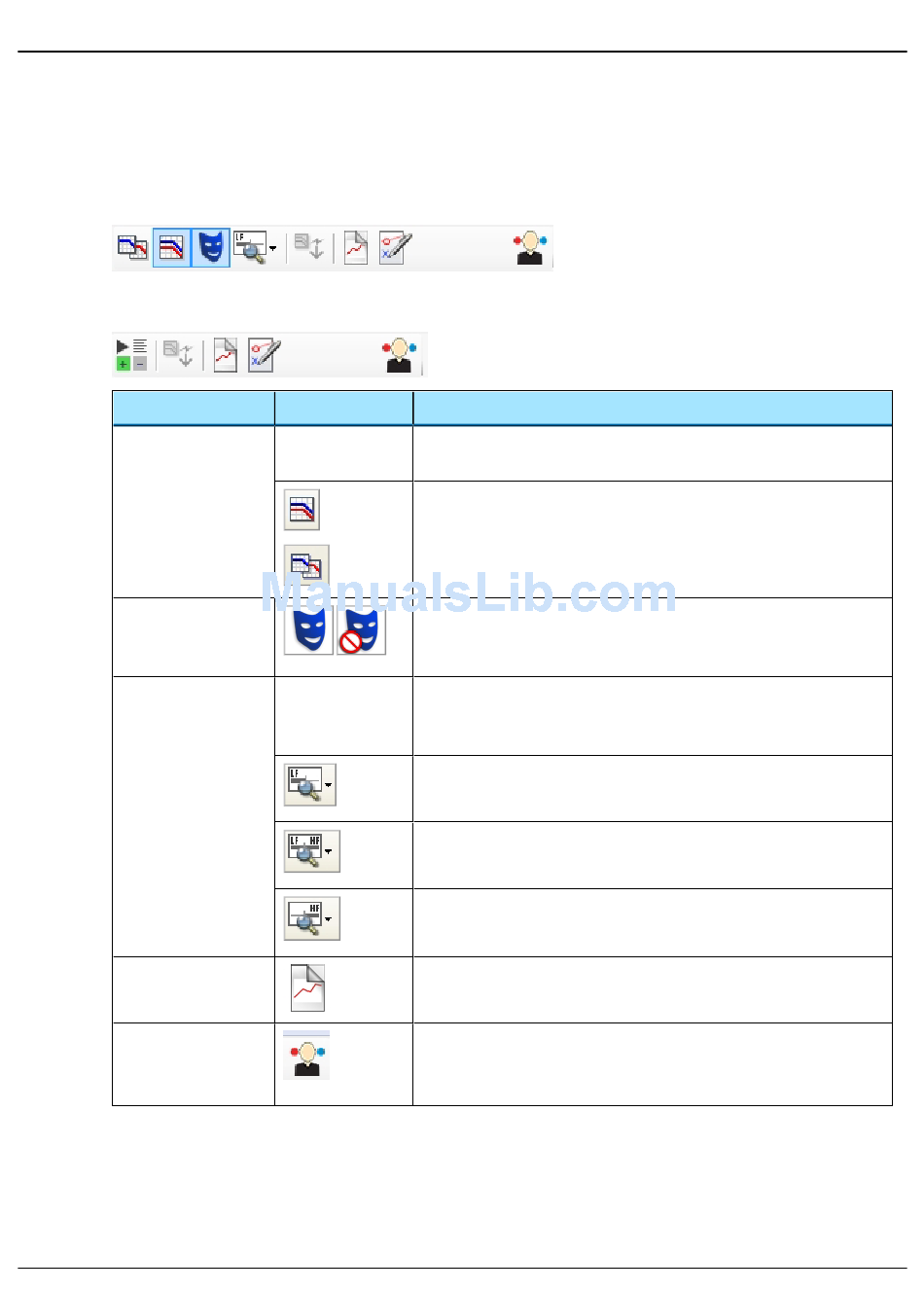

8 Toolbar icons in the Audiometry Module
Audiometry icons
Tone audiometry
Speech audiometry
Menu item
Combined Audiogram
Masking Assistant
Standard / All / High
frequencies
New Audiogram
Select Orientation
10
Icon Description
Click to toggle between viewing both ears in a single audiogram (com-
bined audiogram) or both a left and a right audiogram on your screen.
Combined View
• Click to view both ears in a single audiogram.
Split View
• Click to view separate audiograms for each ear.
Enable or disable the Masking Assistant.
The Masking Assistant causes an unmasked threshold to flash repeatedly
if masking is recommended.
The graph shows up to 20,000 Hz. MADSEN Itera II presents stimulus up
to 12,500 Hz.
• Click to choose between viewing:
Standard Frequencies
Displays the audiogram from 125 to 8000 Hz.
All Frequencies
Displays the audiogram from 125 to 20,000 Hz.
High Frequencies
Displays the audiogram from 8000 to 20,000 Hz.
Select new audiogram. You will be prompted to save or cancel current
data.
Click to select the perspective of the patient's ears as presented on the
screen for graph and table views.
You can also select the location of the stimulus control.
