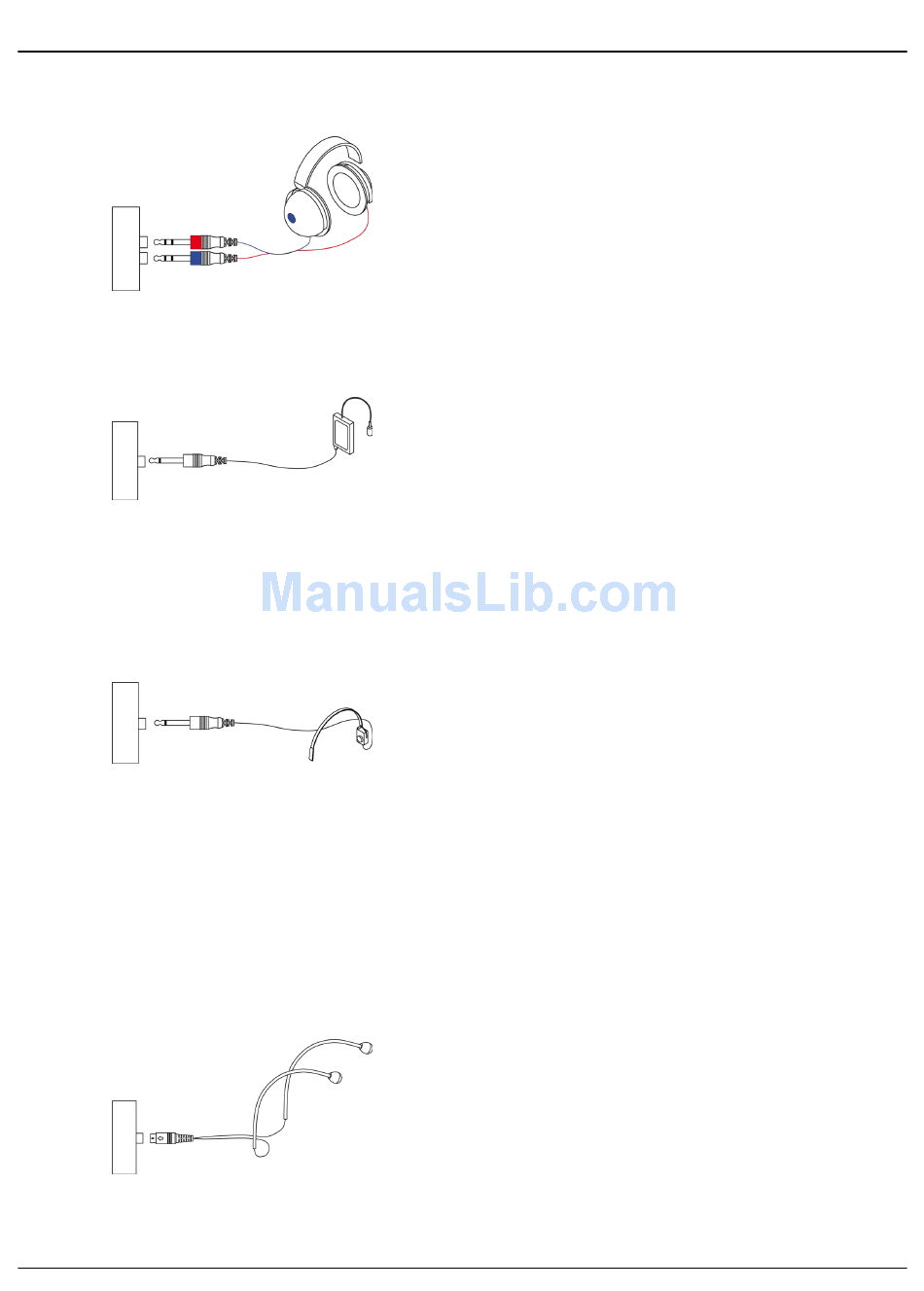

7 Connecting accessories to MADSEN Itera II
Insert phones
• Connect the Insert phones to the right and left AC socket in the rear panel of MADSEN Itera II.
They must be connected according to calibration.
Alternatively, connect them to the right and left SF socket.
• To verify the calibration, press [AC]/[SF] and the display will show the transducer calibrated for that output.
7.2 Bone conduction
Installation ► 5
See
• Connect the bone conduction transducer plug into the BC socket located in the rear panel of MADSEN Itera II.
7.3 External microphone
See Installation ► 5
In speech testing and patient communication there are two possible external microphone solutions:
• Gooseneck, or
• Boom microphone on the monitor headset.
Connect the chosen microphone solution to the "EXTERNAL MIC/MONITOR HEADSET" socket.
Connecting one of these disables the internal talk-over microphone.
Gooseneck
8
for an overview of the connection panel.
for an overview of the connection panel.
