Identification

The SINUMERIK 808D control system is delivered in various packages. Please check the
components according to the tables below.

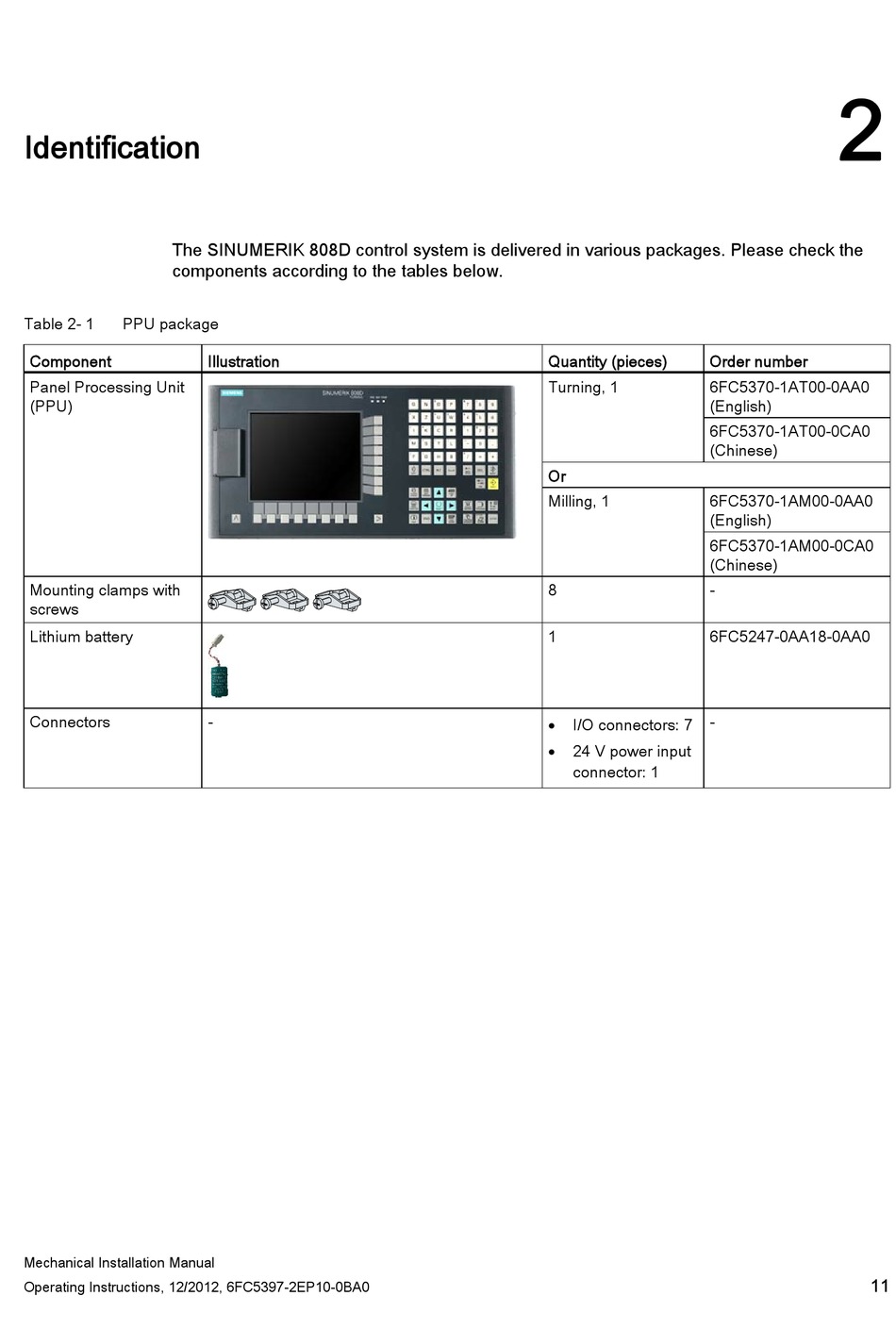

Table 2- 1 PPU package
Component
Panel Processing Unit
(PPU)
Mounting clamps with
screws
Lithium battery
Connectors
Mechanical Installation Manual
Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
Illustration
-
Quantity (pieces) Order number
Turning, 1 6FC5370-1AT00-0AA0
(English)
6FC5370-1AT00-0CA0
(Chinese)
Or
Milling, 1 6FC5370-1AM00-0AA0
(English)
6FC5370-1AM00-0CA0
(Chinese)
8 -
1 6FC5247-0AA18-0AA0
-
I/O connectors: 7

24 V power input

connector: 1
2
11
