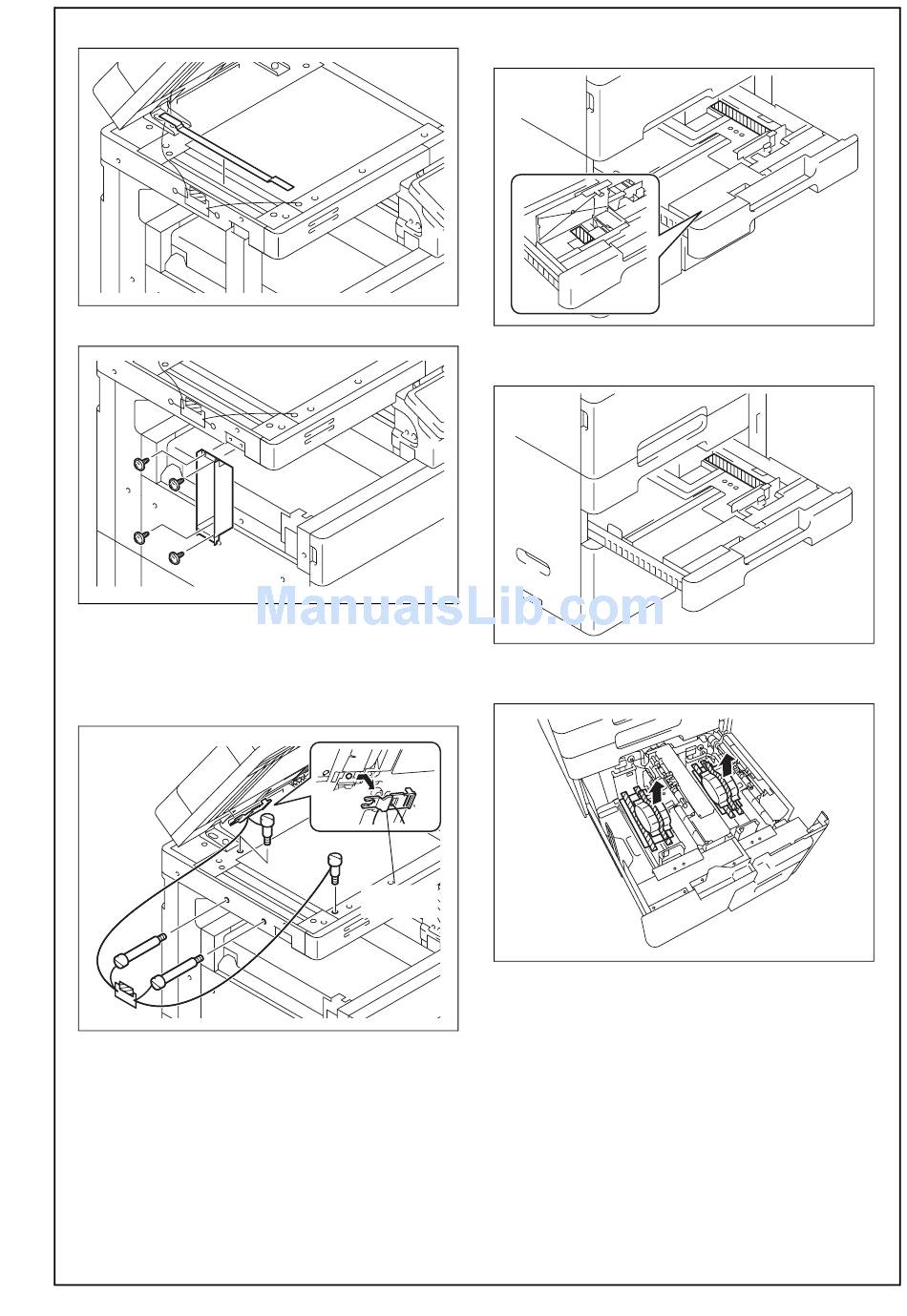

2. Remove the protective material.
3. Remove the reinforcement plate (four screws).
4. Remove the packing bracket.
Note:
Do not loosen or remove the shoulder screw from
the portion on which the packing bracket A is
mounted.
5. Pull the tray 1 out and remove the protective tape
from the tray.
A0P0IXC045DA
6. Pull the tray 2 out and remove the protective tape
from the tray.
A0P0IXC046DA
7. Pull trays 3 and 4 out and remove the desiccant
and protective sheet.
Packing
bracket A
A0P0IXC047DA
E-5
A0P0IXC048DA
A0P0IXC049DA
A0P0IXC022DB
