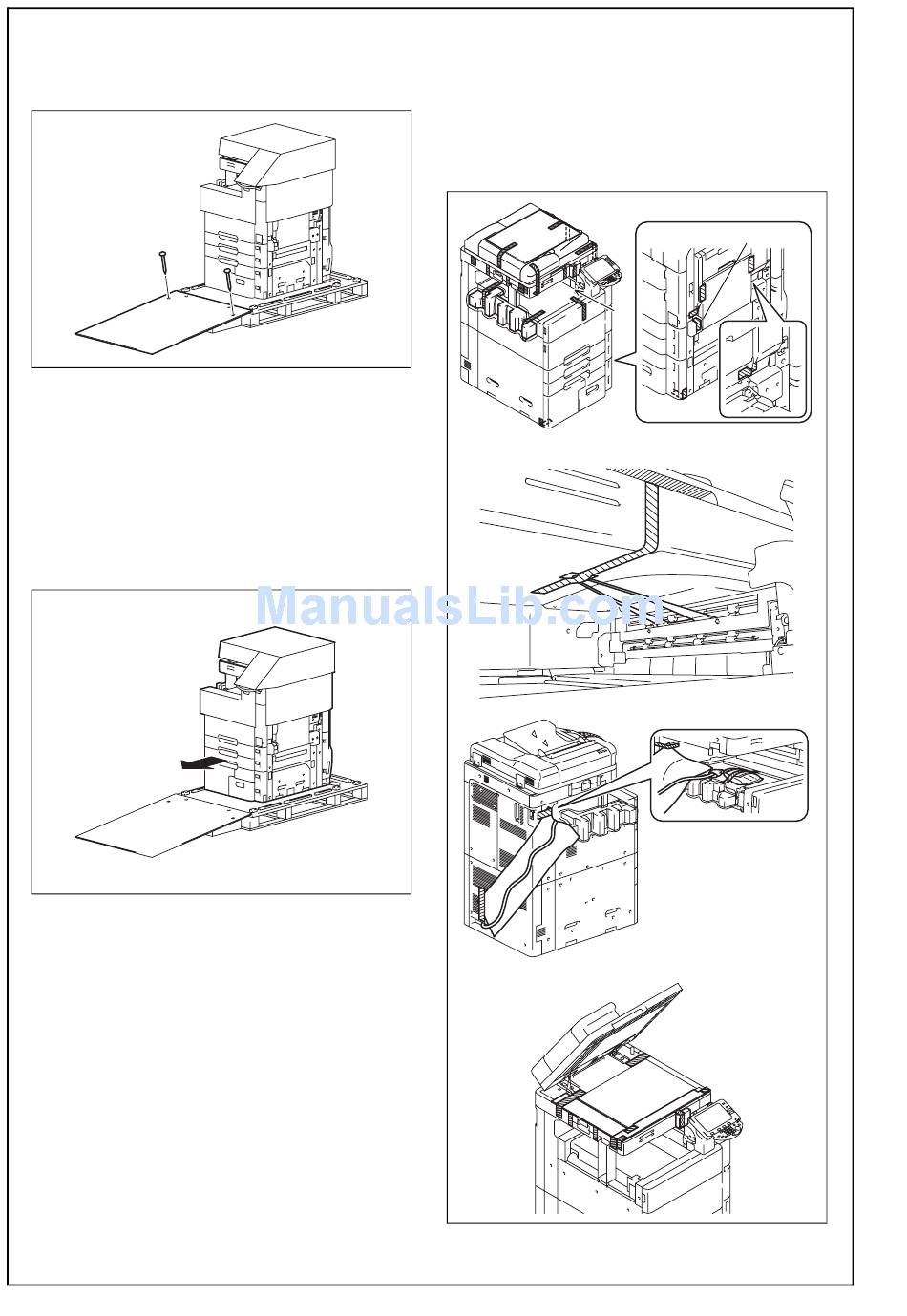

6. Position the slope as illustrated and drive nails in
to fix the slope in position.
Note:
Insert the nails in the outer holes.
7. Holding onto the front cover and the back panel
of the machine, slide the machine down along the
slope.
Note:
Machine mass: 207 kg (456-1/4 lb)
• Perform this step on a level, stable site and
assign an adequate number of persons.
• When sliding the machine down, do not hold
onto the IR portion.
• Do not insert your leg under the slope.
VI. Removing protective tape, packing and
other shipping materials
1. Remove the protective tape and protective mate-
rial.
Note:
After removing protective tape B, be sure to lock
the lever.
