21. Press the Start key.
22. Check that "Adjustment Result" is "OK" and then
touch "SET."
23. Touch "Main Scanning (Front)."

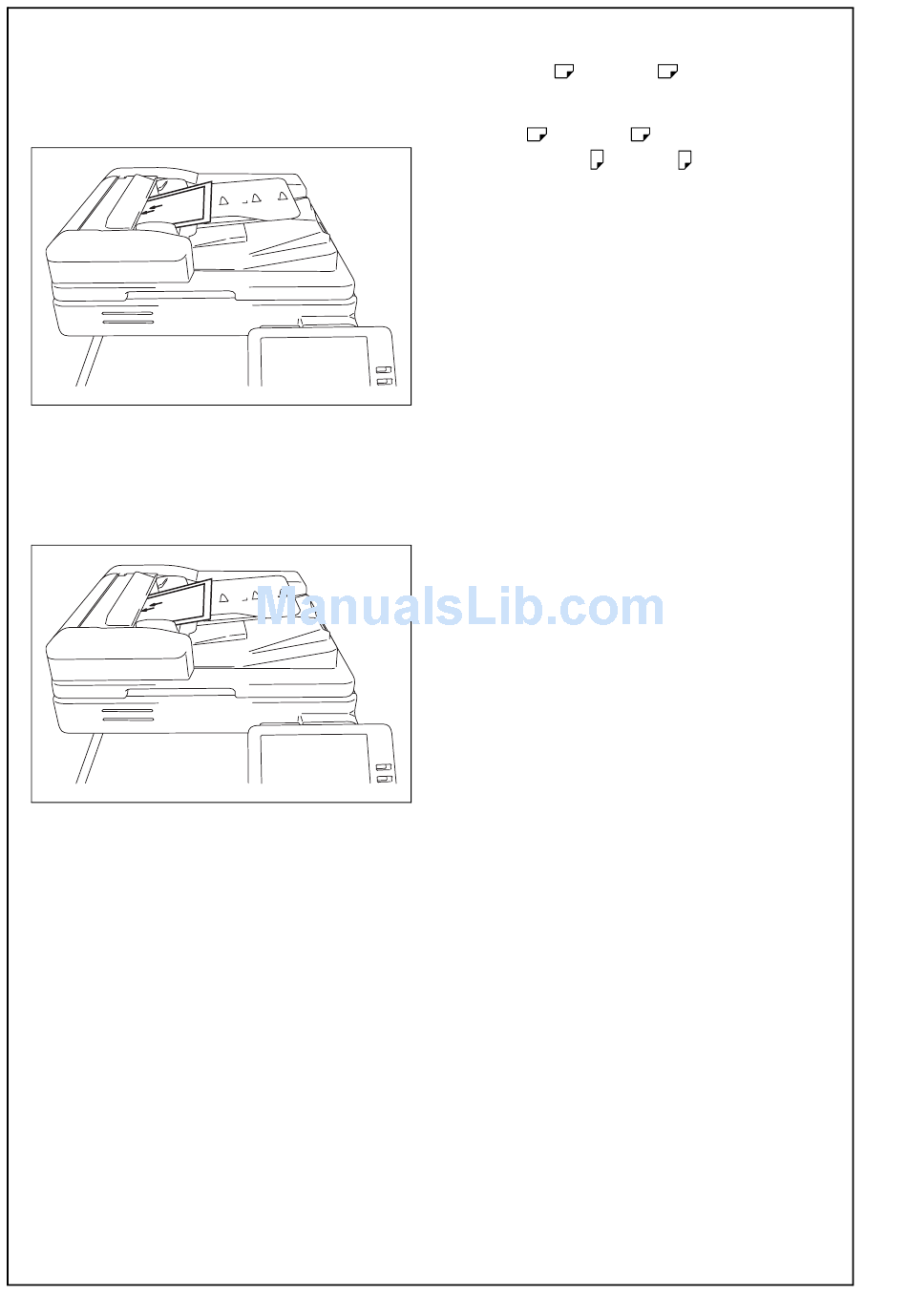

24. Place the chart in the document feeding tray
(with the side having an arrow facing up).
25. Press the Start key.
26. Check that "Adjustment Result" is "OK" and then
touch "SET."
27. Touch "Main Scanning (Back)."
28. Place the chart in the document feeding tray
(with the side having an arrow facing up).
29. Press the Start key.
30. Check that "Adjustment Result" is "OK" and then
touch "SET."
31. Touch "END."
32. Touch "Exit" on the Service Mode screen.
33. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
34. When all the adjustments are completed, per-
form the steps specified in "XIII. Checking the
image position and magnification" to check the
image position and magnification once again.
XVI. Setting gradation adjust
1. Set that A3
the tray.
Note:
If the A3
available, use A4
2. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
3. Touch "Imaging Process Adjustment."
4. Touch "Gradation Adjust."
5. Touch "Stabilizer" and press the start key.
* When the start key lights up blue, go to step 6.
Note:
When a maintenance call occurs, see the service
manual.
A01HIXC011DC
A01HIXC011DC
E-18
or Ledger paper is loaded in
or Ledger paper is not readily
or Letter paper.
