ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Extension Leg Screw (108)–2 Handrail Screw (53)–2
WARNING:
Do not plug in the power
cord until the treadmill is completely assembled.

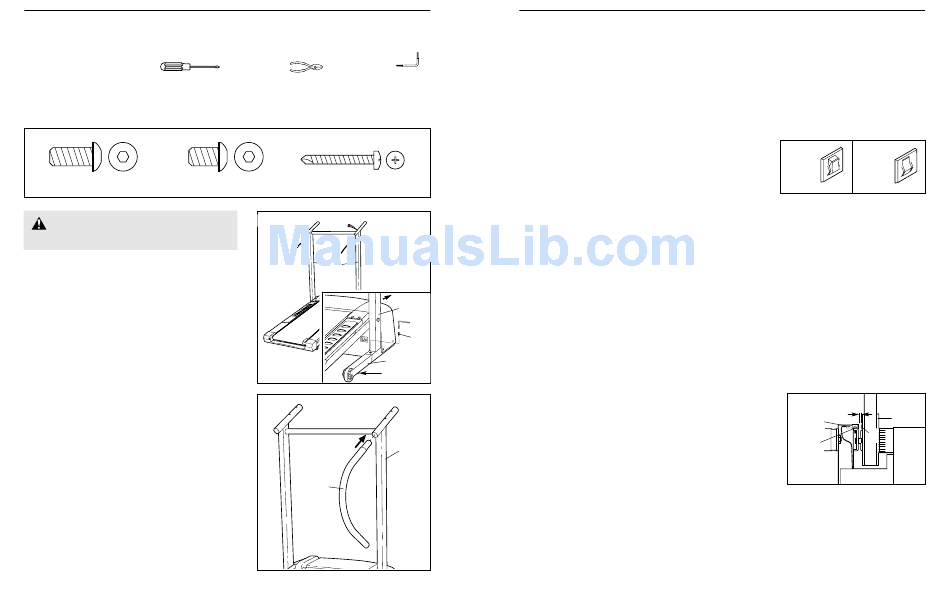

1. Cut the plastic tie off the side of the treadmill.
With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (108). Be
sure to push on the head of the Extension Leg
Screw whilst tightening it.
Attach the other Extension Leg (34) in the same way.
2. Insert a Handrail (1) into the tube at the upper end of the
right Upright (11). Have a second person hold the
Handrail whilst you complete step 3.
and wire cutters .
Long Screw/Latch Screw (3)–6
1
11
11
34
40
2
11
1
6

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet (see page 9). If an extension
cord is needed, use only a 3-conductor, 1 mm
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. UNPLUG THE POWER CORD. Check the batteries in the console. If the batteries need to be re-
108
placed, see assembly step 8 on page 8. Most problems are the result of drained batteries.
b. Remove the key from the console and UNPLUG THE POWER CORD. Remove the screws from
the hood. Carefully remove the hood.
Locate the Reed Switch (44) and the Magnet (45) on
the left side of the Pulley (50). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 3 mm (1/8 in.). If necessary, loosen
the Screw (33) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 1mm
than 1.5 m (5 ft.).
2 (14-gauge) cord that is no longer than 1.5 m (5 ft.).
c
Tripped Reset
b
3 mm
50
44
45
33
Top
View
2 (14-gauge) cord that is no longer
