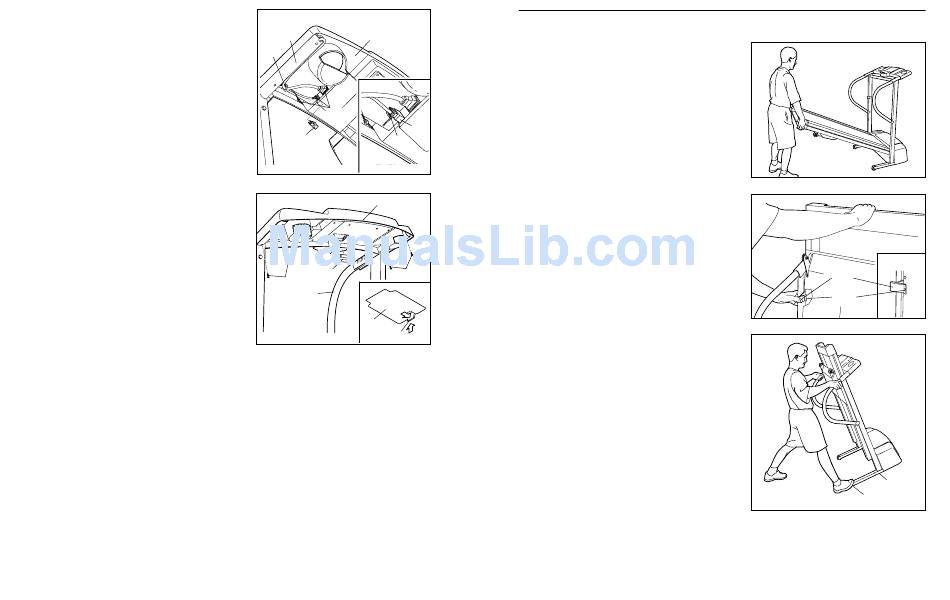

7. Place the Console Base (46) on the Handrails (1) (only the
Right Handrail is shown). Pull out just enough of the three
Wires (21) to connect them to the receptacles in the
Console Base. Make a loop with the indicated plastic tie
and insert the end through the tie holder on the bottom of
the Console Base. Locate the Wire that has a two-pin con-
nector and a three-pin connector on the end. Plug the con-
nectors into the matching receptacles in the Console
Base. If the connectors do not fit easily, rotate them
and then plug them in. Slide the Wire Cover (66) onto the
connectors so that they are completely covered. Next, plug
the large Wire into the matching receptacle on the
Console Base. Then, plug the small wire into the wire on
the Console Base. WARNING: Do not connect or dis-
connect the Wires whilst the treadmill power cord is
plugged in. Tighten the plastic tie and cut off the end.
See the inset drawing. Loop one of the included plastic ties
around the Wire Cover (66) so that the plastic tie is in the
two notches in the Wire Cover. Tighten the plastic tie and cut
off the end.
8. Thread four Long Screws (3) into the Handrails (1) and the
Console Base (46). Make sure that the wires in the Right
Handrail are clear of the screw holes. After all four Long
Screws have been started, tighten them until they are
snug; do not overtighten them.
The console requires three 1.5 V batteries. Alkaline bat-
teries are recommended. To install batteries, first touch
the Uprights (11) to discharge any static. Next, open the
Battery Cover (4) as shown. Insert three batteries into the
battery compartment, making sure that the negative (–)
ends of the batteries are touching the springs in the
battery compartment. Close the Battery Cover, push up
on the tab, and then push the tab forward as shown in the
inset drawing. Make sure that the tab locks into place.
Remove the plastic ties used in step 6.
9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 16). To protect the
floor or carpet, place a mat under the treadmill.
7
1
46
Tie
21
66
Tie
8
46
4
Batteries
3
3
1
4
Tab
8

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord.
CAUTION: You must be able to safely lift 20 kg (45 lbs.)
in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
66
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. It may be helpful to push out on
the handrail as you raise the treadmill. Make sure that
the storage latch is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 30° C (85° F).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the stor-
age latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired loca-
tion. To reduce the risk of injury, use extreme caution
whilst moving the treadmill. Do not move the tread-
mill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
1
2
Engaged
Storage
Latch
Catch
Base
Front Wheels
