ALIBI ALI-CD1720PVF Quick Installation And User Manual

ALI-CD1720PVF HD-TVI Outdoor
Infrared Dome Camera
Quick Installation and User Guide
The ALI-CD1720PVF camera feature a 1/3" CMOS image sensor that delivers HD-TVI high-definition video
resolution over RG59 coax or any standard analog CCTV cabling. These HD video camera is ideal for security
applications that require a high level of detail, such as facial recognition or license plate identification.
Features
CMOS image sensor
•
HD-TVI technology produces 720p HD video for sharp, detailed images
•
2.8 ~ 12 mm vari-focal lens with viewing angle of 78° ~ 28°
•
Built-in IR LEDs enables the camera to see up to 131 feet in the dark
•
Smart IR technology reduces over-exposure of the IR LEDs at the center of the image
•
True day/night (ICR) captures sharp, clear images in low light and at night
•
OSD (On-Screen Display) controls for customizing the camera settings for the installation venue
•
-4 °F ~ 140 °F temperature operating range
•
IP66 weather-rated housing, vandal proof IK10 rating
•
Camera
base
housing
Captive
screw (3)
Camera
dome
cover
assembly

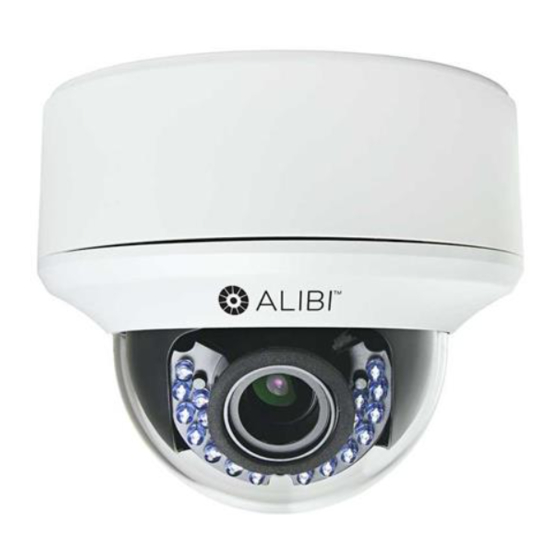

ALI-CD1720PVF camera
ALI-CD1720PVF Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting screws and wall
•
inserts (four each)
Security L-wrench
•
Video test cable
•
Drill template
•
This installation guide
•
www.observint.com
1
HD-TVI video BNC
Connector
CVBS video BNC
Power
Connector
Connector
Video Test
cable

TOOLS YOU NEED

To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cables
•
CCTV video setup monitor (optional)
•
Black
liner
Camera
module
assembly
OSD
joystick
Hole for
cover
dome
screw (3)
Camera
module
mounting
screw (3)
Camera
base
housing

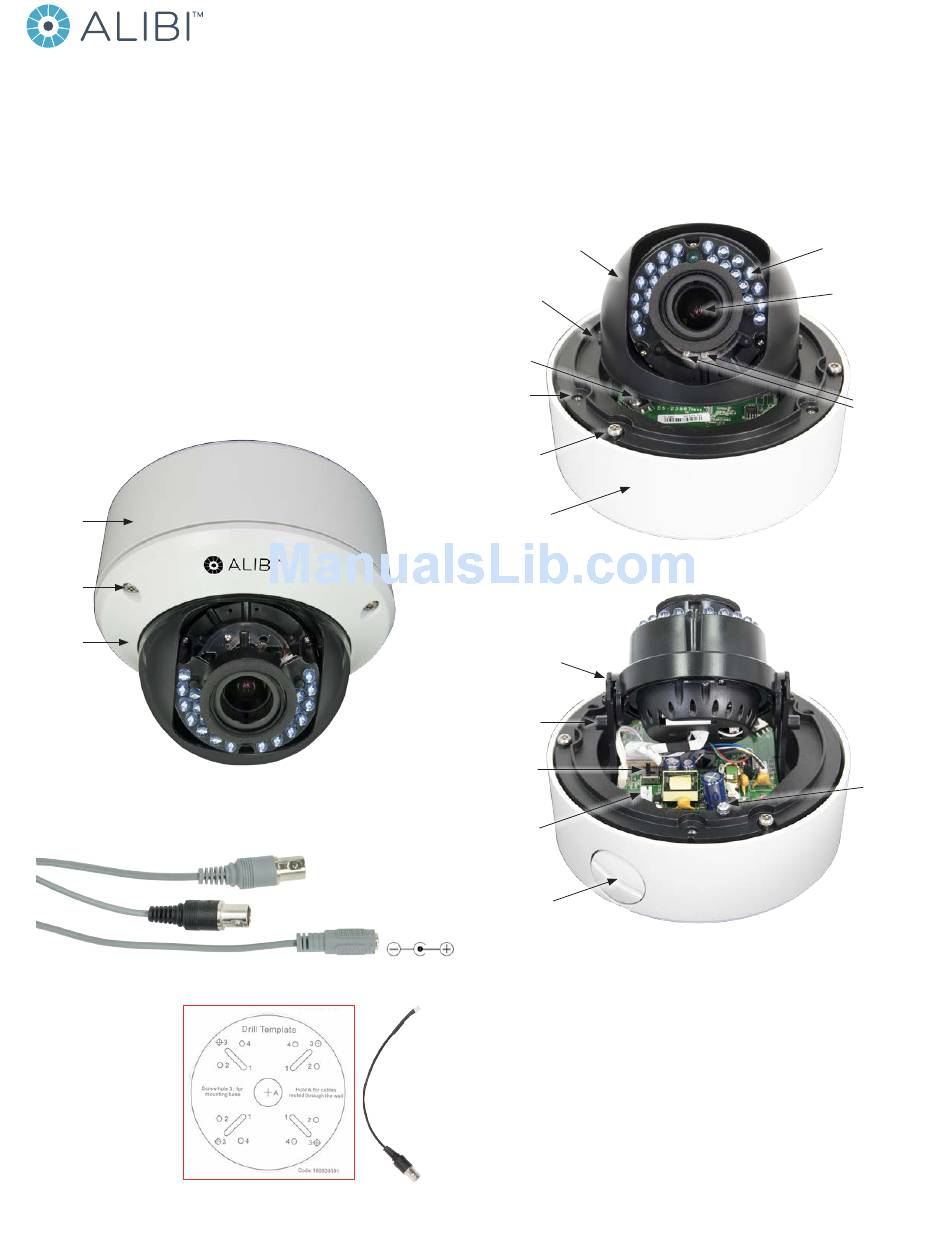

Camera front view (without dome cover)
Camera
module
gimbal
Gimbal
elevation
pivot
point
HD-TVI
/ CVBS
switch)
Plug for
video test
cable
Threaded
side access
port for
conduit
Camera back view (without dome cover and liner)
Step 1. Install the camera
The camera includes hardware to install it directly to a mounting surface. You can also easily install the
camera onto a single- or double-gang electrical box. Camera drop cables can be routed through the
conduit port on the side of the camera base housing, through the mounting surface or into an electrical
box, if used.
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
IR LED array
Vari-focal lens
(2.8 ~ 12 mm)
Focus - zoom
adjustments
Screw
for dome
cover
assembly
tether
ALI-CD1720PVF_CQ
160225
